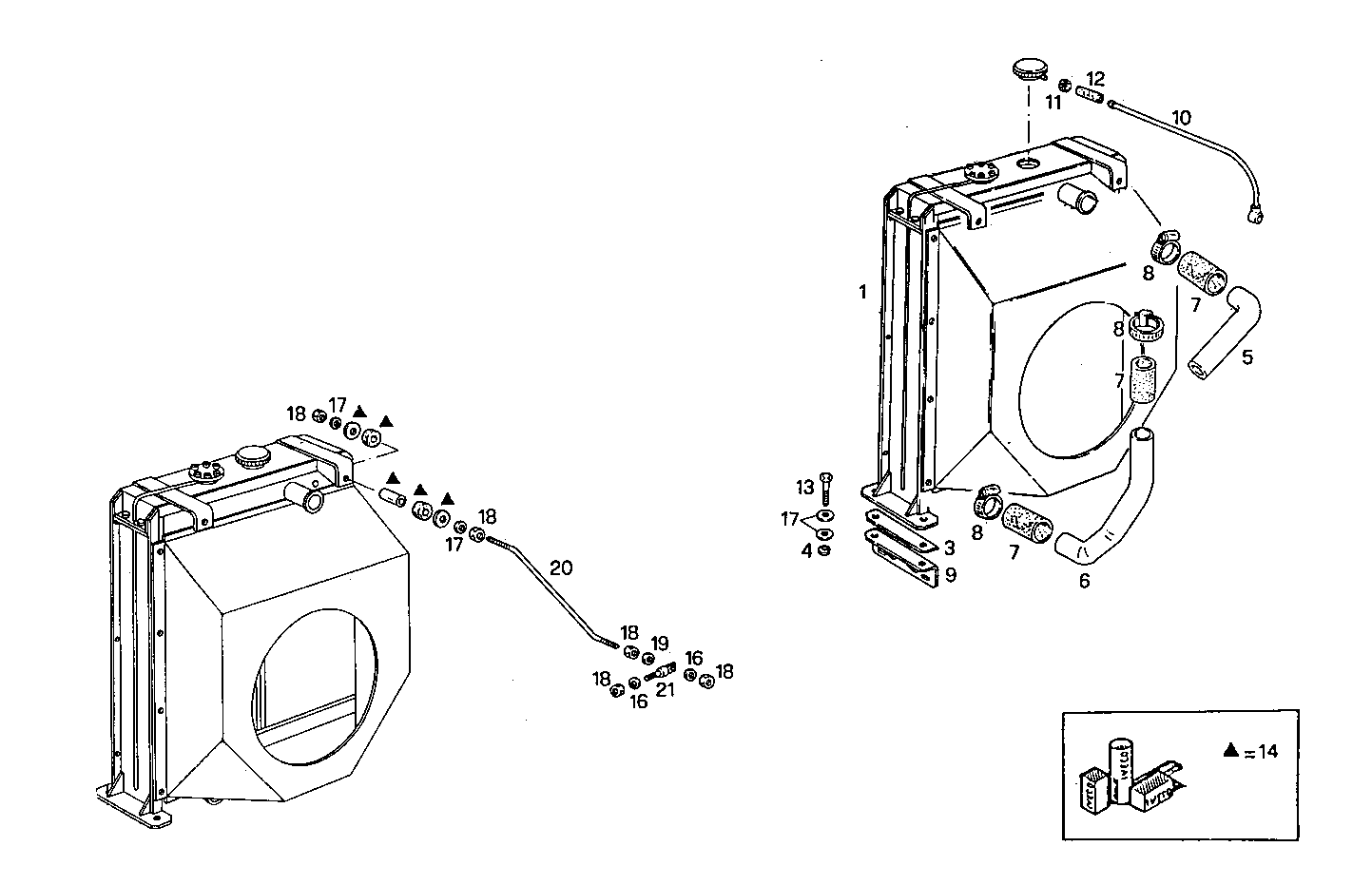

| Item |
Part number |
Description |
|
1 |
8009969 |
WATER RADIATOR ASSY |
|
3 |
8010041 |
SPACING BAR SP=7 MM |
|
4 |
17038921 |
NUT M16X2 |
|
5 |
8106606 |
WATER PIPE |
|
6 |
8107755 |
WATER PIPE |
|
7 |
10143486 |
RUBBER SLEEVE |
|
8 |
12174890 |
CLIP Ø62-82 MM |
|
9 |
8010020 |
RETAINER |
|
10 |
8014190 |
WATER PIPE |
|
11 |
18087991 |
CLIP Ø8/16 MM |
|
12 |
4927825 |
WATER HOSE |
|
13 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
14 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
16 |
11190779 |
SPRING WASHER Ø12X24 SP=2,8 MM |
|
17 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
18 |
16101511 |
HEXAGON NUT M12X1,25 |
|
19 |
14496701 |
WASHER Ø13X24 MM |
|
20 |
8106570 |
TIE ROD |
|
21 |
8108056 |
PIN |
