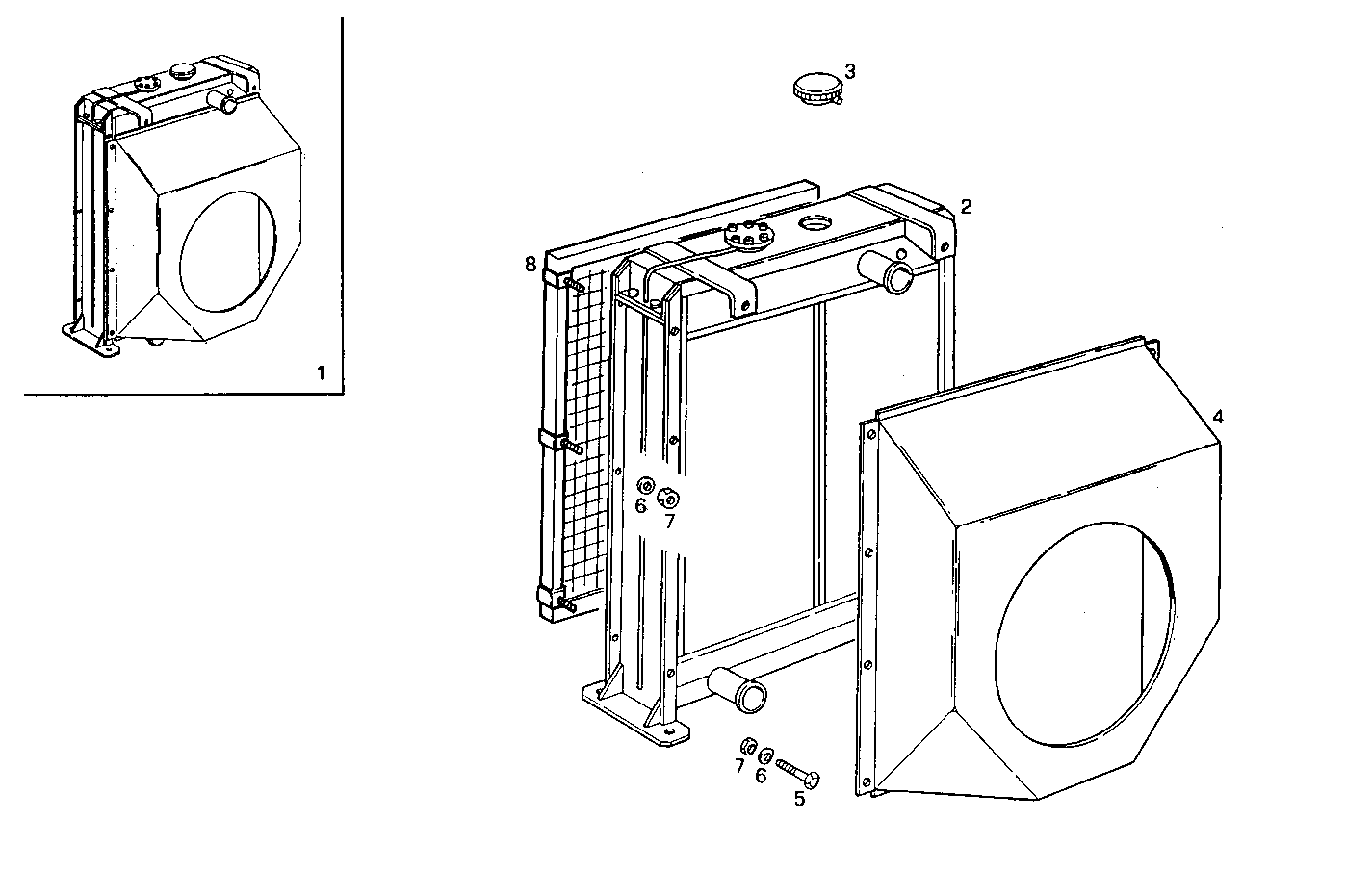

T2240002 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8106578 | WATER RADIATOR |
| 2 | 8011209 | WATER RADIATOR |
| 3 | 8017558 | RADIATOR PLUG |
| 4 | 8011210 | AIR HOOD |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4932919 | PROTECTION |
