PU8281SI10.00A103

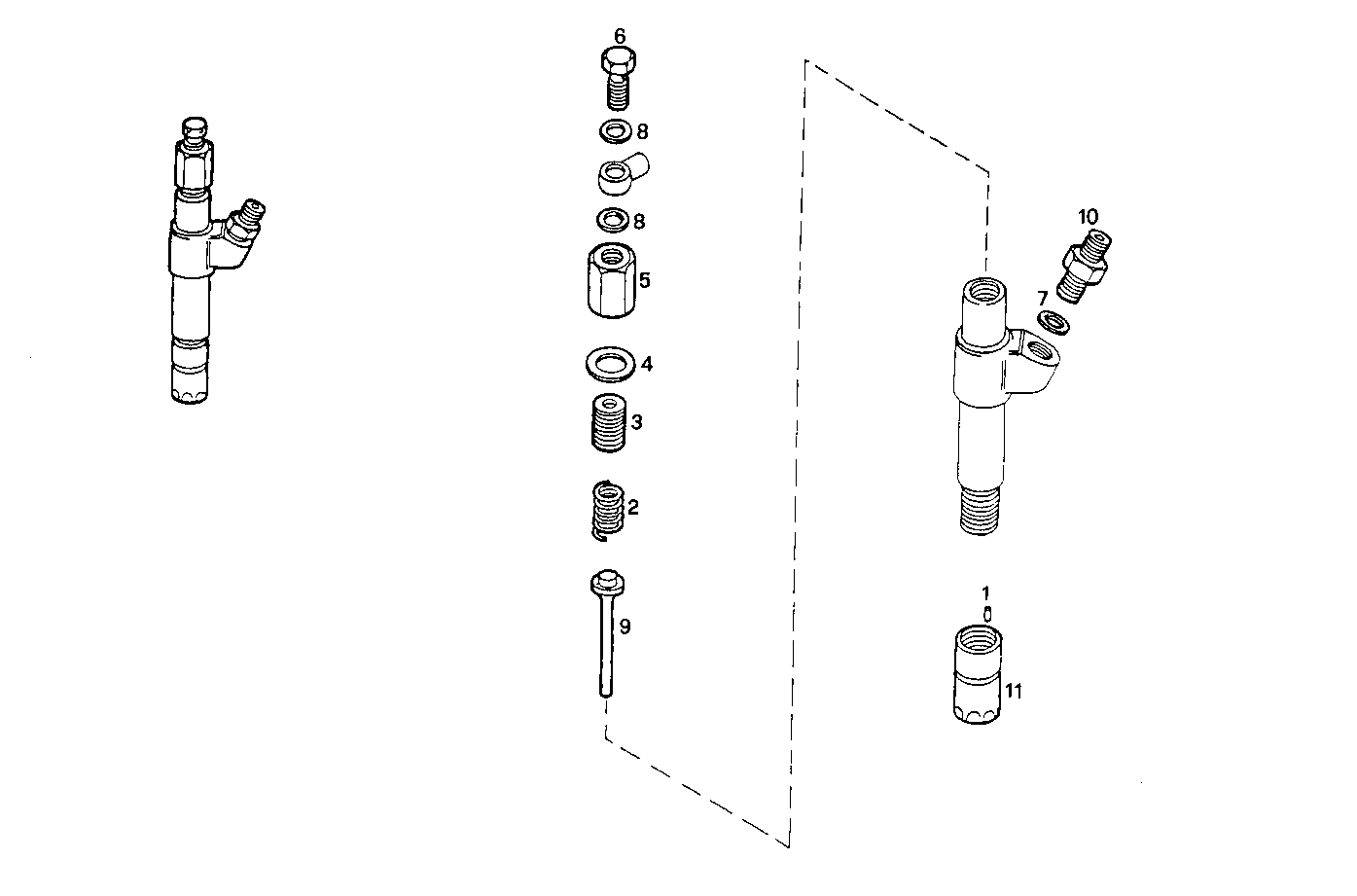

1430.019 NOZZLE HOLDER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 772036 | DOWEL PIN |
| 2 | 775708 | SPRING |
| 3 | 772039 | FASTENING RING |
| 4 | 772040 | GASKET |
| 5 | 772090 | NUT |
| 6 | 772044 | SCREW CONNECTOR |
| 7 | 772047 | GASKET |
| 8 | 772052 | GASKET |
| 9 | 772062 | SHIFT ROD |
| 10 | 772091 | THREADED UNION |
| 11 | 773813 | FASTENING RING |
