PU8281SI10.00A103

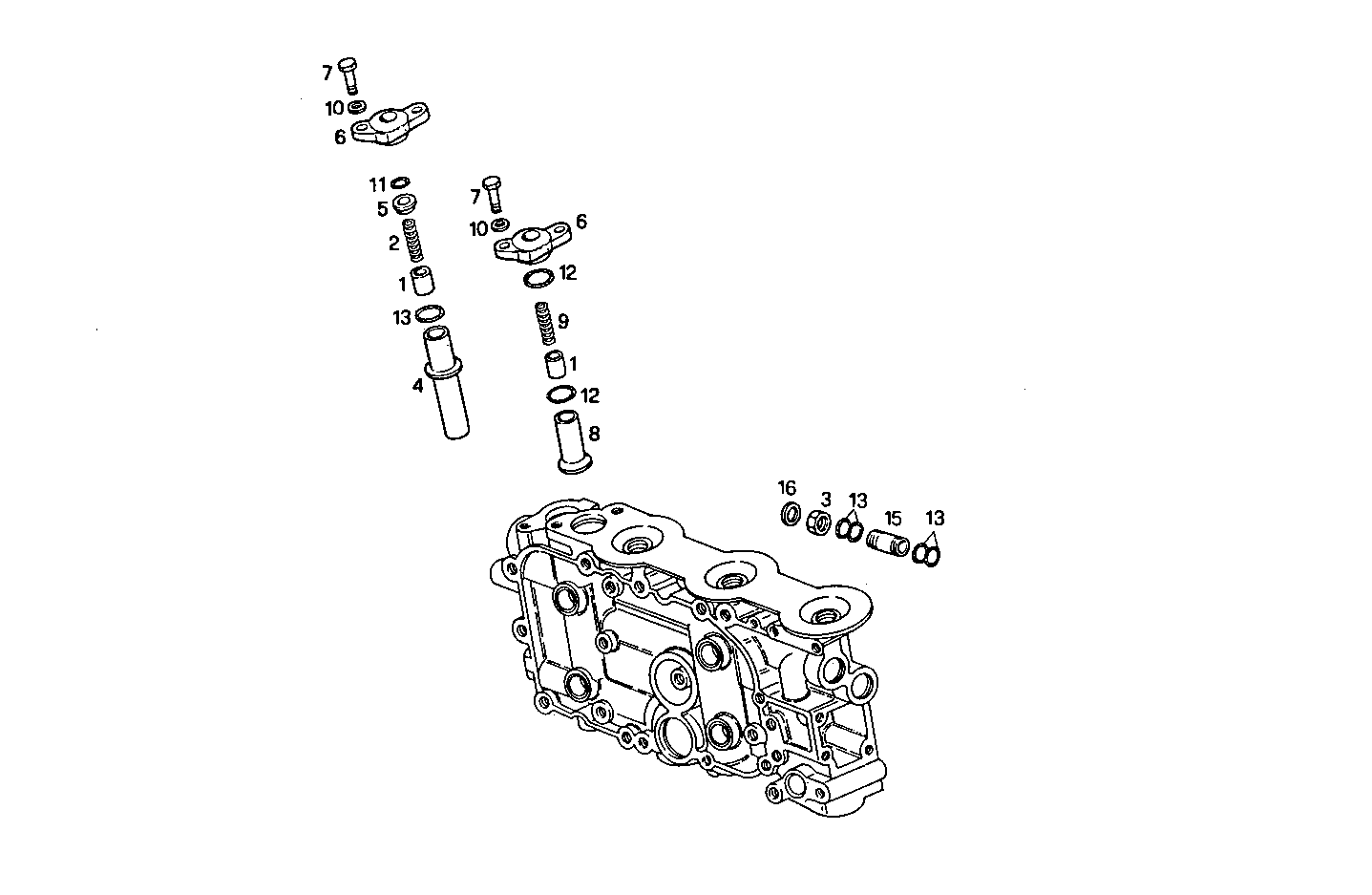

3030.018 OIL PRESSURE VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4672842 | VALVE |
| 2 | 4677094 | SPRING |
| 3 | 4720990 | THREADED UNION |
| 4 | 4720125 | VALVE HOUSING |
| 5 | 4720126 | BUSH |
| 6 | 4720127 | COVER |
| 7 | 16043621 | HEXAGON BOLT M8X25 MM |
| 8 | 4720128 | CAP |
| 9 | 4746952 | SPRING |
| 10 | 11198171 | SPRING WASHER Ø8,4 MM |
| 11 | 11057576 | CIRCLIP Ø18,3 MM |
| 12 | 17283181 | O-RING Ø37,77 MM SP=2,62 MM |
| 13 | 17282981 | O-RING 2,62x34,59 |
| 15 | 4720989 | CONNECTOR SLEEVE |
| 16 | 10265360 | SEAL GASKET Ø40X48 MM SP=1,5 MM |
