PU8281SI10.00A103

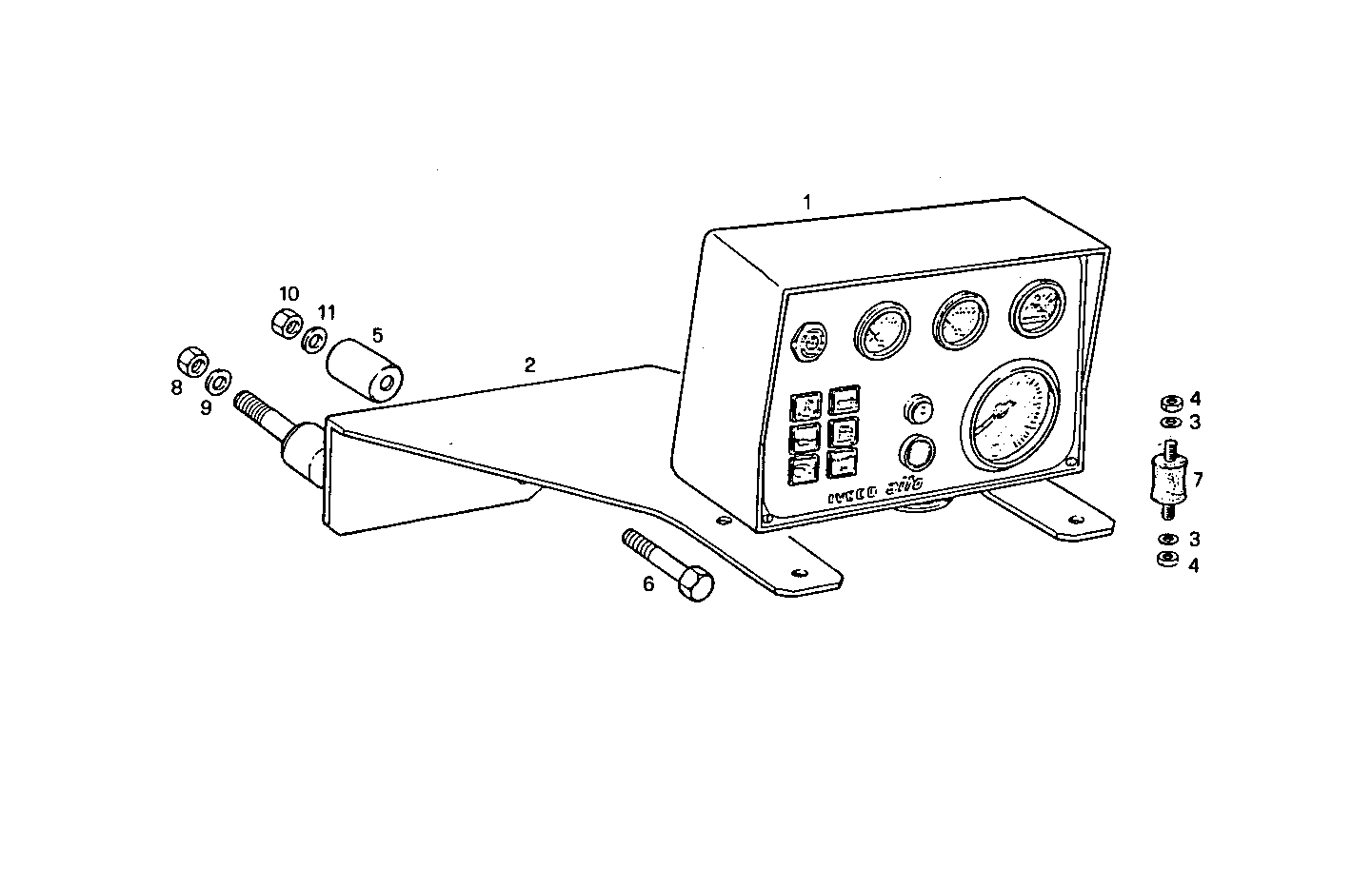

A38680025 ELECTRIC INSTRUMENTS PANEL - VEGLIA 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8005746 | INSTRUMENTS BOARD ASSY |
| 2 | 8109963 | RETAINER |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 8101243 | SPACING BAR |
| 6 | 15971821 | SCREW M10X1,25X100 |
| 7 | 4910949 | RUBBER LUG |
| 8 | 17038621 | NUT M12 |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
