PU8281SRI10.00A102

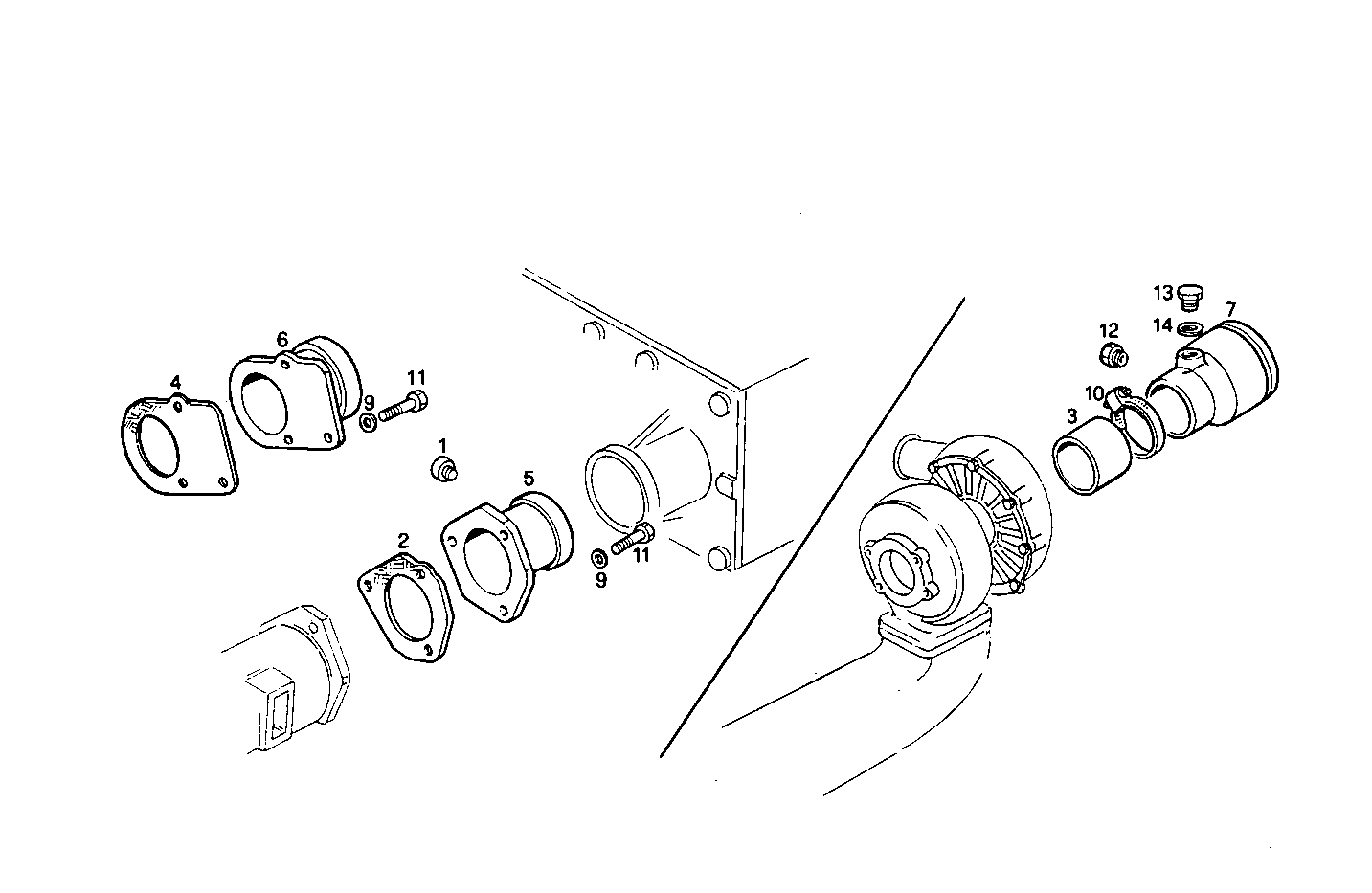

2420.032 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4742387 | PLUG |
| 2 | 500301319 | INTAKE ELBOW GASK. |
| 3 | 4688658 | RUBBER SLEEVE |
| 4 | 8013482 | INTAKE ELBOW GASK. |
| 5 | 8108540 | AIR MANIFOLD LEFT |
| 6 | 8108542 | WATER PIPE RIGHT |
| 7 | 8109384 | SPACING BAR |
| 9 | 17089974 | SPRING WASHER Ø8X22X2,4MM |
| 10 | 17765192 | HOSE CLIP Ø70-90 MM |
| 11 | 16625734 | HEXAGON BOLT M8X35 |
| 12 | 8105144 | PLUG |
| 13 | 4630360 | THREADED UNION |
| 14 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
