PU8281SRI10.00A102

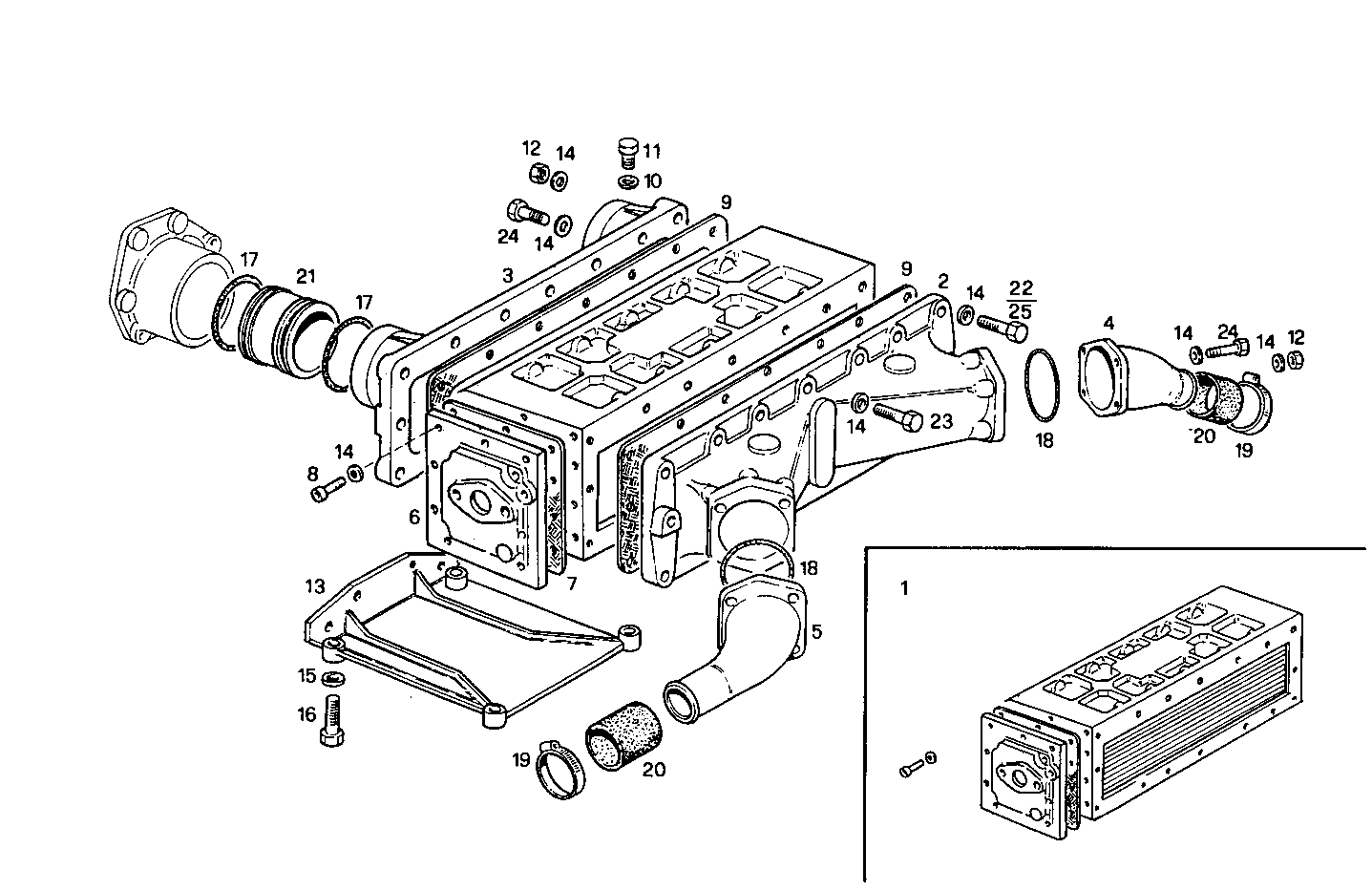

2460.009 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8110638 AIR/WATER HEAT EXCHANGER ASSY
2 8105947 AIR HOOD
3 8108539 AIR HOOD
4 8108582 WATER PIPE RIGHT
5 8108581 AIR MANIFOLD LEFT
6 8113017 HEAT EXCHANG.COVER
7 8112975 GASKET
8 11306921 SCREW M10X1,25X30
9 8103241 GASKET
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 10300640 LOCK PLUG M14X1,5
12 17037931 HEXAGON NUT M8X1,25
13 8110254 SUPPORT
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 11307021 HEXAGON BOLT M10X40 MM
17 14472381 WASHER
18 17291281 O-RING Ø94,84 MM SP=3,53 MM
19 4788416 CLIP
20 4765112 RUBBER SLEEVE
21 8108544 SPACING BAR
22 16605624 HEXAGON BOLT M8X25 MM (8.8)
23 16043821 HEXAGON BOLT M8X30 MM
24 16625734 HEXAGON BOLT M8X35
25 16606124 HEXAGON BOLT M8X50 MM
