PU8281SRI10.00A102

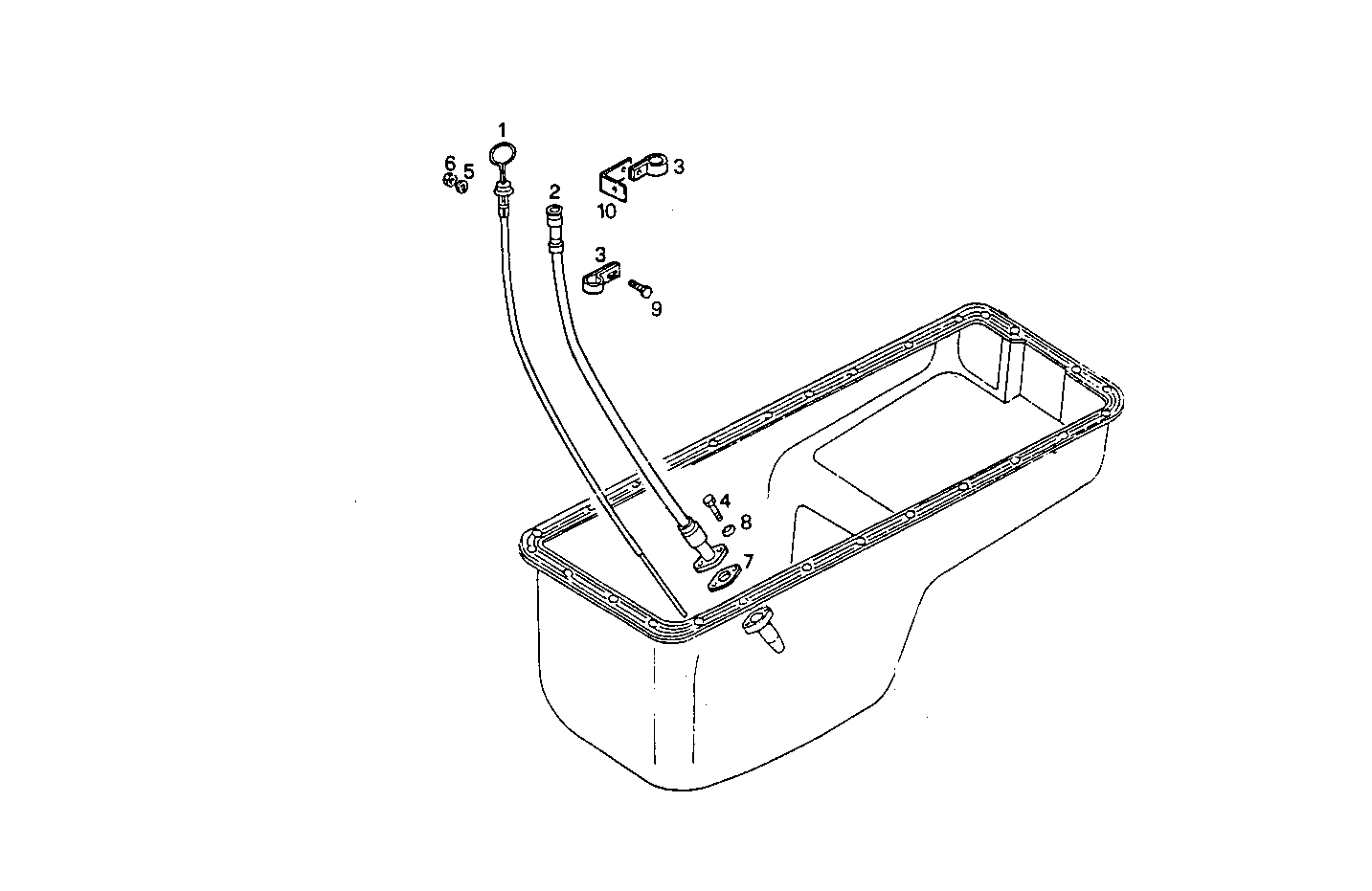

2710.007 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4696147 | OIL DIPSTICK |
| 2 | 4696150 | ROD GUIDE |
| 3 | 10450390 | PIPE CLIP Ø20X26 MM SP=1,5 MM |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 98401052 | FLAT ENGINE GASKET |
| 8 | 17089574 | WASHER Ø8X16 MM |
| 9 | 16043821 | HEXAGON BOLT M8X30 MM |
| 10 | 8103550 | RETAINER |
