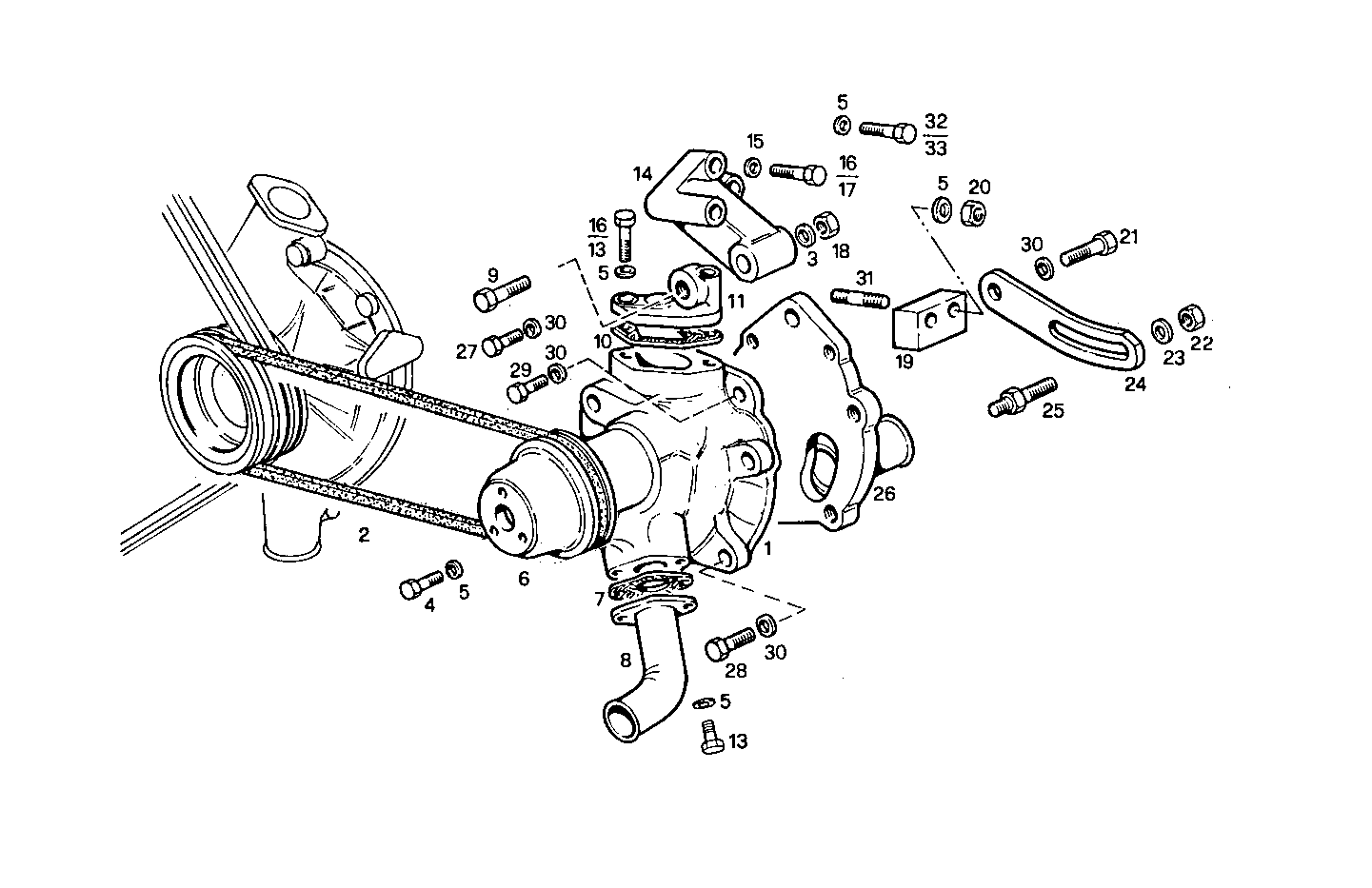

| Item |
Part number |
Description |
|
1 |
8029068 |
WATER PUMP |
|
2 |
4809002 |
WATER PUMP BELT KLEBER |
|
3 |
4622654 |
WASHER |
|
4 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8010795 |
PULLEY |
|
7 |
4852556 |
FLAT ENGINE GASKET |
|
8 |
4800147 |
PIPE |
|
9 |
16611024 |
HEXAGON BOLT M12X1,75X100 MM |
|
10 |
98417182 |
FLAT ENGINE GASKET [up to 07-92] |
|
11 |
8108706 |
COVER |
|
12 |
16044321 |
HEXAGON BOLT M8X1,25X55 MM |
|
13 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
8108377 |
SUPPORT |
|
15 |
17089574 |
WASHER Ø8X16 MM |
|
16 |
16606224 |
HEXAGON BOLT M8X55 MM |
|
17 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
18 |
17157124 |
NUT M12 |
|
19 |
8106503 |
SUPPORT |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
11306921 |
SCREW M10X1,25X30 |
|
22 |
17157221 |
NUT M10X1,25 |
|
23 |
4513436 |
SUPPORT RING Ø10X21X2 MM |
|
24 |
8108378 |
BELT TENSIONER |
|
25 |
8108386 |
SPACING BAR |
|
26 |
8100617 |
COVER |
|
28 |
11343821 |
HEXAGON BOLT M10X1,25X50 MM |
|
29 |
11227921 |
HEXAGON BOLT M10X28 MM |
|
30 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
31 |
16729724 |
STUD M8X40 MM |
|
32 |
16606024 |
SCREW M8X45 MM |
|
33 |
16605734 |
HEXAGON BOLT M8X30 MM |
