PU8361SI10.00A100

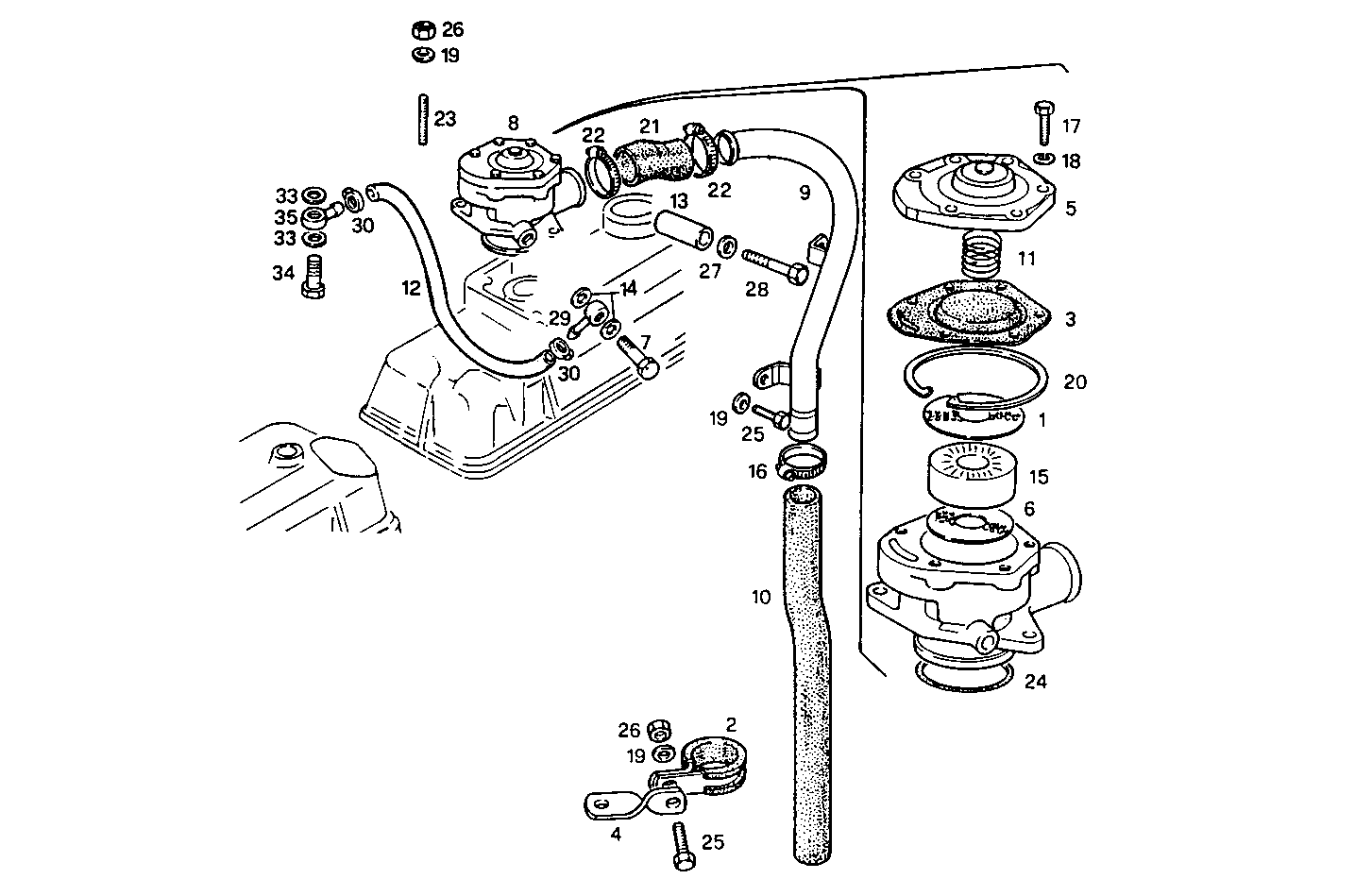

0450.018 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4771080 DISC
2 4628548 CLIP
3 4771078 DIAPHRAGM
4 4795309 RETAINER
5 4771075 COVER
6 4771081 DISC
7 4806154 FILLER NECK
8 4816603 BREATHER ASSY
9 4804290 BREATHER PIPE
10 98432572 EXHAUST PIPE
11 4812557 SPRING
12 19056687 RUBBER HOSE Ø7,5 MM
13 8541600 SPACING BAR
14 4858606 GASKET Ø10X14X1 MM
15 4771079 FILTER
16 17764792 HOSE CLIP Ø32-50 MM
17 10902811 HEXAGON BOLT M6X30 MM
18 17094714 WASHER Ø6,4X12 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 11062176 CIRCLIP Ø90,5 MM
21 98432583 CLIP
22 17764692 CLIP Ø25/40 MM
23 13543321 STUD M8X16X20 MM
24 17289681 O-RING Ø44 MM SP=3,53 MM
25 16043221 HEXAGON BOLT M8X16 MM
26 17037931 HEXAGON NUT M8X1,25
27 17090274 WASHER Ø10X20 MM
28 15971324 SCREW M10X75 MM
29 4671701 SWIVEL COUPLING
30 17764491 CLIP Ø16/25 MM
33 4858607 WASHER Ø12X17 MM SP=1,5 MM
34 4864082 BANJO BOLT M12X1,5X25 MM
35 4722869 SWIVEL COUPLING
