PU8361SI10.00A100

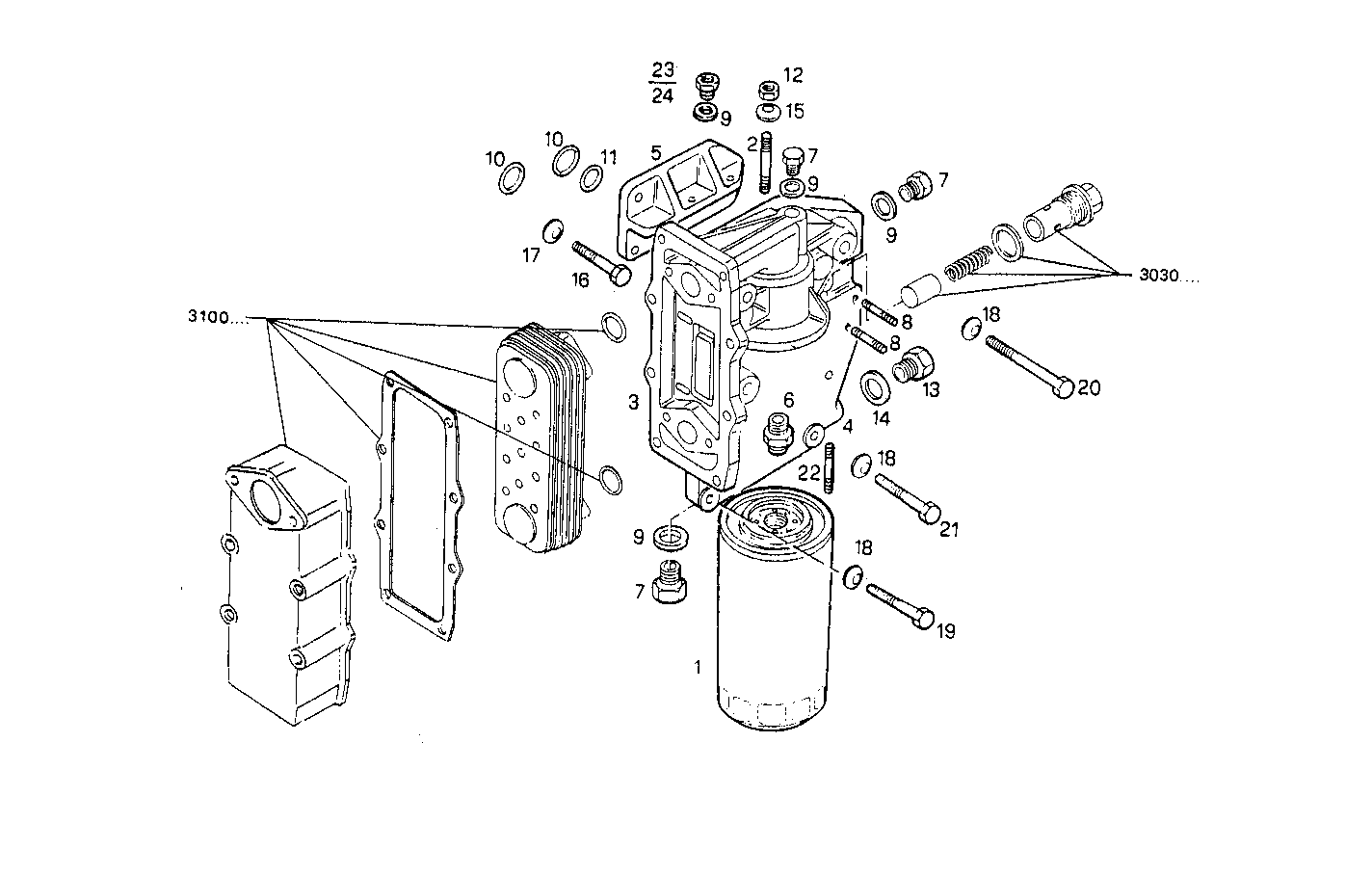

3020.030 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 98431155 OIL FILTER CARTRIDGE
2 13532521 STUD M10X70 MM
3 98407637 OIL FILTER SUPPORT
4 98409638 HEAT EXANGER BODY
5 4720881 BRACKET
6 4741301 THREADED UNION ASSY
7 10275001 LOCK PLUG M22X1,5X10 MM
8 13453521 STUD M10X1,25X25 MM
9 10261860 SEAL GASKET Ø22X30 MM SP=1,5 MM
10 17282581 O-RING Ø28,24 MM SP=2,62 MM
11 14457681 O-RING Ø21,89 MM SP=2,62 MM
12 16101511 HEXAGON NUT M12X1,25
13 10276740 LOCK PLUG M35X1,5
14 10265160 SEAL GASKET Ø35,3 MM
15 17091174 SPRING WASHER Ø12X24 MM
16 11307021 HEXAGON BOLT M10X40 MM
17 17090274 WASHER Ø10X20 MM
18 11198771 WASHER Ø12X30X3,4 MM
19 15541121 HEXAGON BOLT M12X1,25X65 MM
20 15541821 HEXAGON BOLT M12X1,25X120 MM [up to 565948]
21 15541321 HEXAGON BOLT M12X1,25X75 MM
22 13543321 STUD M8X16X20 MM
23 4754648 PIPE SOCKET [up to ...]
24 98408514 PIPE SOCKET [from ...]
