PU8361SI10.00A100

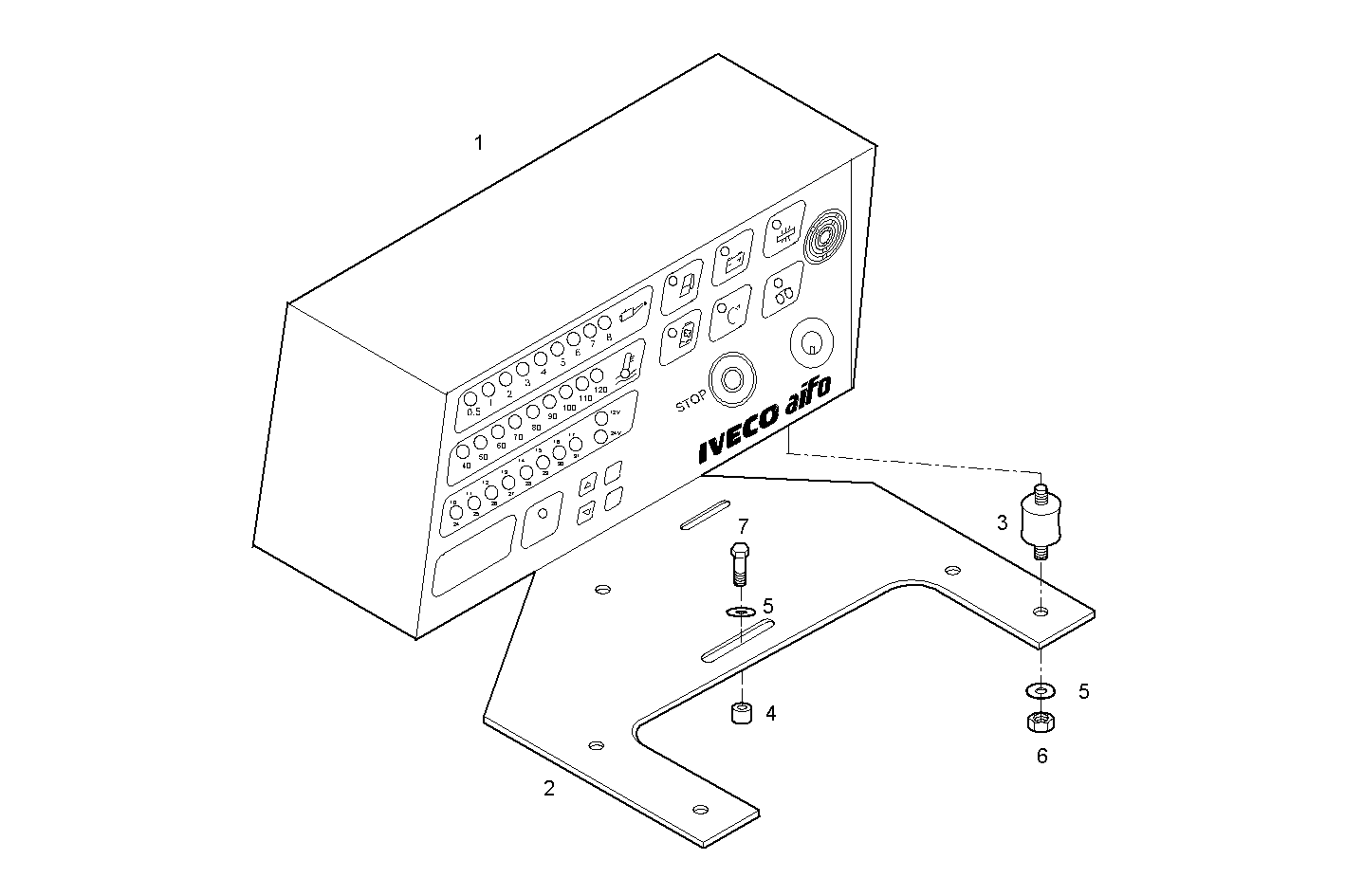

A38810004 DIGITAL INSTRUMENT PANEL 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8033504 | CONTROL BOARD ASSY 24V |
| 2 | 4935403 | SUPPORT |
| 3 | 4910949 | RUBBER LUG |
| 4 | 17816814 | SPACING BAR |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 16606324 | HEXAGON BOLT M8X60 MM |
