PU8361SRE10.00A100

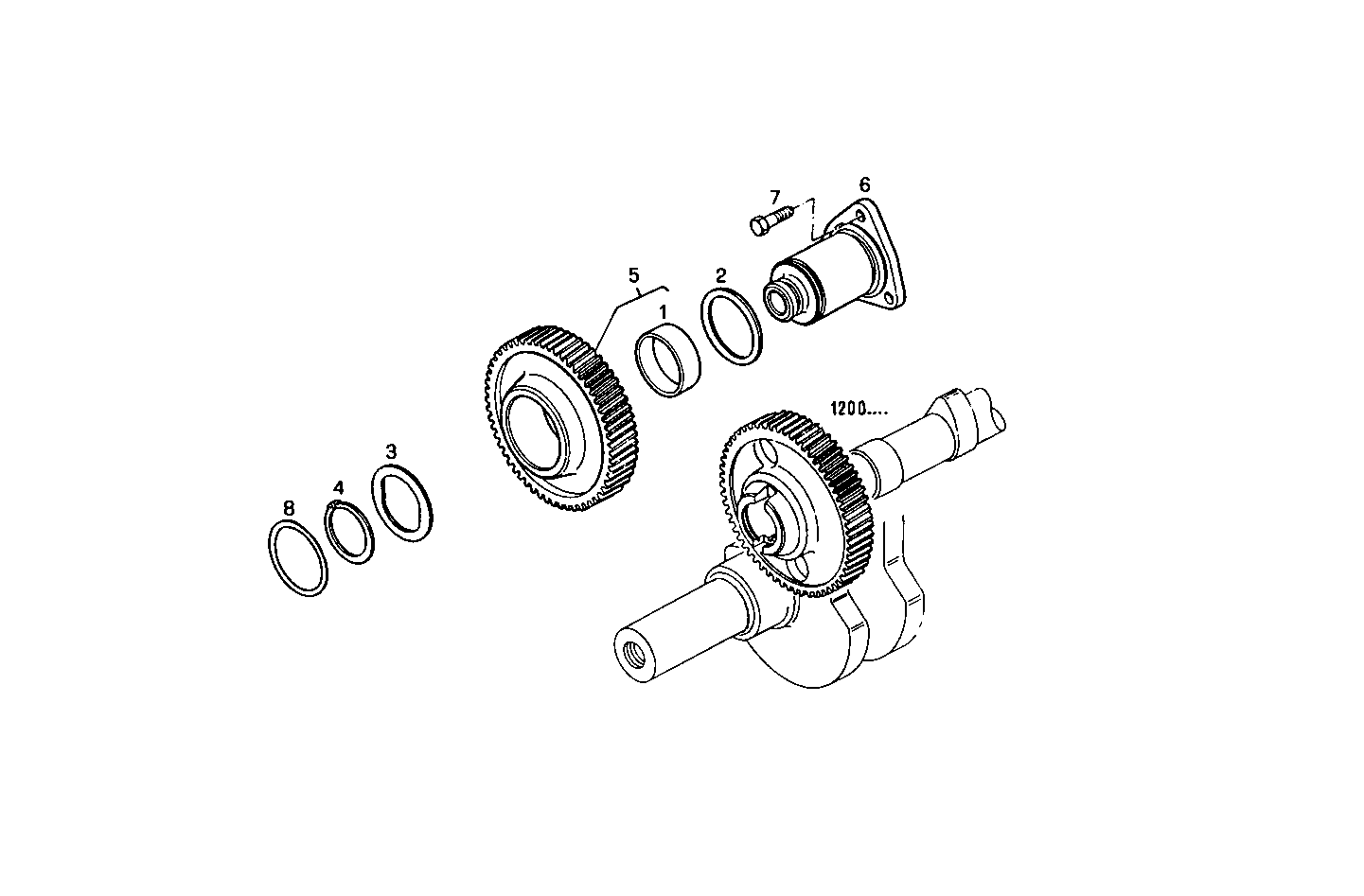

1000.017 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 4601834 BUSH
2 4604833 WASHER
3 4667498 WASHER
4 4708213 CIRCLIP
5 98407508 GEAR ASSY
6 4708424 GUIDE BOLT
7 14238030 LOCKING SCREW M8X20 MM
8 14463181 O-RING SP=3,53 MM
