PU8361SRE10.00A100

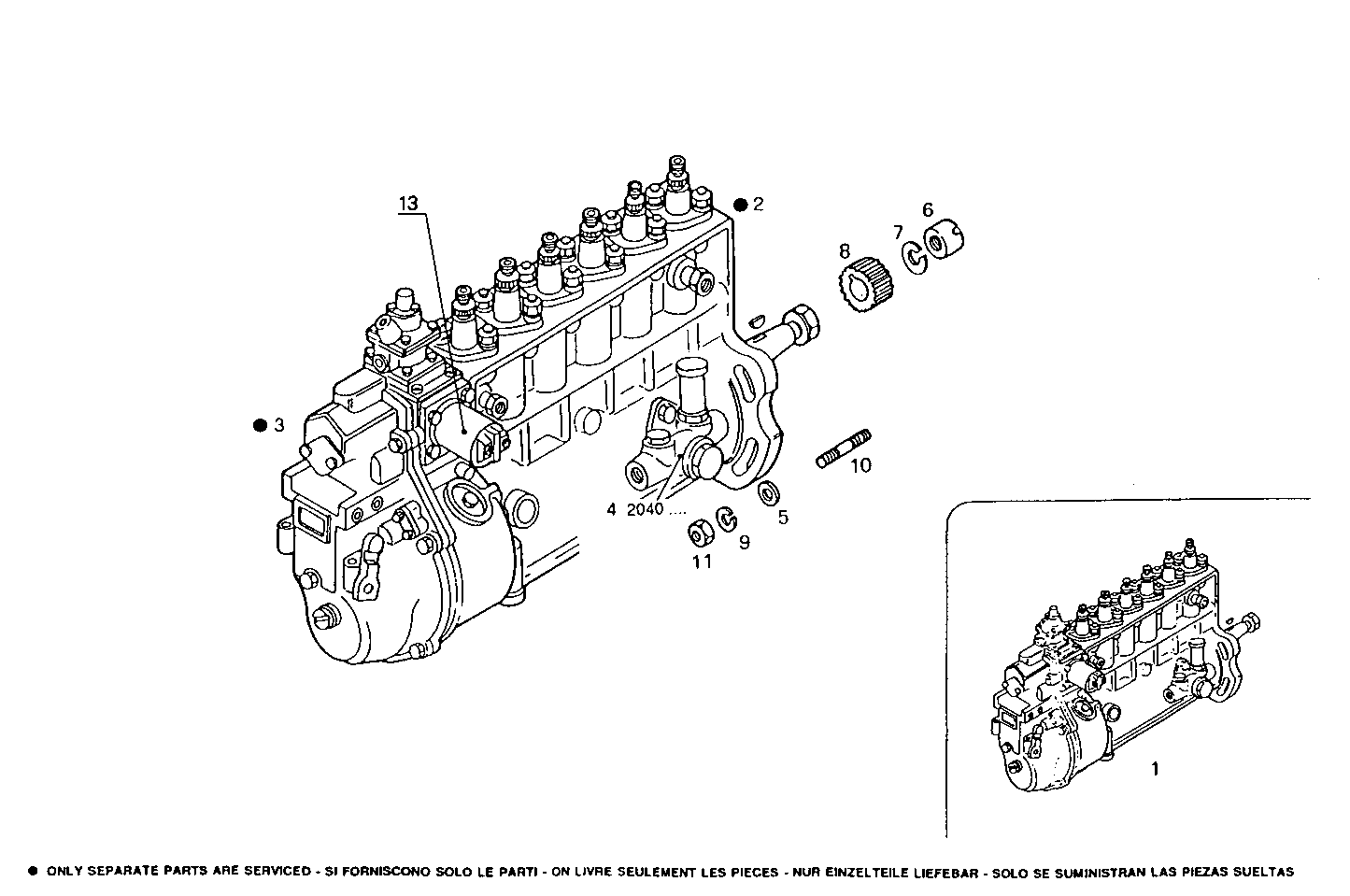

1400.261 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8027189 | INLINE INJECT.PUMP ASSY BOSCH |
| 2 | 98453585 | INLINE INJECT.PUMP BOSCH |
| 4 | 772110 | FUEL PUMP ASSY WEBER ALTECNA |
| 4 | 8092471 | FUEL PUMP ASSY BOSCH |
| 5 | 759850 | WASHER Ø10X21X2 MM |
| 6 | 4750524 | NUT |
| 7 | 4750525 | WASHER |
| 8 | 4816286 | BUSH 158ø |
| 9 | 17090274 | WASHER Ø10X20 MM |
| 10 | 13449824 | STUD M10X1,25X15 MM |
| 11 | 17038221 | HEXAGON NUT M10 |
| 13 | 42488293 | SPRING |
