PU8361SRE10.00A100

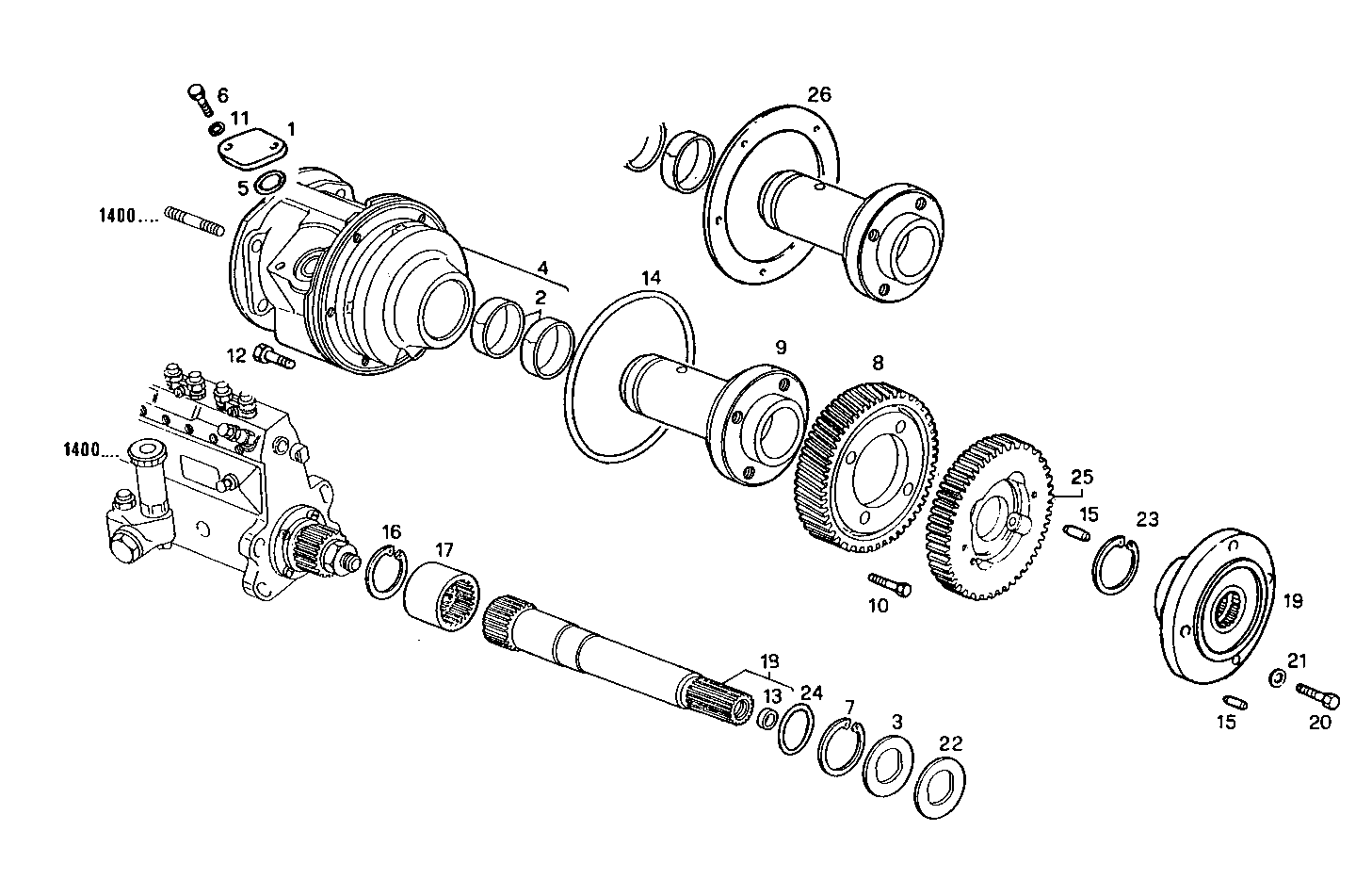

1410.017 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4711552 COVER
2 4766813 BUSH
3 4667498 WASHER
4 99435072 SUPPORT ASSY
5 14457581 O-RING Ø20,29 MM SP=2,62 MM
6 10902121 HEXAGON BOLT M6X14 MM
7 4708213 CIRCLIP
8 4722819 INJ.PUMP DRIV.GEA
9 4766706 SHAFT
10 14233621 LOCKING SCREW M10X1,25X30 MM
11 17088474 WASHER Ø6X12 MM
12 14238721 LOCKING SCREW M8X45 MM
13 14328701 LOCK PLUG Ø20 MM
14 14456781 O-RING SP=1,78 MM
15 14600370 DOWEL PIN Ø5 MM
16 4750646 SPRING LOCKWASHER
17 4750523 INJECT.PUMP BUSH
18 4811336 SHAFT ASSY
19 4712737 INJECT.PUMP SLEEVE
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 17089574 WASHER Ø8X16 MM
22 4604833 WASHER
23 758732 CIRCLIP
24 14463881 O-RING Ø3,53X34,52 MM
25 4722821 GEAR ASSY
26 98488133 FLAT ENGINE GASKET Ø105X142 MM [from 18308]
