PU8361SRE10.00A100

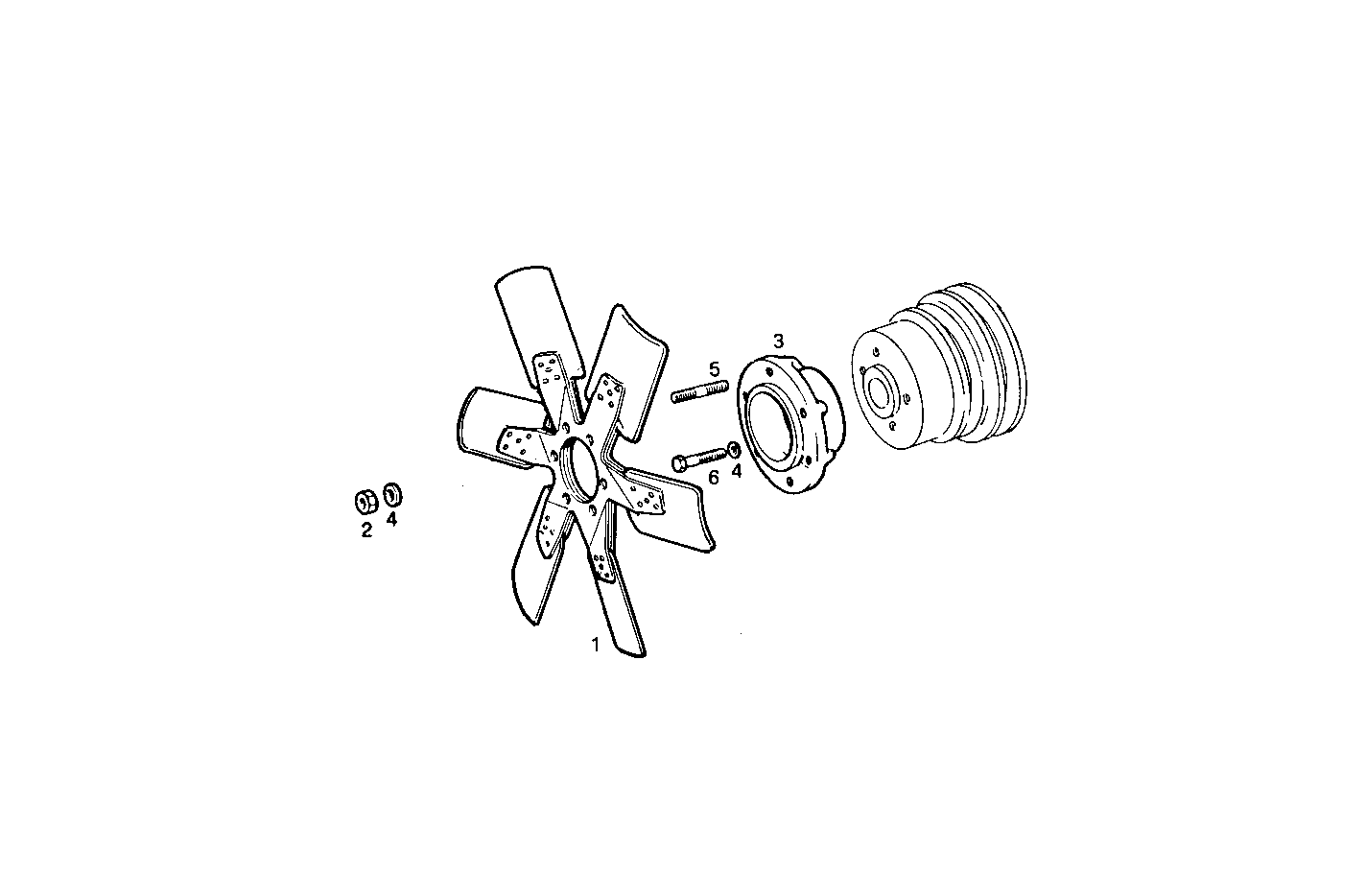

A08040001 PUSHER FAN - on water pump
Item | Part number | Description |
---|---|---|
1 | 79003152 | FAN Ø562 MM |
2 | 12164711 | HEXAGON NUT M10X1,25 |
3 | 8104535 | HUB |
4 | 11198371 | SPRING WASHER Ø10X20 MM |
5 | 13546321 | STUD M10X25 MM |
6 | 15972121 | SCREW M10X1,25X115 |
