PU8361SRE10.00A100

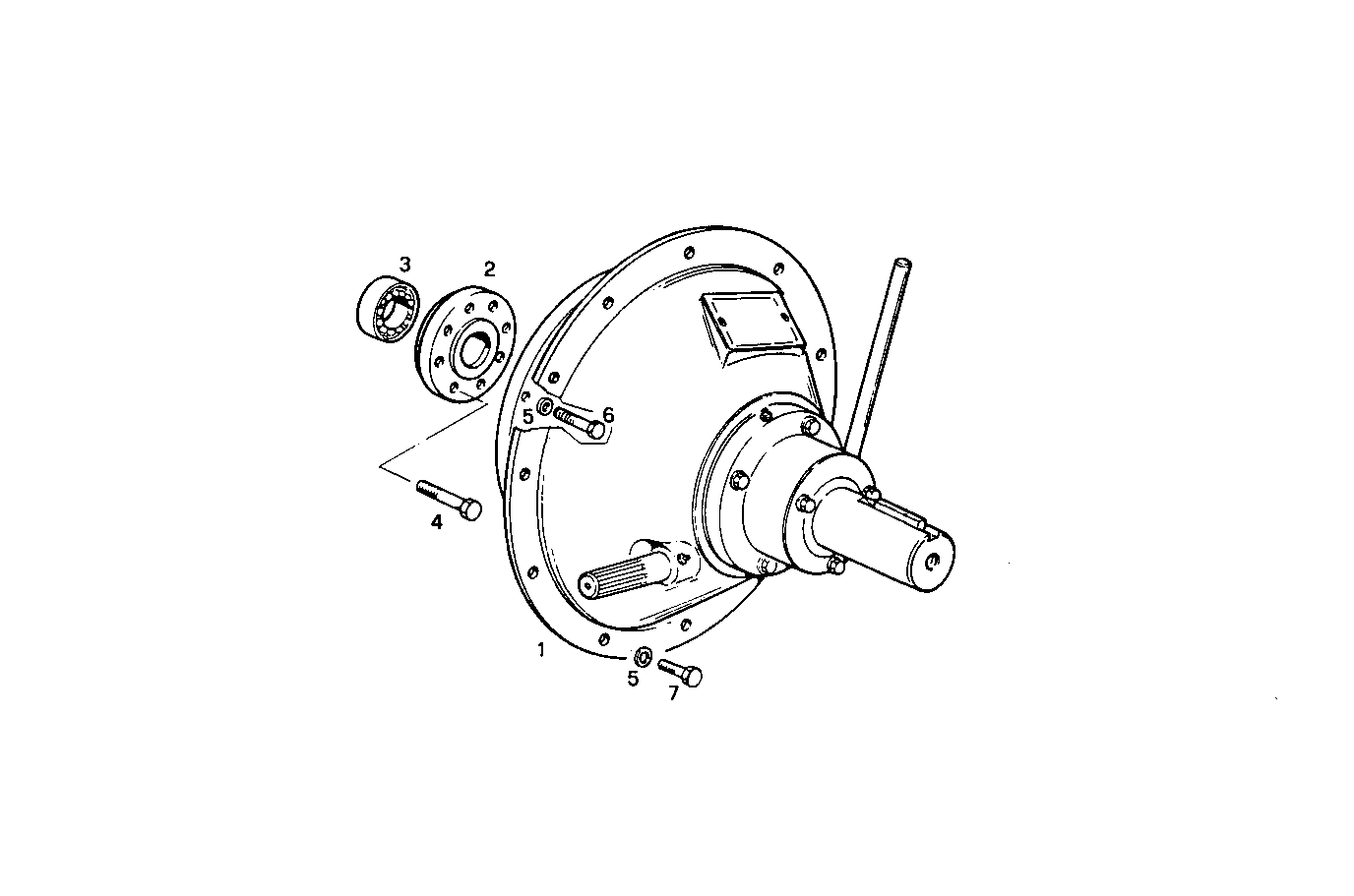

A27220005 BIDISC INDUSTRIAL CLUTCH - TECHNODRIVE 11'' 1/2
| Item | Part number | Description |
|---|---|---|
| 1 | 4935798 | CLUTCH ASSY BD 290/150 |
| 2 | 4935070 | HUB |
| 3 | 28044150 | DRIVE BEARING |
| 4 | 4935071 | SCREW |
| 5 | 11198371 | SPRING WASHER Ø10X20 MM |
| 6 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
| 7 | 11306921 | SCREW M10X1,25X30 |
