PU8361SRE10.00A100

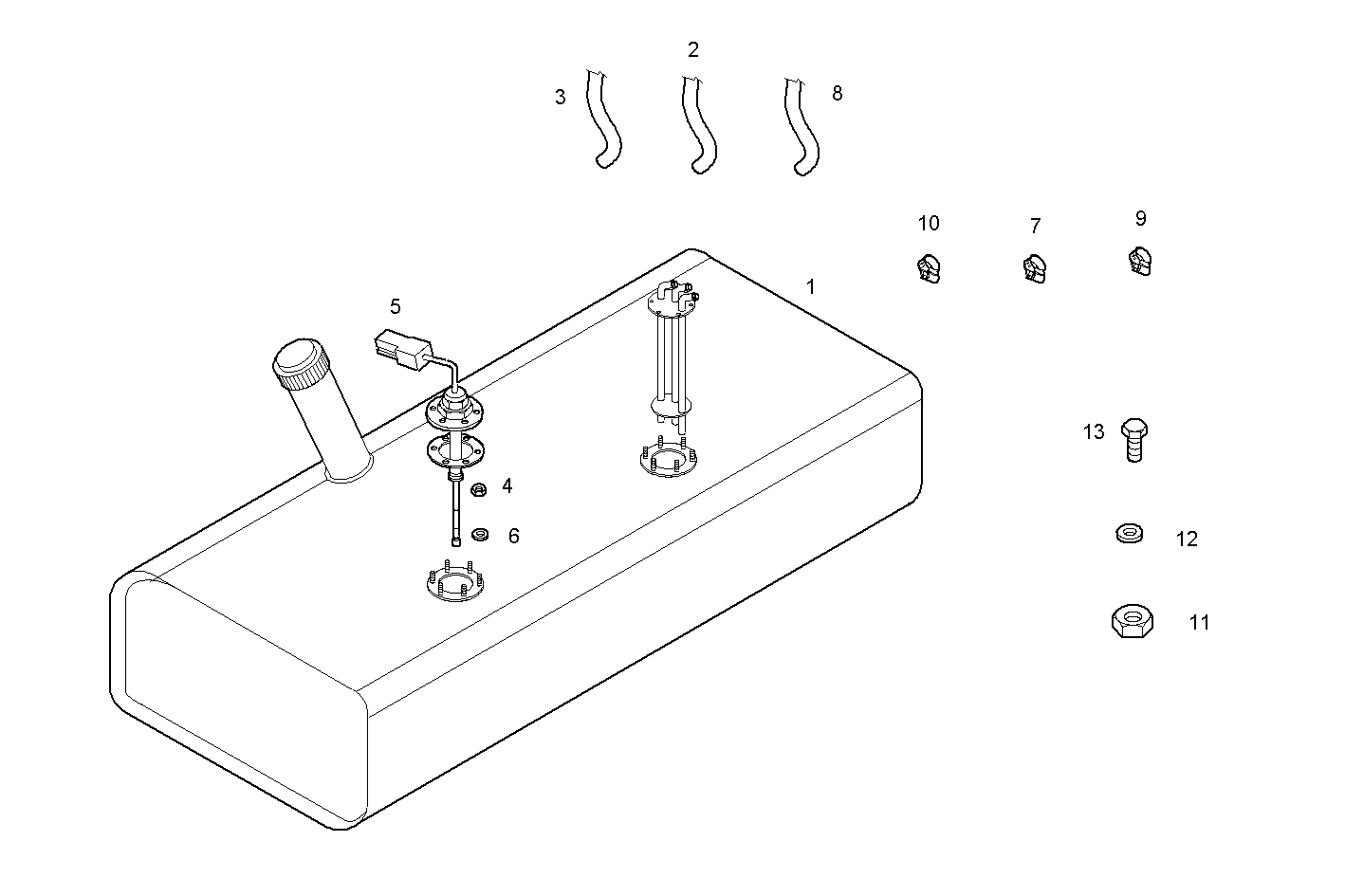

A29060005 FUEL TANK
| Item | Part number | Description |
|---|---|---|
| 1 | 8107040 | TANK |
| 2 | 19053382 | HOSE |
| 3 | 19053182 | HOSE |
| 4 | 17037621 | HEXAGON NUT M4 |
| 5 | 8027055 | FUEL LEVEL GAUGE |
| 6 | 17797974 | SPRING WASHER Ø4,1X7,6 MM |
| 7 | 18087991 | CLIP Ø8/16 MM |
| 8 | 17723082 | BREATHER PIPE |
| 9 | 18087993 | CLIP Ø8/16 MM |
| 10 | 4932730 | CLIP |
| 11 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 12 | 17038221 | HEXAGON NUT M10 |
| 13 | 15970421 | HEXAGON BOLT M10X18 MM |
