PU8361SRE10.00A100

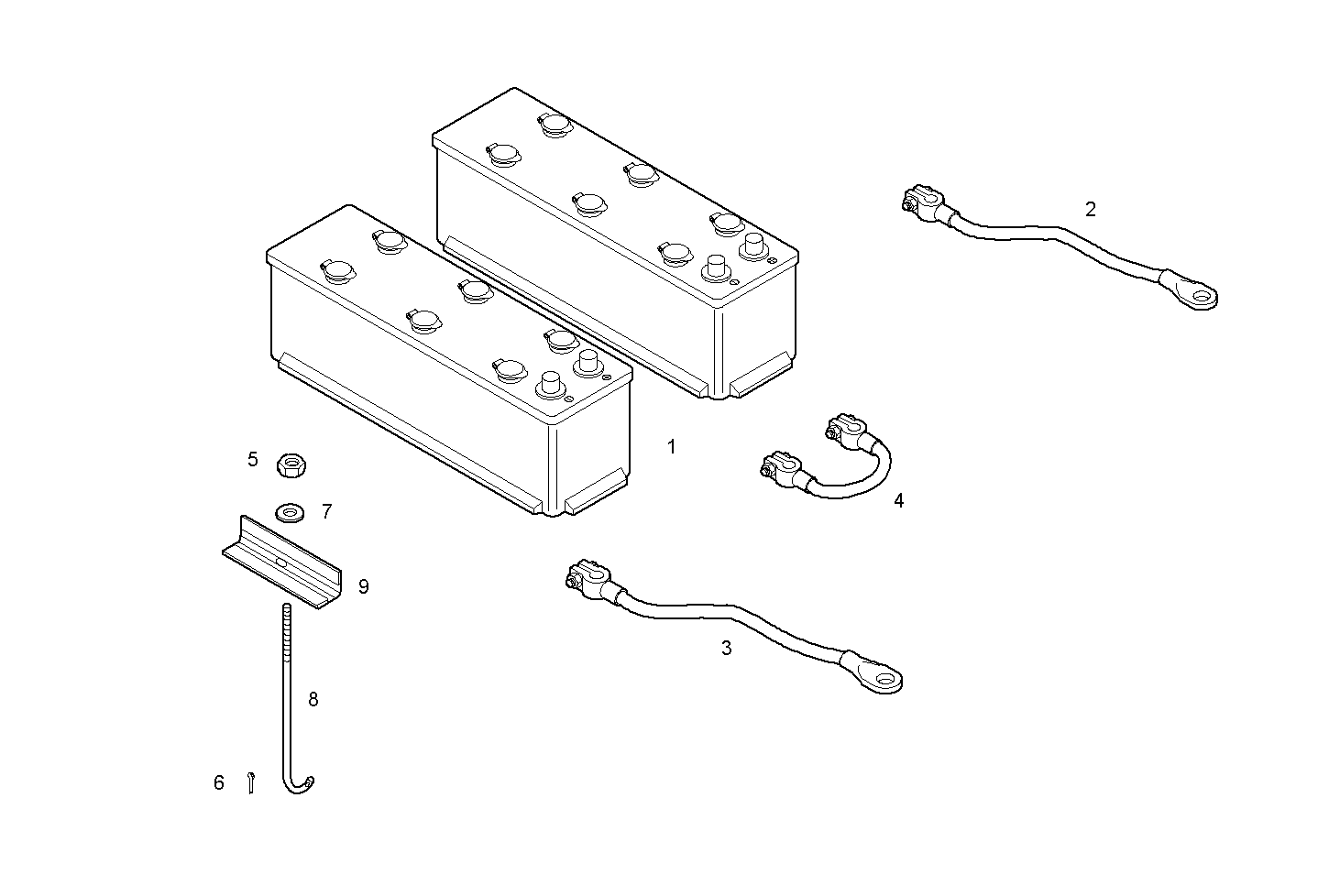

A30040002 STARTING BATTERY 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 4931027 | BATTERY 12V |
| 2 | 4936214 | WIRE/CABLE (-) |
| 3 | 4930995 | WIRE/CABLE (+) |
| 4 | 4930994 | WIRE/CABLE |
| 5 | 17037925 | HEXAGON NUT M8X1,25 |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 4928634 | TIE ROD |
| 9 | 4927943 | ANGLE PIECE |
