PUC10ENTD20.00A100

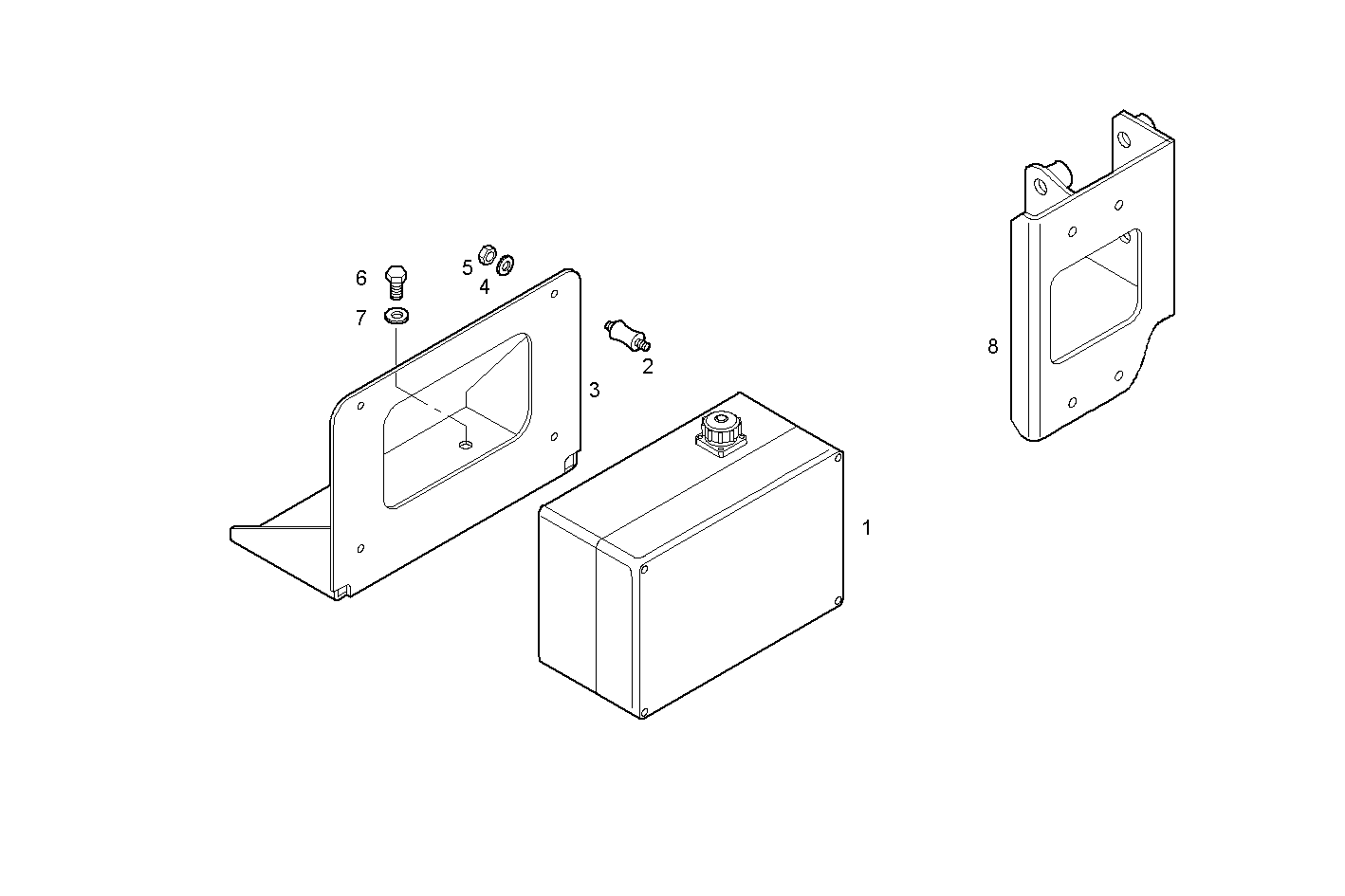

5630.002 PANEL WITH ELECTRICAL INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8047448 | SWITCH PANEL |
| 2 | 4910949 | RUBBER LUG |
| 3 | 8044200 | RETAINER |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 16607625 | SCREW M10X25 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8042900 | SUPPORT |
