PUC10ENTD20.00A100

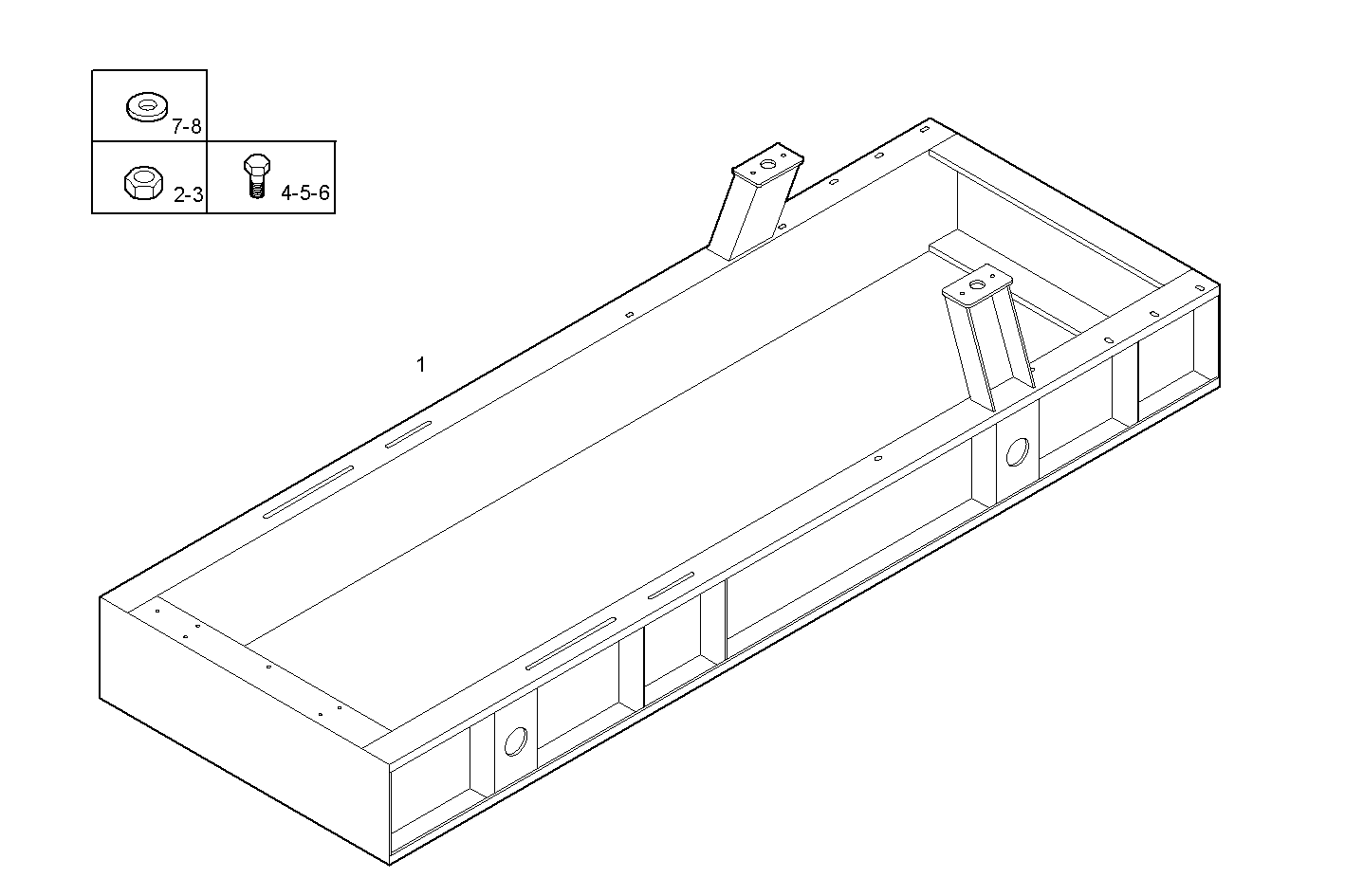

5760.000 SUBSAE-SUPPORT FRAME
Item | Part number | Description |
---|---|---|
1 | 8044426 | SUBBSAE-SUPPORT FRAME |
2 | 17038725 | NUT M14 |
3 | 17039721 | HEXAGON NUT M24 |
4 | 16612224 | HEXAGON BOLT M14X30 MM |
5 | 16619624 | SCREW M24x3x50 MM |
6 | 16620124 | SCREW M24X3X80 |
7 | 17091674 | WASHER Ø14X27X3,0 MM |
8 | 17093174 | WASHER Ø24X46X5,4 MM |
