PUC13ENTD20.00

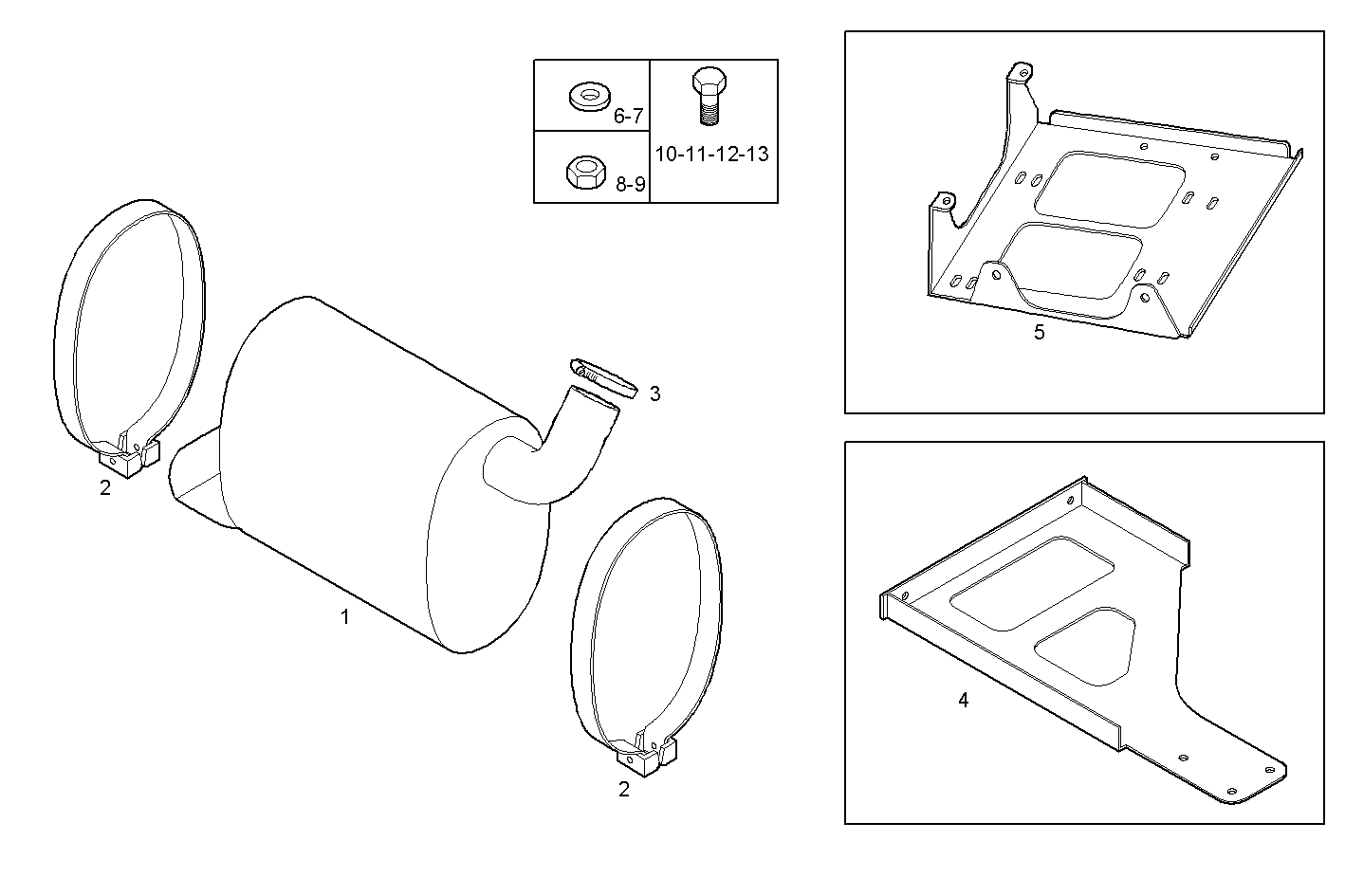

2423.023 AIR LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8046765 | SILENCER |
| 2 | 41016565 | CLIP |
| 3 | 42090154 | PIPE CLIP |
| 4 | 8042901 | RETAINER RIGHT |
| 5 | 8042833 | RETAINER |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16750321 | HEXAGON NUT M10 |
| 9 | 17038131 | HEXAGON NUT M10 |
| 10 | 16605524 | HEXAGON BOLT M8X20 MM |
| 11 | 16607734 | HEXAGON BOLT M10X30 MM |
| 12 | 16607625 | SCREW M10X25 |
| 13 | 16609124 | HEXAGON BOLT M10X130 MM |
| 14 | 8048032 | RETAINER |
