PUC78ENTD20.00A100

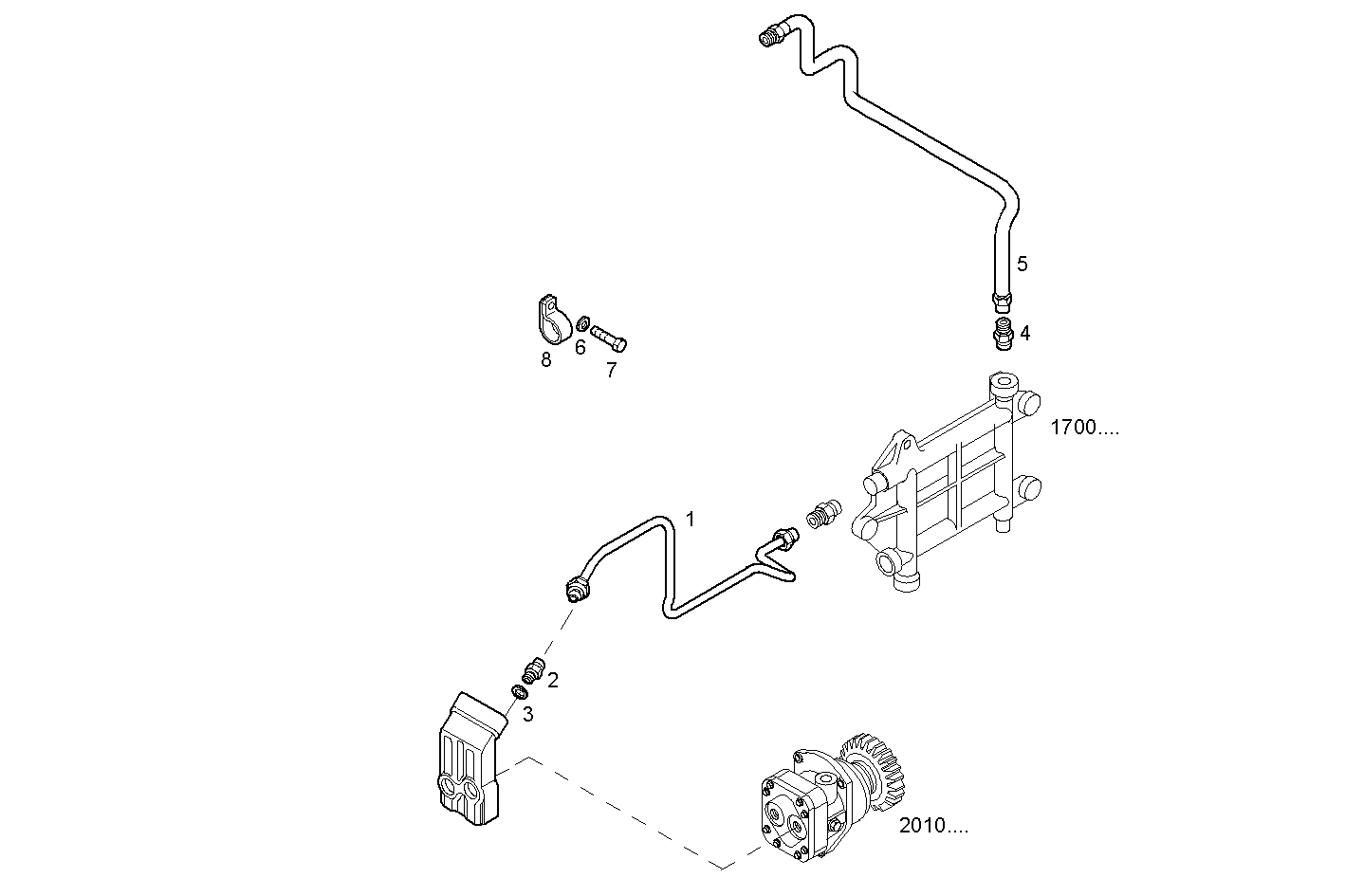

2030.317 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8038872 | FUEL LINE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 500342082 | THREADED UNION |
| 5 | 8038898 | FUEL LINE |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605424 | SCREW M8X16 MM (8.8) |
| 8 | 17316490 | CLIP |
