PUC78ENTD20.00A100

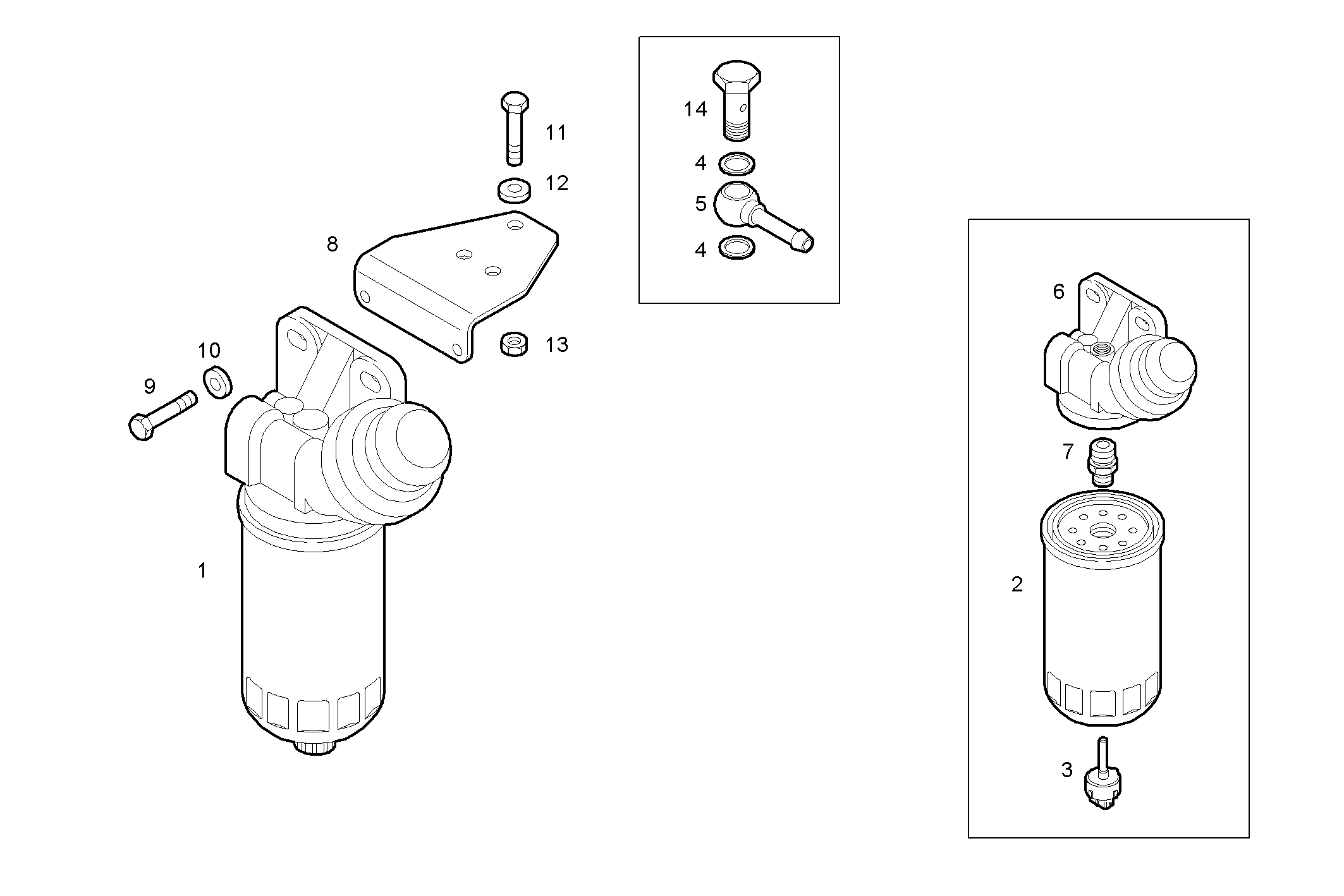

2090.008 FUEL PREFILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504057743 | PREFILTER ASSY |
| 2 | 2992662 | FUEL FILTER ELEM. |
| 3 | 42540203 | SENSOR WATER |
| 4 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 5 | 98404882 | PIPE SOCKET Ø8 MM |
| 6 | 42545573 | FUEL FILT.SUPPORT |
| 7 | 42545574 | THREADED UNION |
| 8 | 8040177 | RETAINER |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 16609424 | SCREW M10x32 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17038131 | HEXAGON NUT M10 |
| 14 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
