PUC78ENTD20.00A100

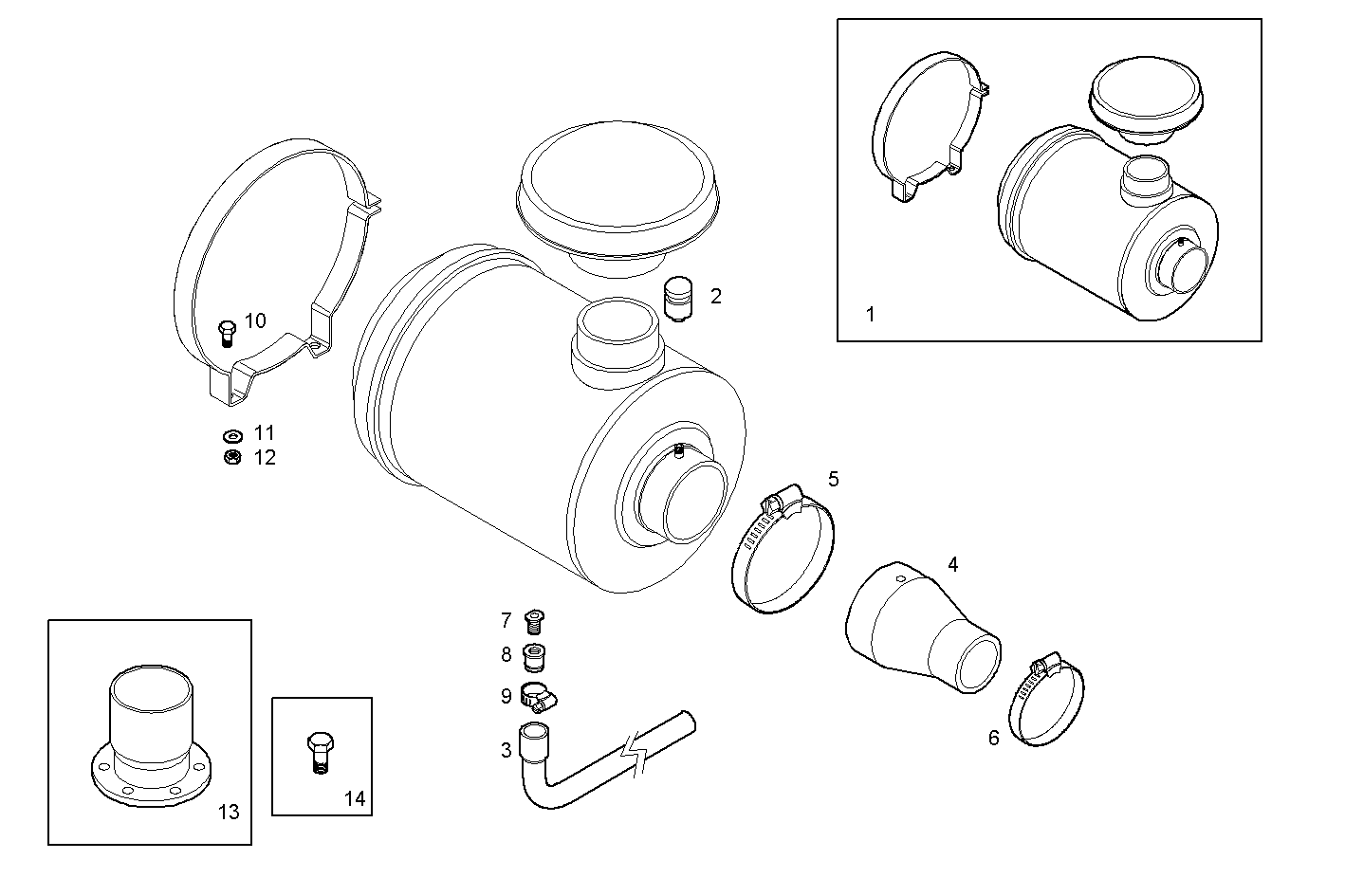

A21210522 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8034708 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 8043871 | RUBBER SLEEVE |
| 4 | 8039867 | FILTER HOSE |
| 5 | 17765991 | CLIP |
| 6 | 17765494 | CLIP dia. = 100/120 |
| 7 | 8015315 | PIPE SOCKET |
| 8 | 8036882 | PIPE SOCKET |
| 9 | 17764694 | CLIP Ø25/40 MM |
| 10 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 11 | 17091074 | WASHER Ø12X24X2,8 MM |
| 12 | 17038425 | HEXAGON NUT M12 (8) |
| 13 | 8039911 | FLANGE |
| 14 | 16614624 | HEXAGON BOLT M16X40 MM |
