PUC78ENTD20.00A100

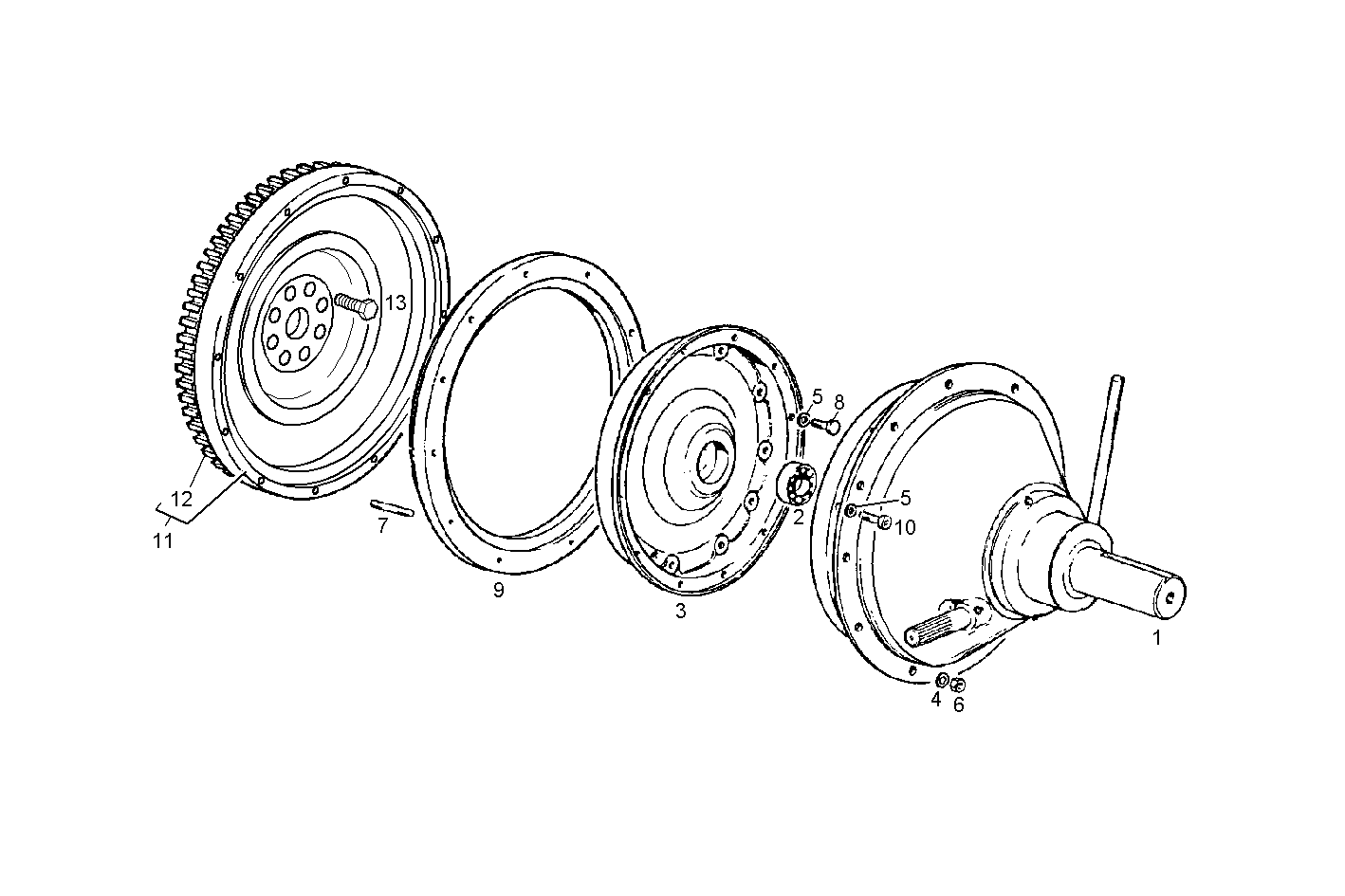

A27250501 BIDISC CLUTCH
| Item | Part number | Description |
|---|---|---|
| 1 | 8015237 | CLUTCH |
| 2 | 8005041 | DRIVE BEARING |
| 3 | 4931864 | FLANGE |
| 4 | 17090274 | WASHER Ø10X20 MM |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
| 7 | 17368924 | STUD M10X80 MM |
| 8 | 16610024 | SCREW M12X35 |
| 9 | 8110185 | SPACING BAR |
| 10 | 15541421 | HEXAGON BOLT M12X1,25X80 MM |
| 11 | 8042903 | FLYWHEEL |
| 12 | 99438525 | RING GEAR |
| 13 | 500354692 | SCREW M16X1,5 |
