PUC78ENTD20.00A100

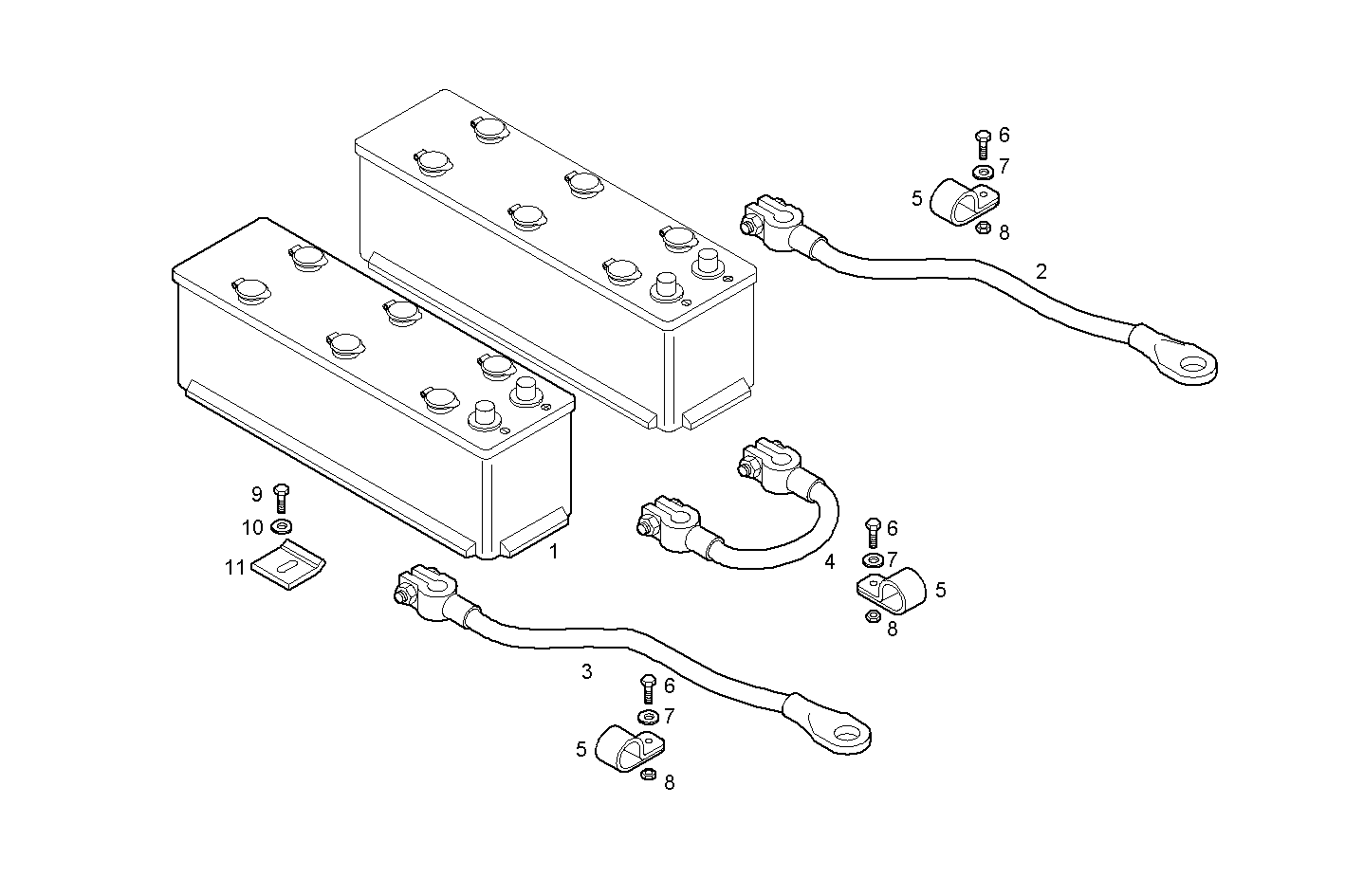

A30040501 STARTER BATTERY
| Item | Part number | Description |
|---|---|---|
| 1 | 8022950 | BATTERY 24V |
| 2 | 8020003 | WIRE/CABLE |
| 3 | 503112343 | WIRE/CABLE |
| 4 | 503112342 | WIRE/CABLE |
| 5 | 17315290 | LOCK/YOKE |
| 6 | 16603734 | HEXAGON BOLT M6X20 MM |
| 7 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 16607434 | HEXAGON BOLT M10X16 MM |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 8024305 | RETAINER |
