PUC78ENTD20.00A100

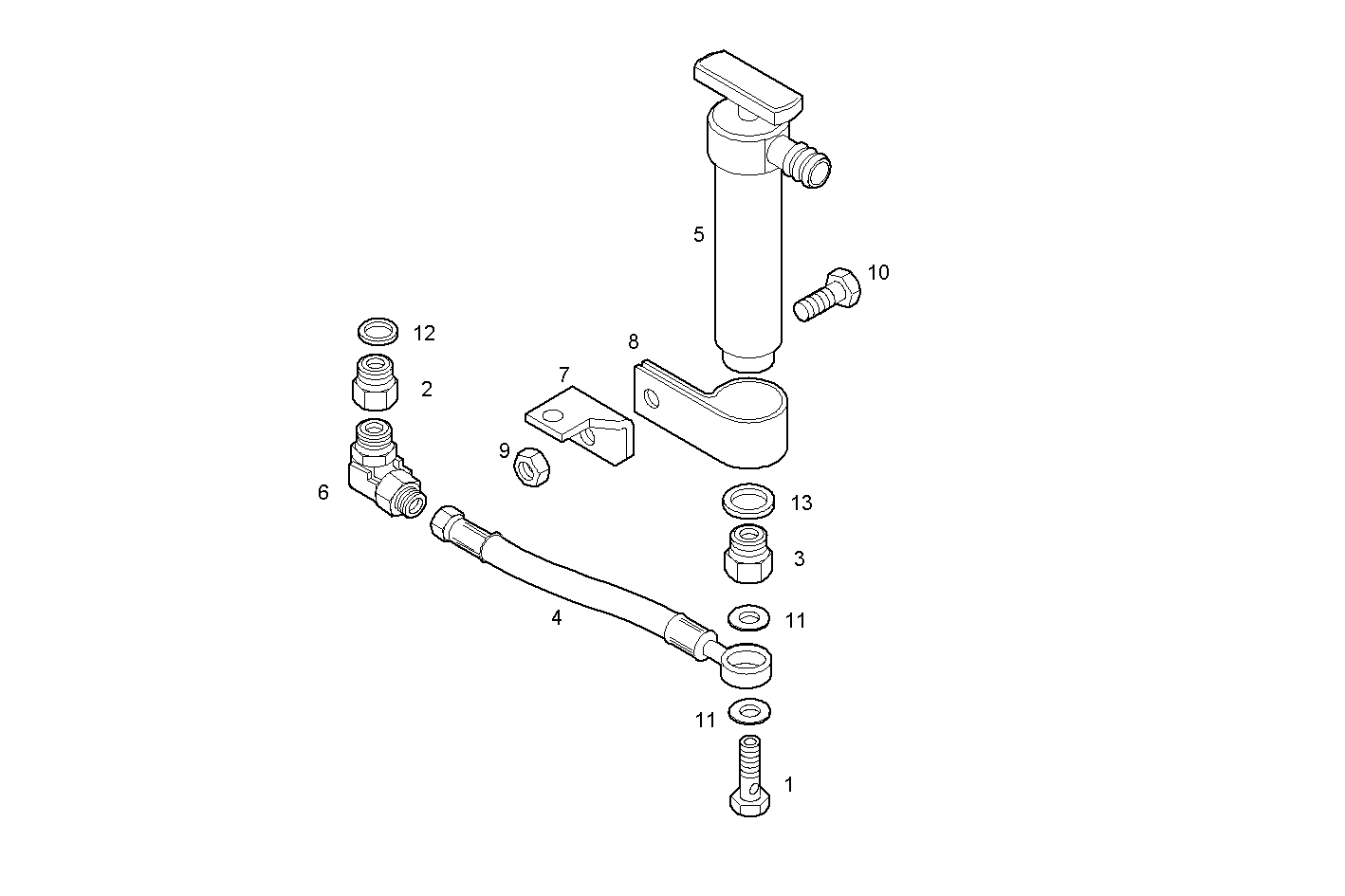

A49010505 OIL OUTLET PUMP
Item | Part number | Description |
---|---|---|
1 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
2 | 4927760 | PIPE SOCKET M22X1,5 |
3 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
4 | 8019055 | HOSE |
5 | 8050685 | MAR. ENG. SUCTION PUMP |
5 | 8019921 | HAND PUMP |
6 | 8025927 | ELBOW COUPLING |
7 | 8035298 | RETAINER [UP TO 17/04/09] |
8 | 8051314 | FASTENING BRACKET |
8 | 4928851 | CLIP |
9 | 17045835 | NUT M10 |
10 | 18139424 | HEXAGON BOLT M10X20 MM |
11 | 98474308 | SEAL GASKET Ø14X22 MM |
12 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
13 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
