PUC78ENTD20.00A100

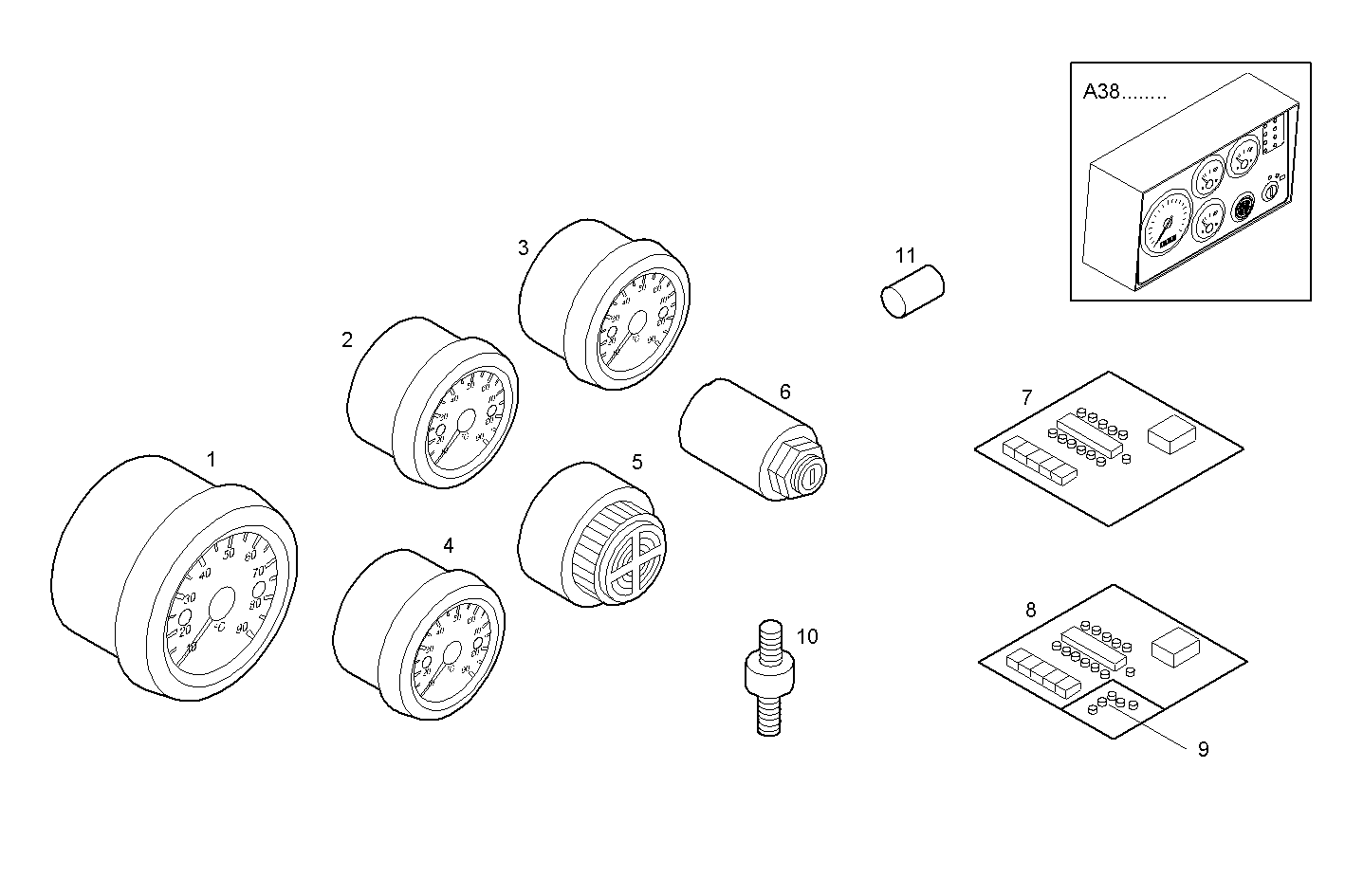

Q0000120 MANUAL CONTROL BOARD - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8094877 | COMBI-INSTRUMENT |
| 2 | 8094878 | WATER/OIL THERMOM. |
| 3 | 8094879 | PRESSURE GAUGE |
| 4 | 8094880 | VOLTMETER |
| 5 | 8035166 | ACOUSTIC HORN |
| 6 | 8094809 | SWITCH |
| 7 | 8094881 | ELECTRONIC CARD LED |
| 8 | 8094882 | ELECTRONIC CARD CPU |
| 9 | 8093926 | FUSE (5X20 630mA 250v) |
| 10 | 8093928 | RUBBER LUG |
| 11 | 8093930 | FUSE (6x30 8A) |
