PUC78ENTD20.20A100

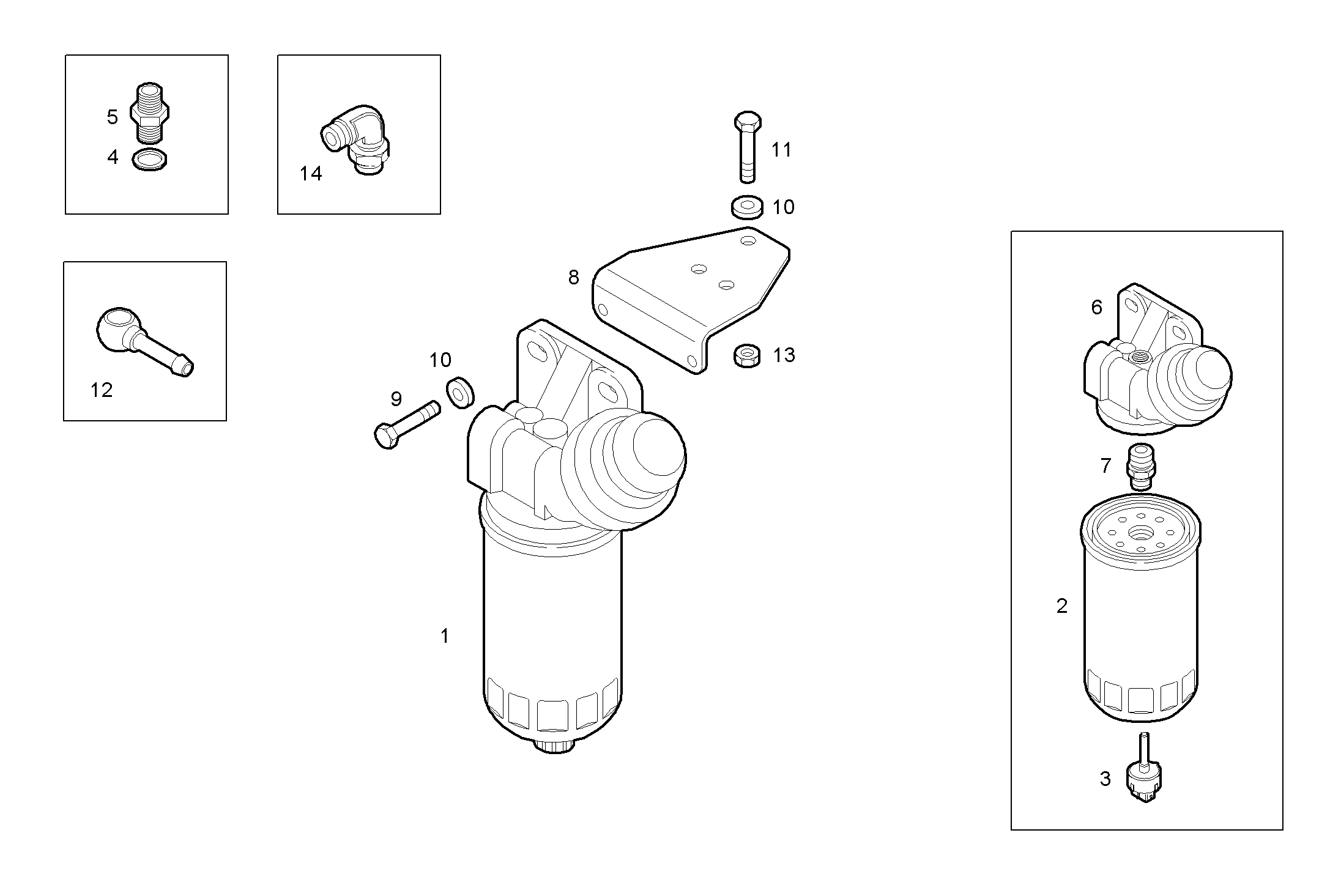

2090.017 FUEL PREFILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504057743 | PREFILTER ASSY |
| 2 | 2992662 | FUEL FILTER ELEM. |
| 3 | 42540203 | SENSOR WATER |
| 4 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 5 | 8014143 | PIPE SOCKET M14X1,5 |
| 6 | 42545573 | FUEL FILT.SUPPORT |
| 7 | 42545574 | THREADED UNION |
| 8 | 8040177 | RETAINER |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 16609424 | SCREW M10x32 MM |
| 12 | 98404882 | PIPE SOCKET Ø8 MM |
| 13 | 17038131 | HEXAGON NUT M10 |
| 14 | 16504114 | ELBOW COUPLING M18X1,5 |
