PUC78ENTD20.20A100

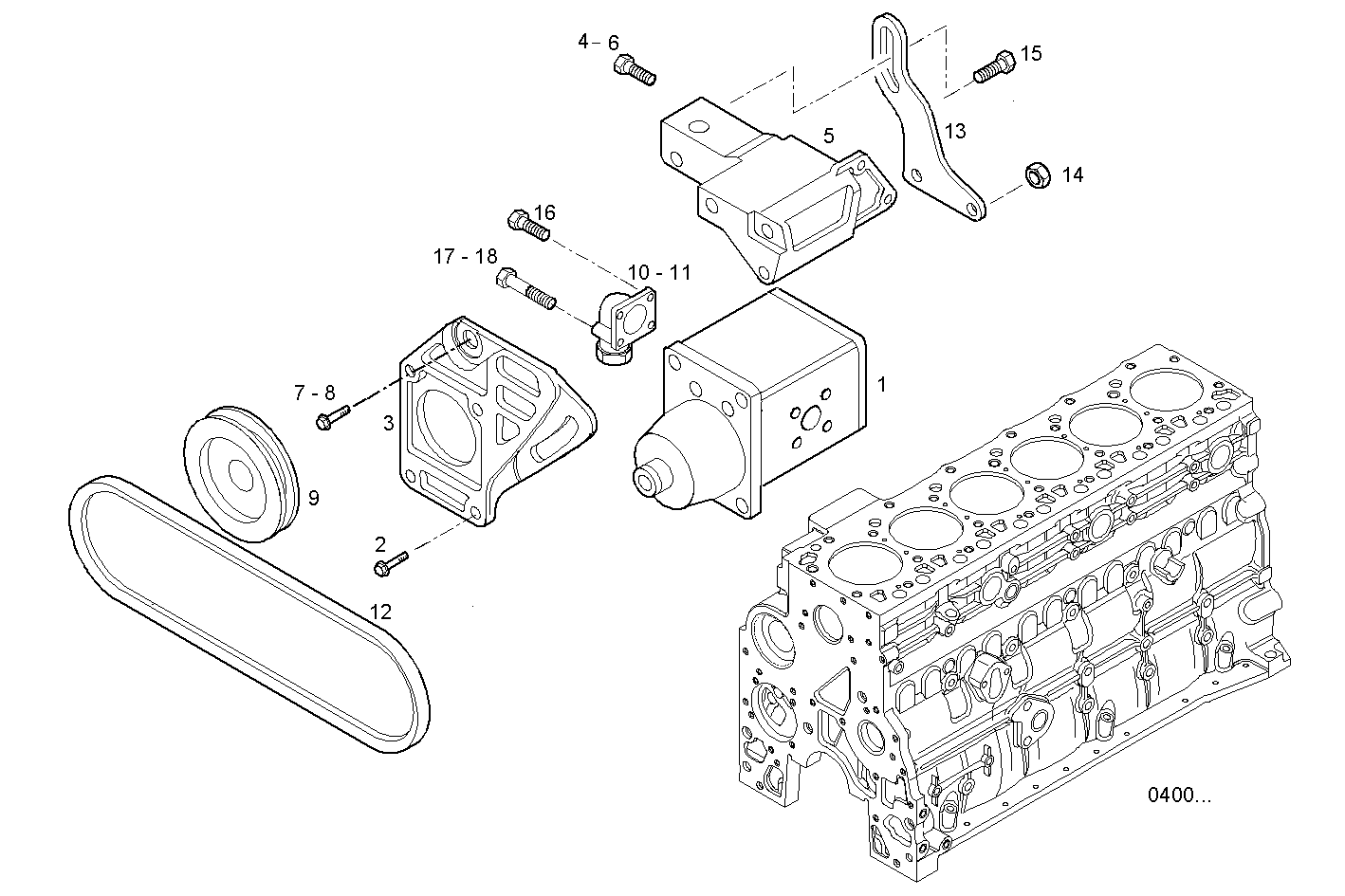

4270.001 HYDRAULIC PUMP

Iveco/FPT HYDRAULIC PUMP

Item Part number Description
1 500387680 HYDRAULIC PUMP
2 16586425 HEXAGON BOLT M8X25 MM
3 500387653 SUPPORT PLATE
4 16677734 HEXAGON BOLT M12X25 MM
5 504019287 SUPPORT
6 16677934 HEXAGON BOLT M12X35 MM
7 16600024 HEXAGON BOLT M12X160 MM
8 16600124 HEXAGON BOLT M12X1,75X180 MM
9 500387665 PULLEY
10 98437006 ELBOW COUPLING
11 98437008 ELBOW COUPLING
12 500387663 V-BELT
13 500393315 RETAINER
14 17044821 NUT M10
15 18139424 HEXAGON BOLT M10X20 MM
16 4899110 HEXAGON BOLT
17 4899147 HEXAGON BOLT
18 4899148 HEXAGON BOLT
