PUC78ENTD20.20A100

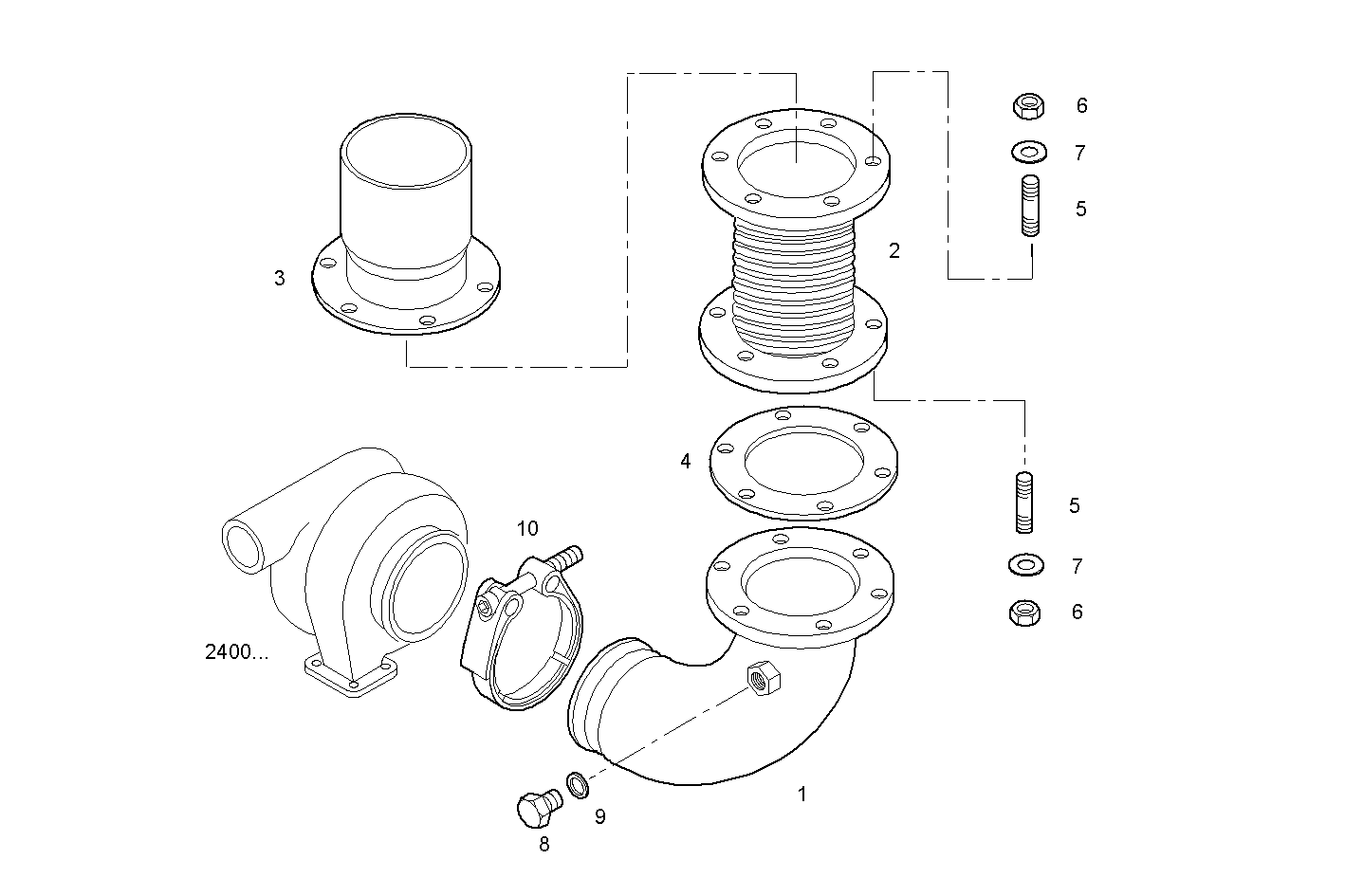

A40030522 TURNING EXHAUST ELBOW WITH FLEXIBLE

Iveco/FPT TURNING EXHAUST ELBOW WITH FLEXIBLE

Item Part number Description
1 8036130 EXHAUST ELBOW
2 8024880 EXHAUST BELLOWS
3 8039911 FLANGE
4 8009600 GASKET
5 16731234 STUD M10X1,5X25
6 17038131 HEXAGON NUT M10
7 17090174 SPRING WASHER Ø10X20 MM
8 16992211 THREADED PLUG M12X1,5
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 504073261 CLIP dia. 104
