PUC78ENTD20.20A100

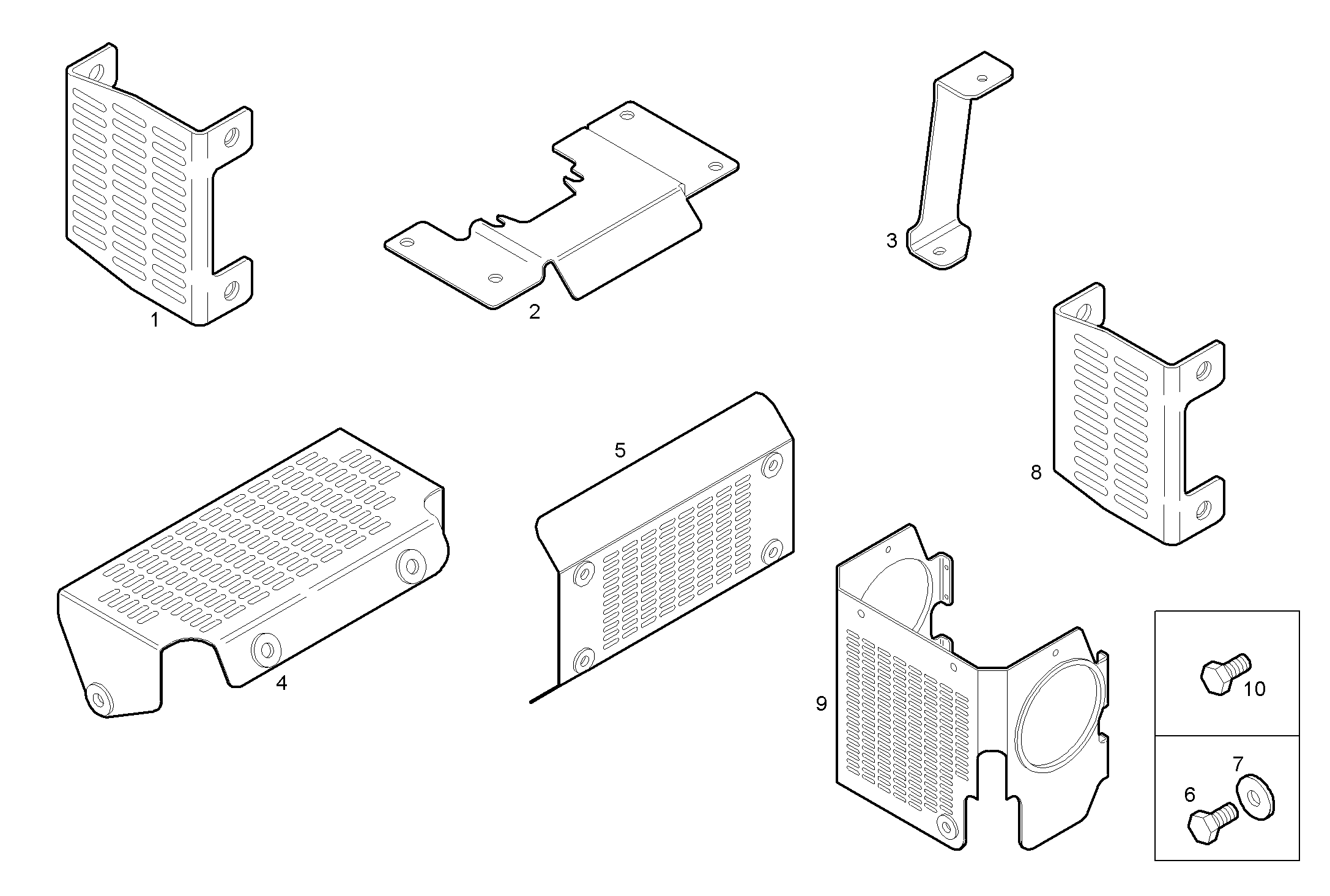

A48040511 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8037196 | PROTECTION |
| 2 | 8037197 | FASTENING BRACKET |
| 3 | 8051808 | FASTENING BRACKET |
| 4 | 8037325 | PROTECTION |
| 5 | 8037382 | PROTECTION |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 8 | 8044948 | PROTECTION |
| 9 | 8051812 | PROTECTION |
| 10 | 16605524 | HEXAGON BOLT M8X20 MM |
