PUN45MSTX20.50A100

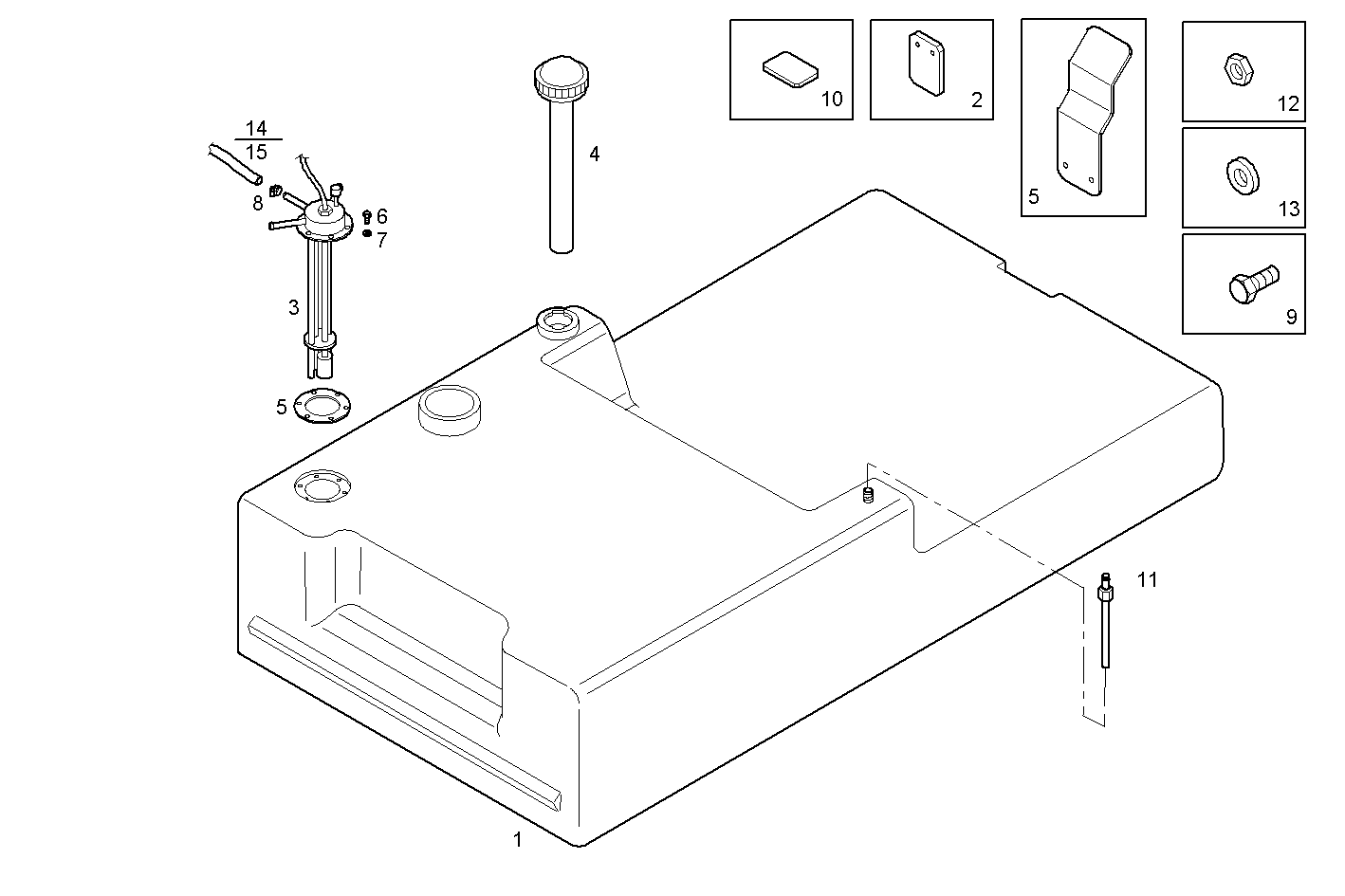

A29130501 FUEL TANK 180 LTR.
| Item | Part number | Description |
|---|---|---|
| 1 | 503111073 | TANK |
| 2 | 8039694 | PLATE |
| 3 | 503111107 | CONTROL ASSEMBLY |
| 4 | 8031503 | FUEL LEVEL GAUGE |
| 5 | 8039693 | PLATE |
| 6 | 16687824 | CYLIND-HEAD SCREW |
| 7 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
| 8 | 18087993 | CLIP Ø8/16 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 503110491 | SPACING BAR |
| 11 | 503111101 | FUEL LINE |
| 12 | 17037925 | HEXAGON NUT M8X1,25 |
| 13 | 17089574 | WASHER Ø8X16 MM |
| 14 | 17724687 | HOSE |
| 15 | 19056687 | RUBBER HOSE Ø7,5 MM |
