Catalogue Menu
PUN67ENTX20.00A100

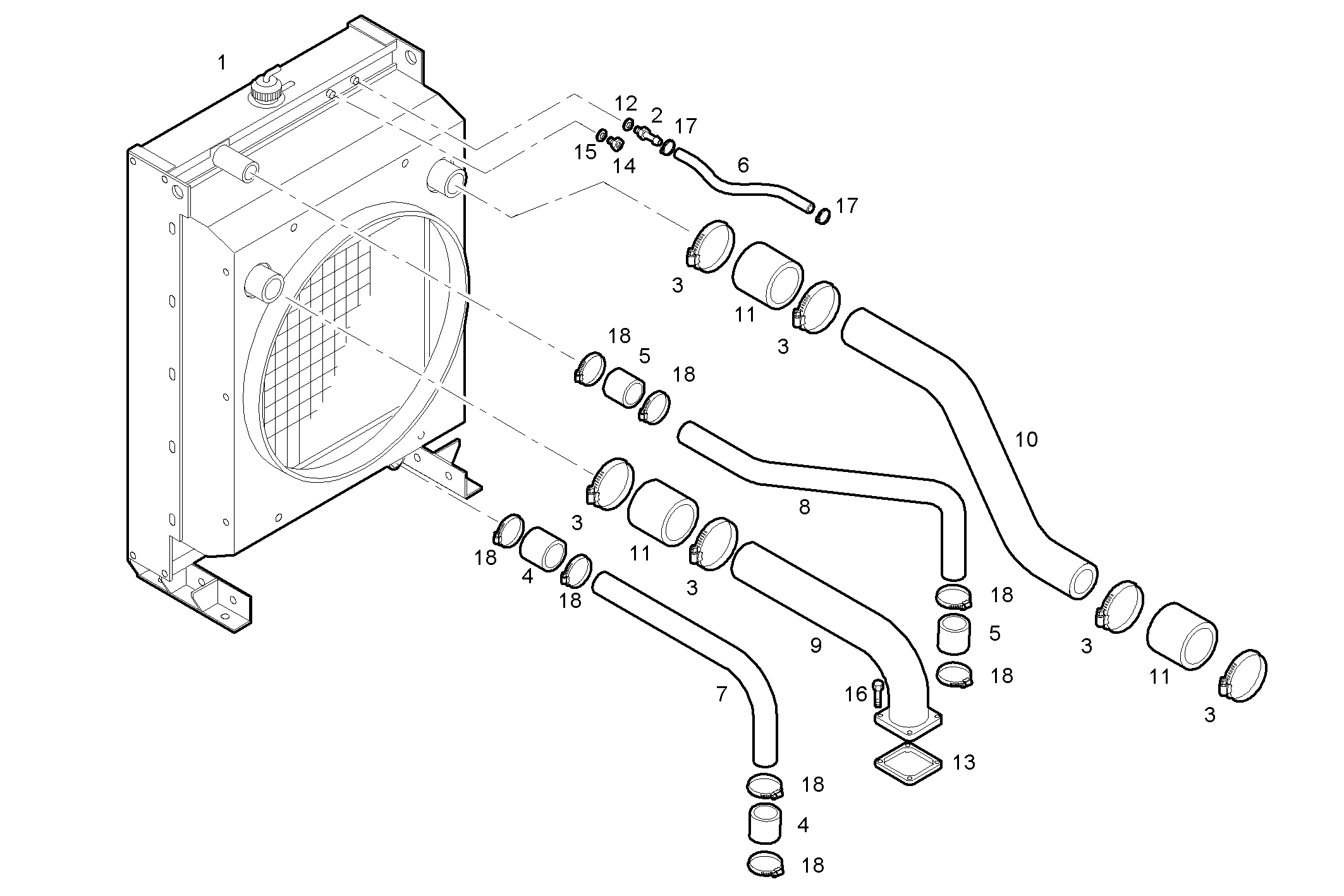

A22010521 RADIATOR 2 CIRCUITS AIR/WATER
Item | Part number | Description |
---|---|---|
1 | 8044989 | WATER RADIATOR |
2 | 4935134 | OIL LINE |
3 | 18089191 | CLIP |
4 | 98433328 | WATER HOSE |
5 | 8043775 | WATER HOSE |
6 | 8034635 | BREATHER PIPE |
7 | 8044968 | WATER PIPE |
8 | 8044969 | WATER PIPE |
9 | 8035529 | AIR PIPE/DUCT |
10 | 8035531 | AIR PIPE/DUCT |
11 | 98443275 | TURBOCHARGER HOSE |
12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
13 | 4899921 | FLAT ENGINE GASKET |
14 | 4935727 | PIPE SOCKET |
15 | 10284460 | SEAL GASKET Ø10X16 MM |
16 | 16673735 | HEXAGON BOLT M8X25 MM |
17 | 18087993 | CLIP Ø8/16 MM |
18 | 17764892 | PIPE CLIP Ø40-60 MM |
