PUN67ENTX20.00A100
A38100509 ELECTRIC WIRING - 12V

Iveco/FPT ELECTRIC WIRING

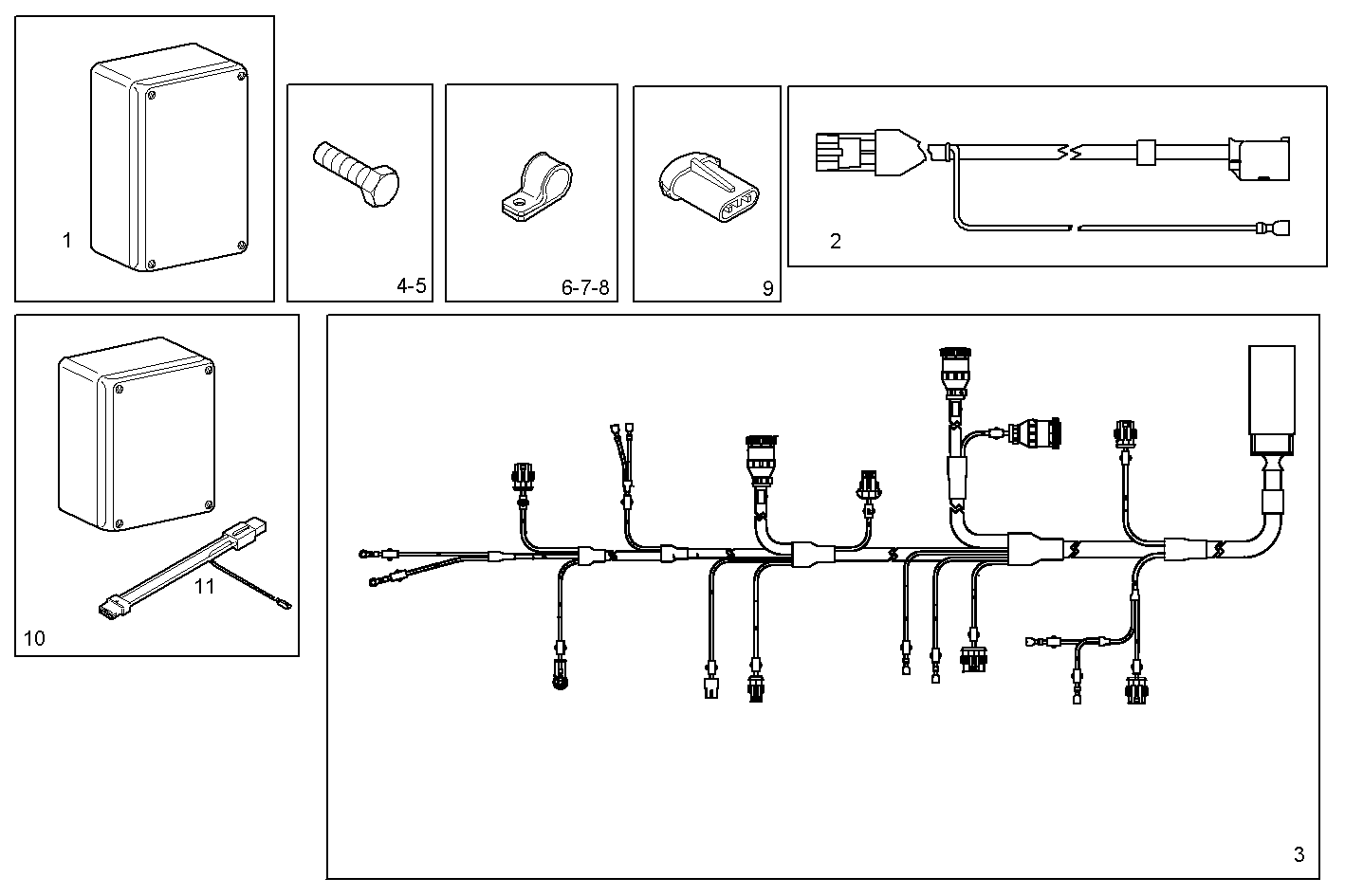

Item Part number Description
1 8047354 SWITCHGEAR
2 8037862 EXTENSION for alternator
3 8044375 ENGINE HARNESS
4 18139424 HEXAGON BOLT M10X20 MM
5 16586225 HEXAGON BOLT M8X1,25X16 MM
6 4936279 CLIP
7 4936278 CLIP
8 10450090 PIPE CLIP Ø8 MM
9 8045095 CONNECTION [FROM 12/09/08]
10 8052674 SWITCHGEAR
11 8052686 WIRE/CABLE
