S23ENS424.00A001

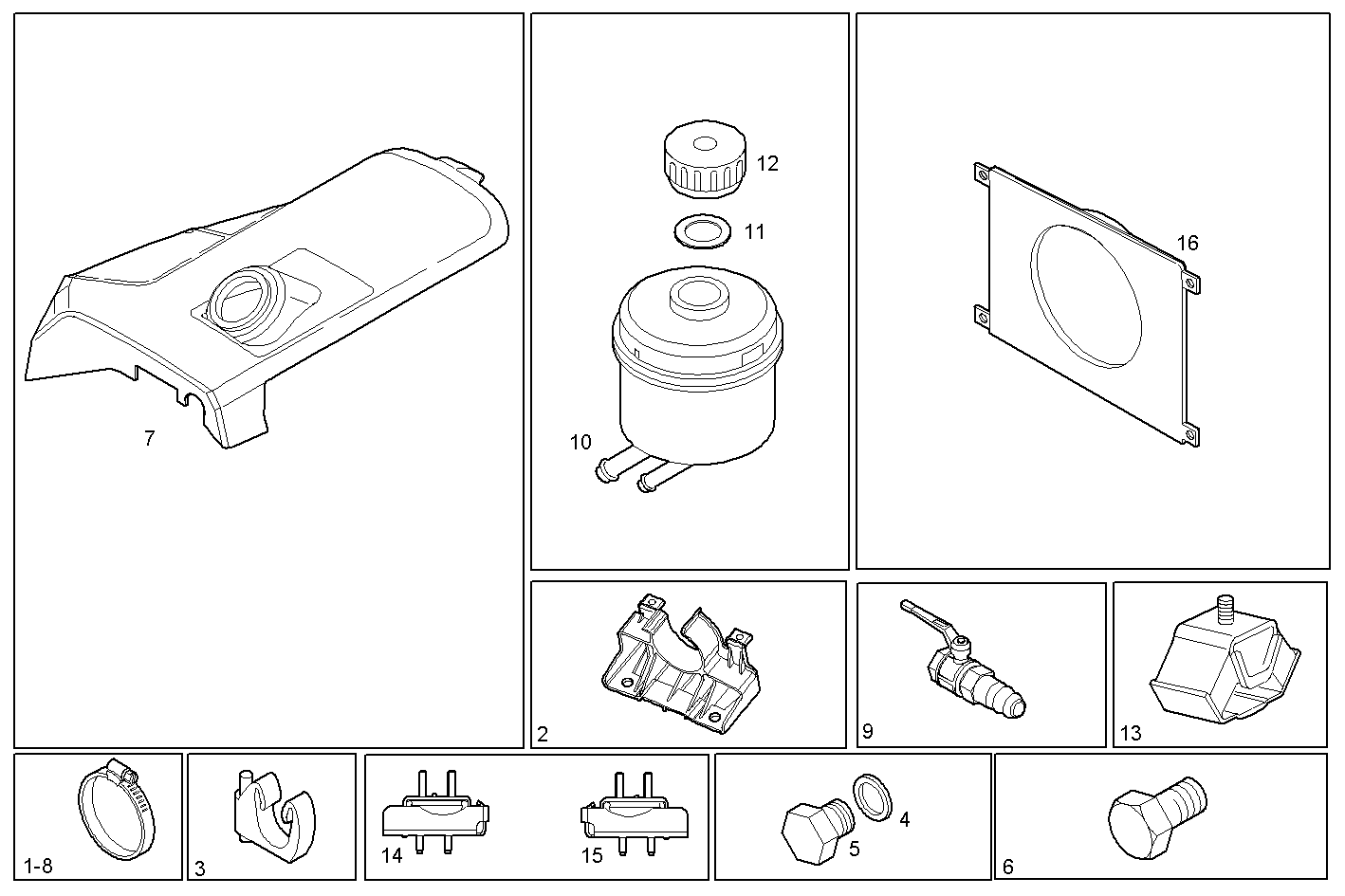

8600.327/05 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 18088992 | CLIP |
| 2 | 504066074 | FASTENING BRACKET |
| 3 | 500350985 | SPRING CLAMP |
| 4 | 16508460 | WASHER 22x27x1,5 |
| 5 | 16992611 | THREADED PLUG M22X1,5 |
| 6 | 17936007 | HEXAGON BOLT |
| 7 | 504034872 | CYL. HEAD COVER |
| 8 | 18088892 | CLIP |
| 9 | 77363342 | DRAIN COCK |
| 10 | 504073722 | OIL TANK ASSY |
| 11 | 42546129 | WASHER |
| 12 | 42547928 | LOCK PLUG |
| 13 | 504085410 | DOWEL |
| 14 | 504046292 | ENGINE SILENTBLOCK RIGHT |
| 15 | 504046294 | ENGINE SILENTBLOCK LEFT |
| 16 | 93814558 | AIR HOOD |
