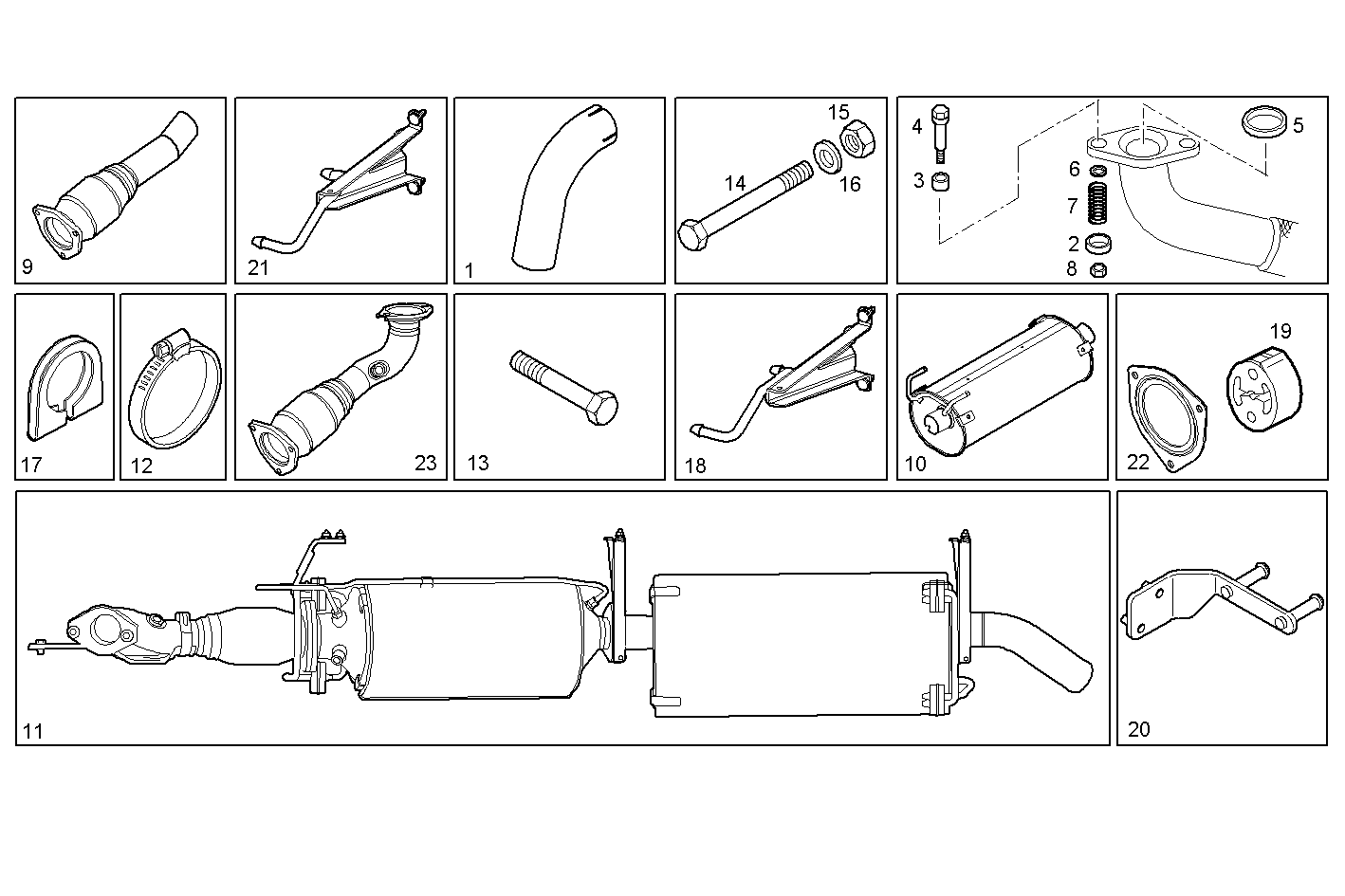

S23ENS424.00A002
8600.327/03 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
500314665 |
TAIL PIPE |
|
2 |
9150917480 |
COVER |
|
3 |
9150951680 |
BUSH |
|
4 |
9152127080 |
SCREW |
|
5 |
9603895480 |
RING |
|
6 |
9603945980 |
WASHER |
|
7 |
9607970680 |
SPRING |
|
8 |
16750125 |
HEXAGON NUT M6 |
|
9 |
504141541 |
CATALYTIC SILENCER |
|
10 |
504141545 |
SILENCER |
|
11 |
504141518 |
SILENCER ASSY |
|
12 |
8582510 |
CLIP |
|
13 |
16587125 |
HEXAGON BOLT M10X25 MM |
|
14 |
16598425 |
HEXAGON BOLT M8X110 MM |
|
15 |
16750225 |
HEXAGON NUT M8 |
|
16 |
16889624 |
WASHER |
|
17 |
8585923 |
CLIP |
|
18 |
500329484 |
FASTENING BRACKET |
|
19 |
500329485 |
RUBBER LUG |
|
20 |
504141543 |
RETAINER |
|
21 |
504141544 |
RETAINER |
|
22 |
504131270 |
GASKET D.P.F./SILENCER |
|
23 |
504141540 |
EXHAUST PIPE |
