S23ENS424.20A002

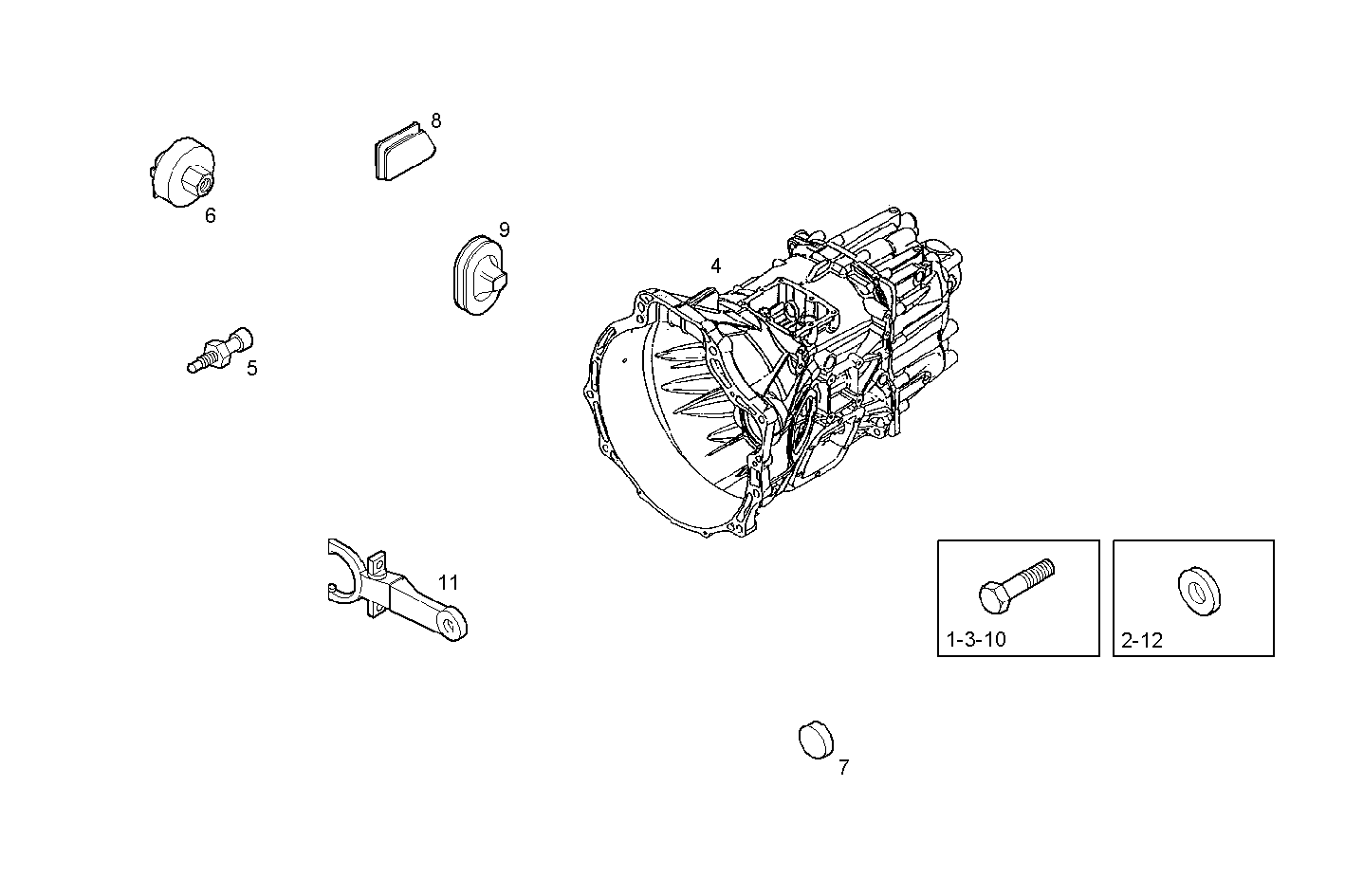

5301.008 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 16603525 | SCREW M6X12 MM |
| 2 | 17091074 | WASHER Ø12X24X2,8 MM |
| 3 | 15540924 | HEXAGON BOLT |
| 4 | 8870921 | GEAR BOX/I 6S-300 |
| 5 | 41221269 | ELECTRON.TRANSMITT |
| 6 | 500335678 | REAR LIGHT SWITCH |
| 7 | 504066904 | PLUG |
| 8 | 500361500 | RUBBER PLUG |
| 9 | 99479450 | PROTECTIVE HOOD |
| 10 | 16586625 | HEXAGON BOLT M8X35 MM |
| 11 | 99479447 | SUPPORT |
| 12 | 17088474 | WASHER Ø6X12 MM |
