S23ENS424.20A004

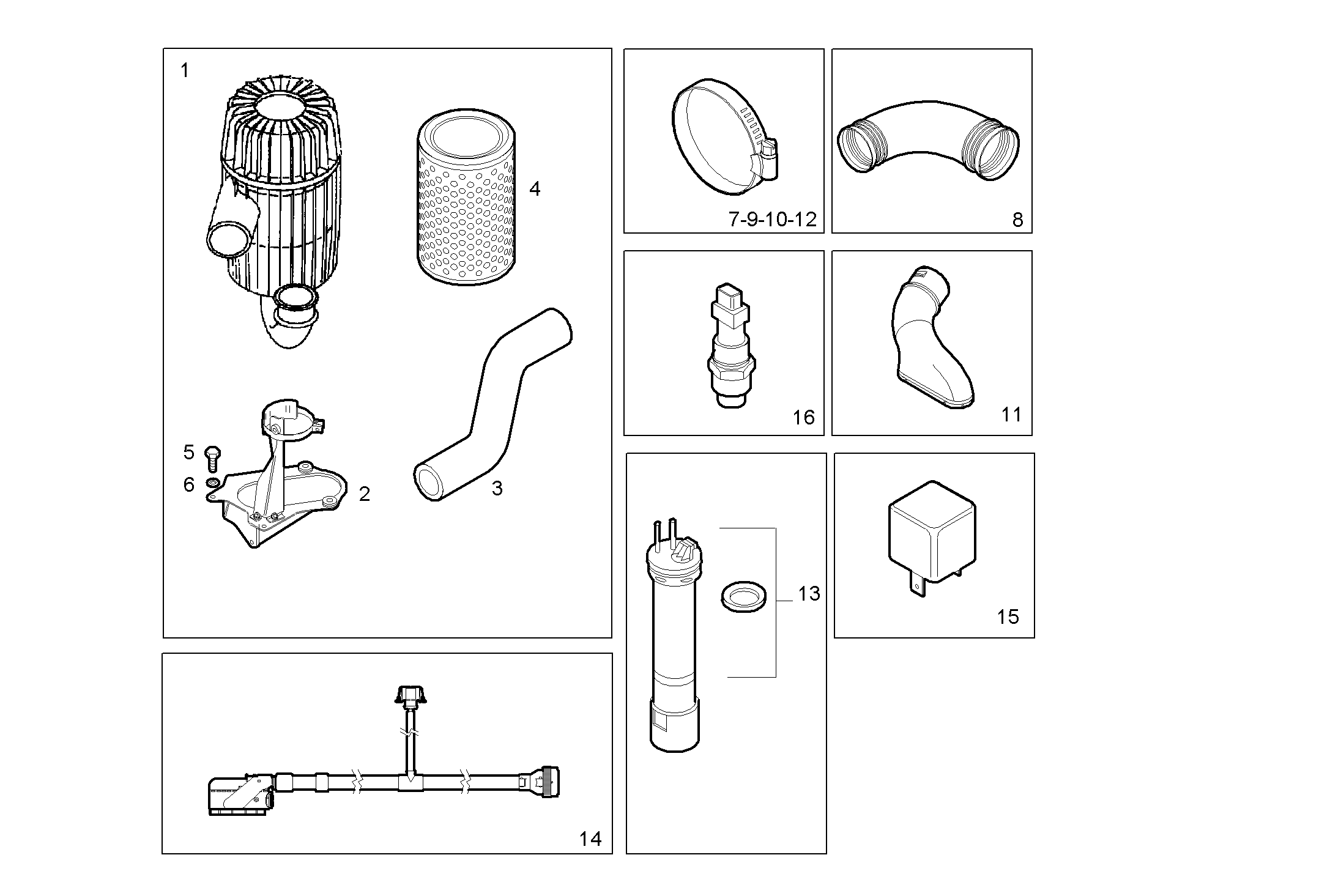

8600.345/01 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504054587 | AIR CLEANER ASSY |
| 2 | 504054585 | FASTENING BRACKET |
| 3 | 500396509 | BREATHER PIPE |
| 4 | 1903669 | AIR FILTER ELEMENT |
| 5 | 16604024 | HEXAGON BOLT M6X35 MM |
| 6 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
| 7 | 18088493 | CLIP |
| 8 | 504135453 | SUCTION LINE |
| 9 | 18088892 | CLIP |
| 10 | 18089191 | CLIP |
| 11 | 504193548 | AIR INDUCT.FILTER |
| 12 | 17765391 | CLIP Ø90/110 MM |
| 13 | 504055613 | FUEL LEVEL GAUGE |
| 14 | 8045773 | ENGINE HARNESS |
| 15 | 500341925 | RELAY 50A - for EDC |
| 16 | 500365771 | SWITCH |
