S23ENSC20.10A004

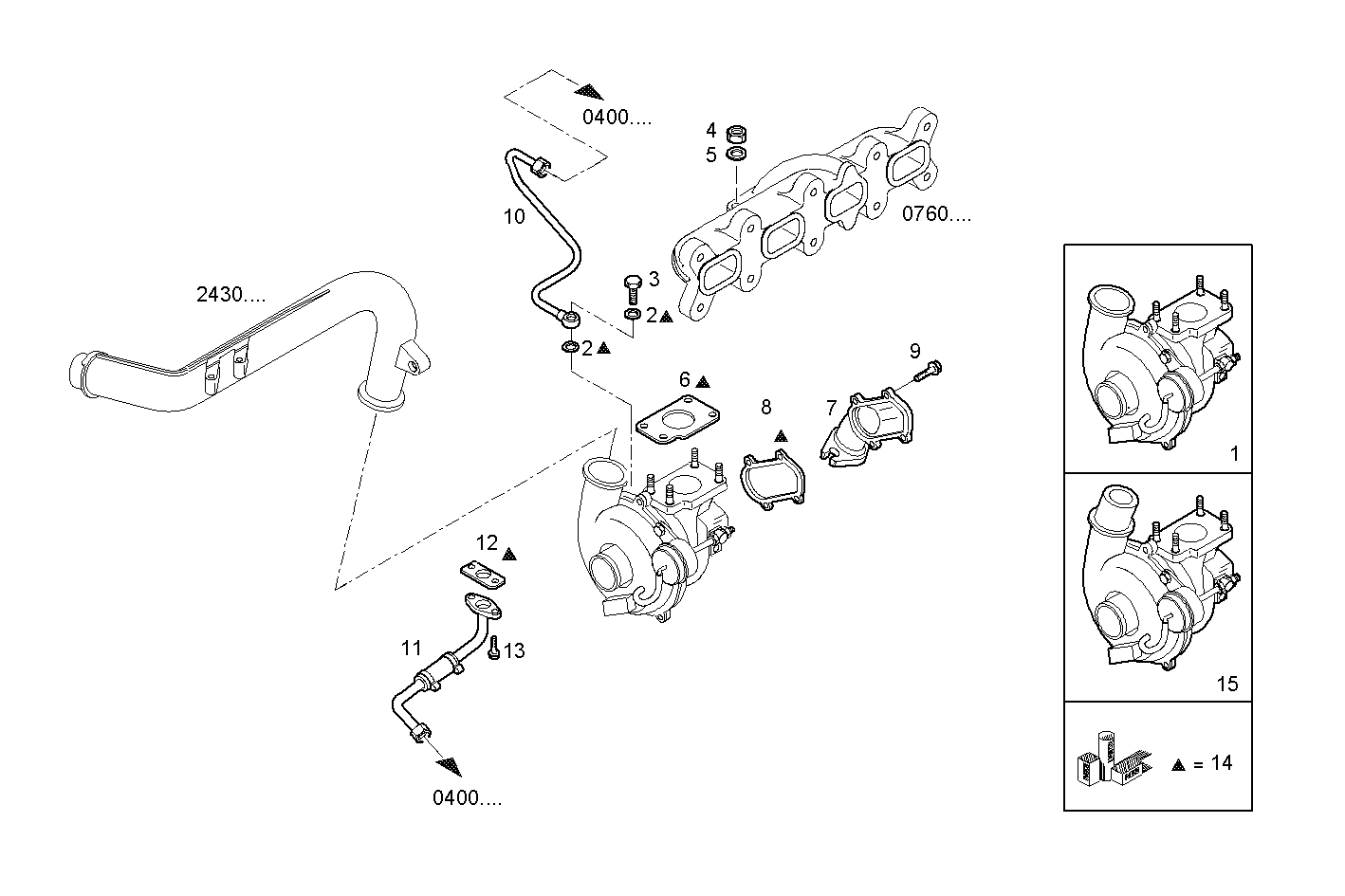

2400.219 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504014911 | TURBOCHARGER ASSY |
| 2 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 3 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 4 | 500322677 | HEXAGON NUT M8 |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 500378462 | EXH. MANIFOLD GKT |
| 7 | 504001093 | AIR PIPE/DUCT |
| 8 | 98484659 | FLAT ENGINE GASKET |
| 9 | 16586424 | HEXAGON BOLT M8X25 MM |
| 10 | 504044738 | OIL LINE |
| 11 | 504017521 | OIL LINE |
| 12 | 500370706 | FLAT ENGINE GASKET |
| 13 | 16585824 | HEXAGON BOLT M6X20 MM |
| 14 | 504049364 | KIT-SEAL.GASKETS |
| 15 | 504071262 | TURBOCHARGER [FROM # 101866] |
