S23ENSC20.10A006
8600.225/02 ACCESSORIES [FROM 15/04/05] [FROM 15/04/05]

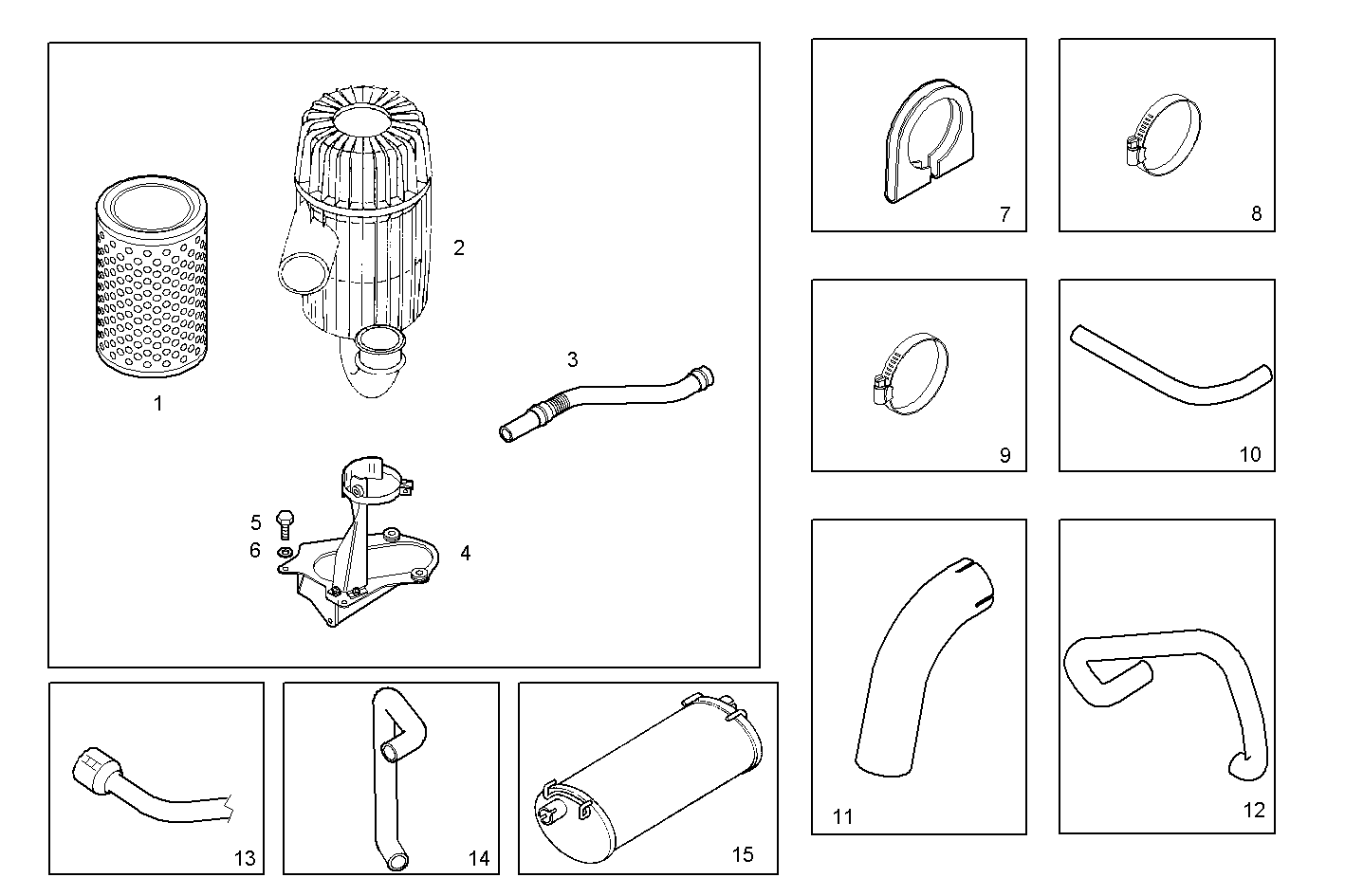

Item | Part number | Description |
---|---|---|
1 | 1903669 | AIR FILTER ELEMENT |
2 | 504054587 | AIR CLEANER ASSY |
3 | 500396509 | BREATHER PIPE |
4 | 504054585 | FASTENING BRACKET |
5 | 16604024 | HEXAGON BOLT M6X35 MM |
6 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
7 | 8585923 | CLIP |
8 | 18089191 | CLIP |
9 | 13127770 | CLIP |
10 | 504018469 | WATER HOSE |
11 | 500314665 | TAIL PIPE |
12 | 504044686 | WATER HOSE |
13 | 504098506 | WATER HOSE |
14 | 504032760 | SUCTION LINE |
15 | 500329483 | SILENCER |
