S23ENSC24.10A007

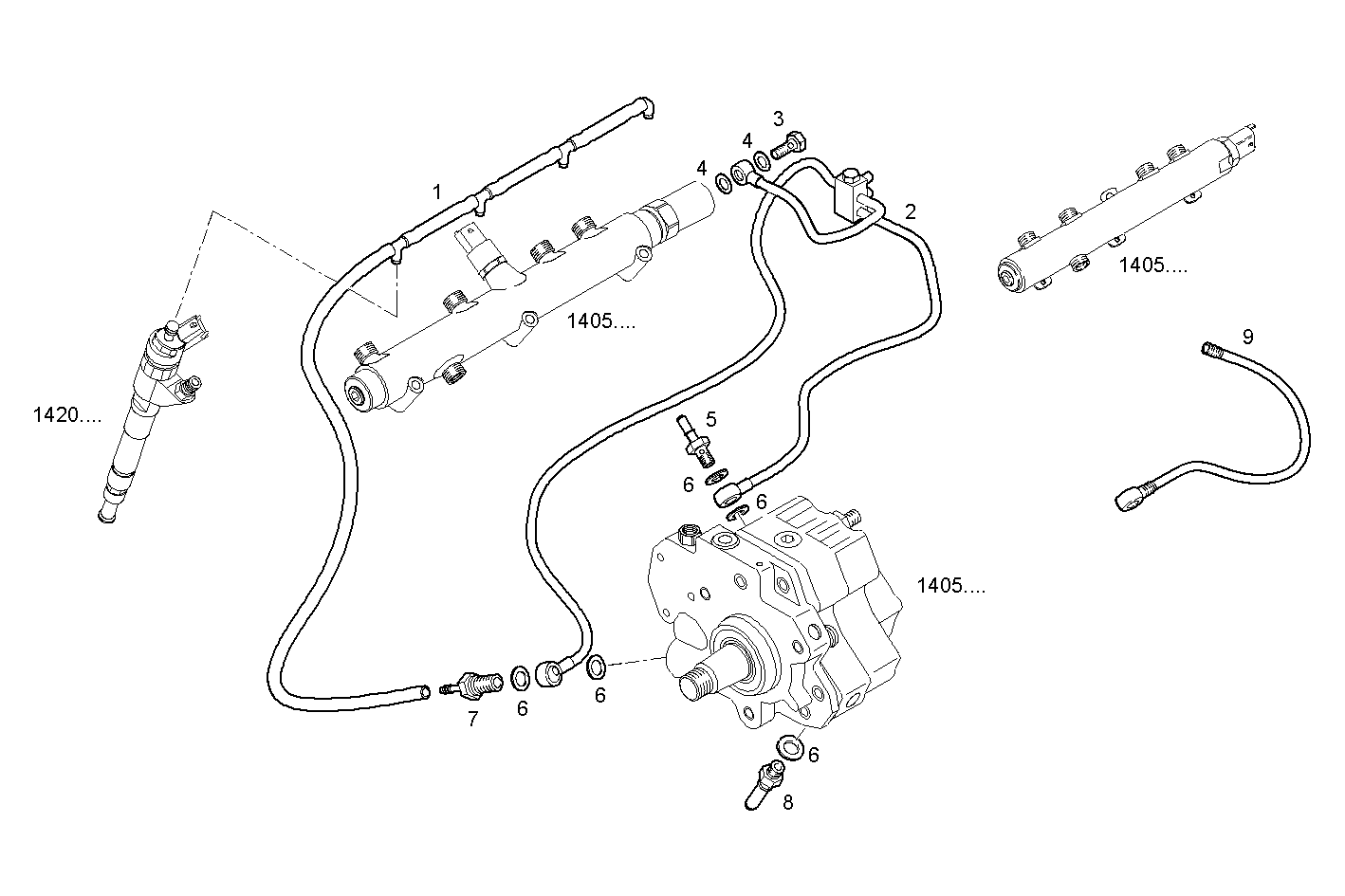

2030.254 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 500392262 | FUEL LINE |
2 | 504023669 | FUEL LINE [UP TO # 109032] |
3 | 16511414 | SCREW CONNECTOR |
4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
5 | 504017300 | SCREW CONNECTOR |
6 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
7 | 500391535 | SCREW CONNECTOR M12X1,5 |
8 | 500398308 | SCREW CONNECTOR M12X1,5 |
9 | 504088125 | FUEL LINE [FROM # 109033] |
