S23ENSC24.10A009

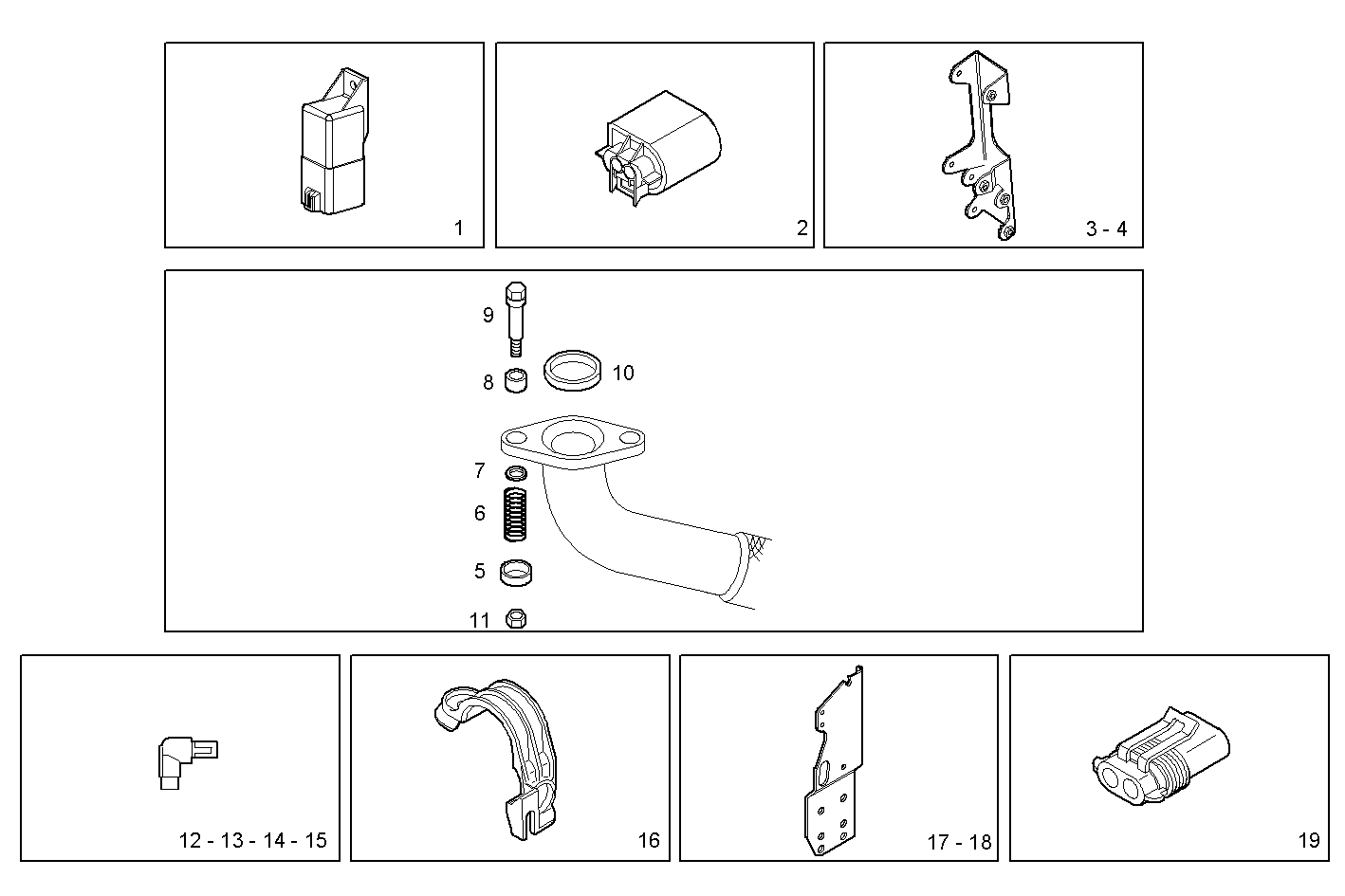

8600.181 ACCESSORIES
Item | Part number | Description |
---|---|---|
1 | 504013085 | ELECTR.CONTR.UNIT PREHEATER CONTROL |
2 | 8030896 | CONNECTION assy for alternator |
3 | 99487945 | RETAINER LEFT |
4 | 500333124 | RETAINER RIGHT |
5 | 9150917480 | COVER |
6 | 9607970680 | SPRING |
7 | 9603945980 | WASHER |
8 | 9150951680 | BUSH |
9 | 9152127080 | SCREW |
10 | 9603895480 | RING |
11 | 14058419 | NUT M6 |
12 | 99466089 | WIRE CONNECTOR |
13 | 99467579 | TERMINAL |
14 | 99472719 | PROTECTION |
15 | 98458120 | GASKET |
16 | 504045490 | FASTENING BRACKET |
17 | 504052019 | RETAINER LEFT |
18 | 504052020 | RETAINER RIGHT |
19 | 8033710 | CONNECTION ASSY |
