S23ENSC24.10A009

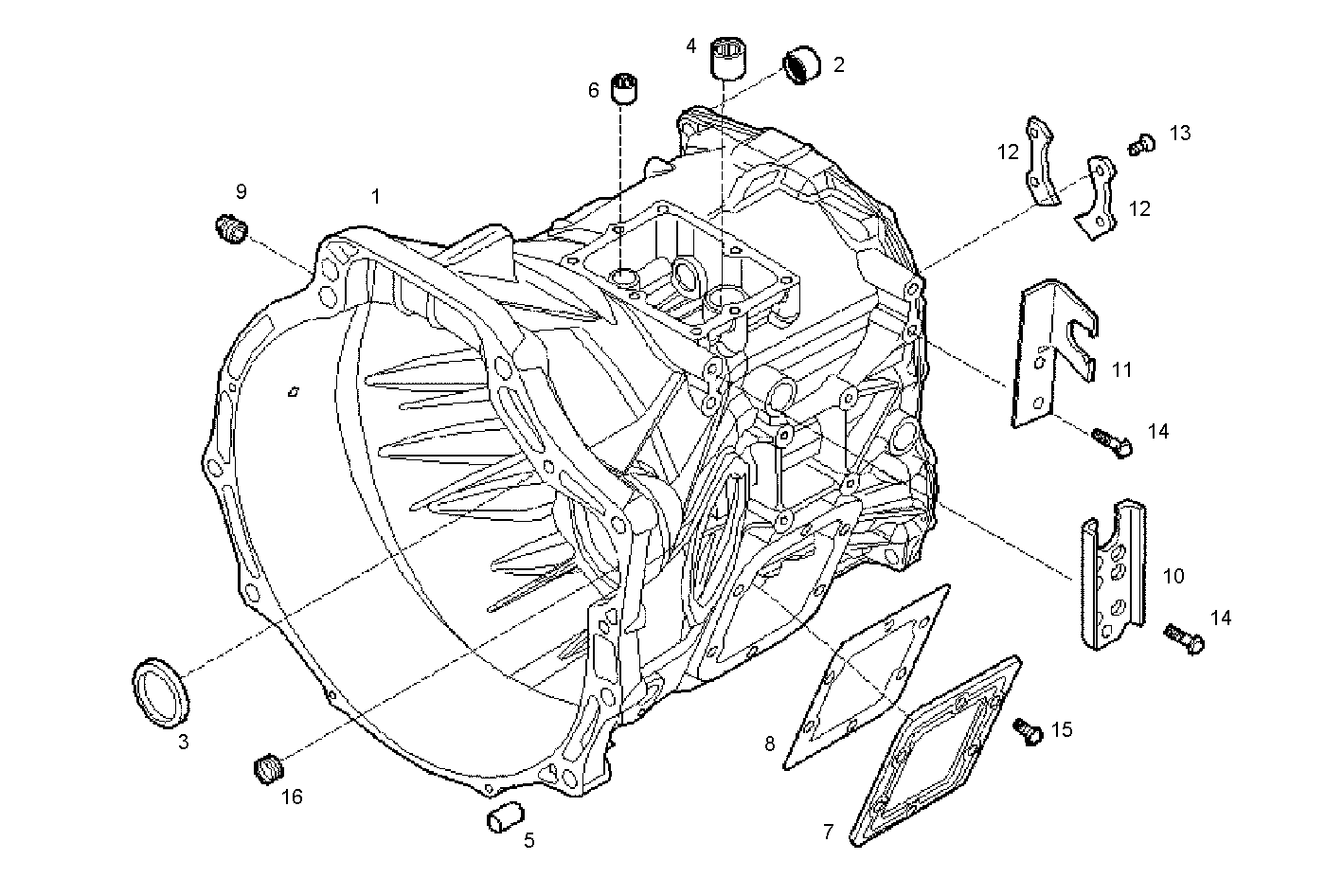

A27600501/03 TRANSMISSION - (components)

Iveco/FPT TRANSMISSION

Item Part number Description
1 8869637 TRANSMISSION CASE
2 8868936 BALL CAGE
3 8870829 SHAFT SEAL
4 8870273 GEARBOX BEARINGS
5 8869098 DOWEL PIN M12X1
6 8869714 ROLLER CAGE
7 8859471 SIDE G.BOX COVER
8 8870275 FLAT GEARBOX GKT
9 42534935 THREADED PLUG M22X1,5
10 8868800 SUPPORT
11 8870507 SUPPORT
12 8869719 LOCKING PLATE
13 8871238 C'SUNK SCREW M6X16 MM
14 93160889 HEXAGON BOLT M8X25 MM
15 1127052 HEXAGON BOLT M10X20 MM
16 8870828 SHAFT SEAL
