S30ENT422.00A004

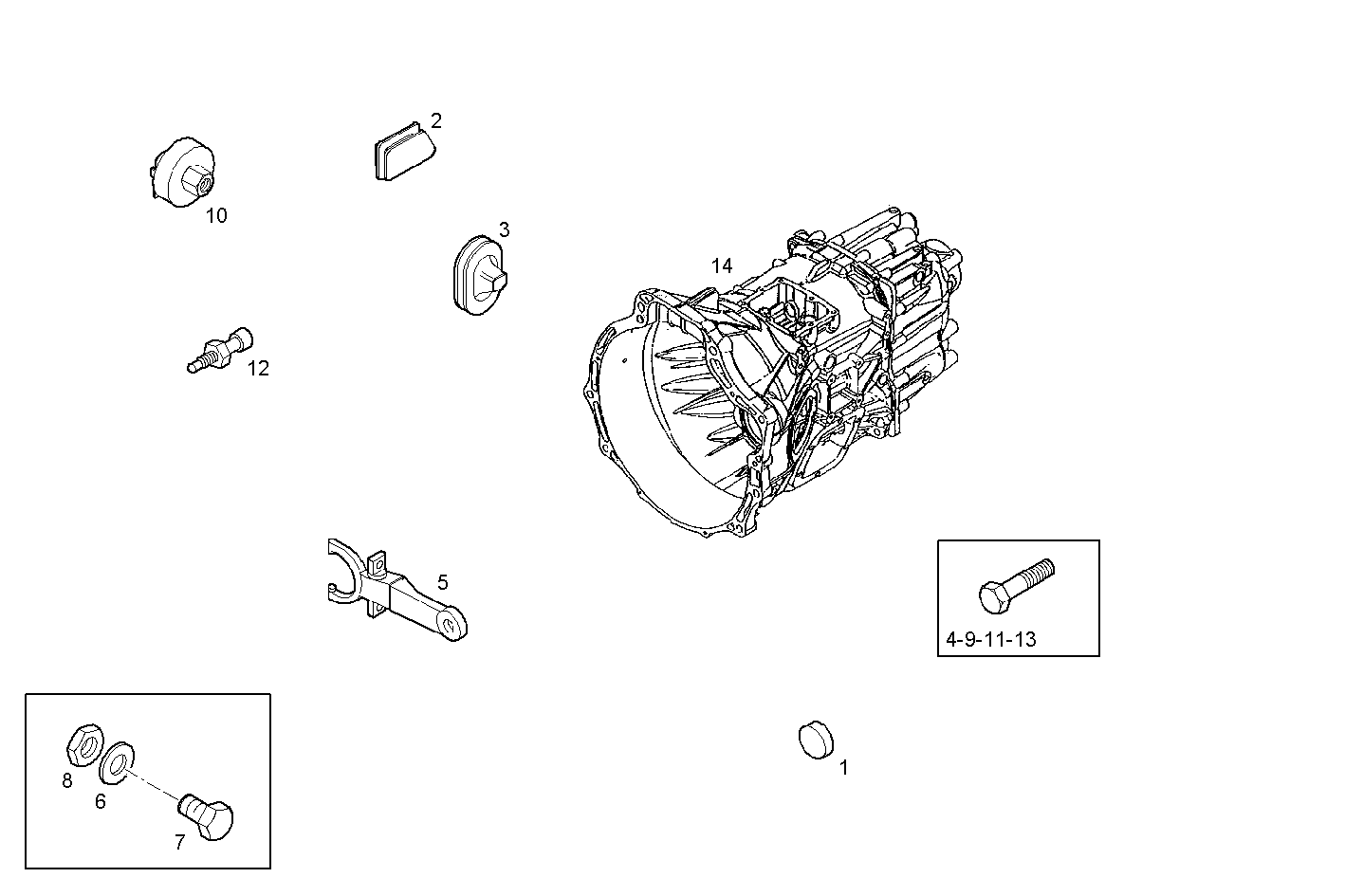

5301.014 TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 504066904 | PLUG |
| 2 | 500361500 | RUBBER PLUG |
| 3 | 99479450 | PROTECTIVE HOOD |
| 4 | 16586625 | HEXAGON BOLT M8X35 MM |
| 5 | 99479447 | SUPPORT |
| 6 | 17097324 | WASHER Ø12X24 MM |
| 7 | 16290334 | HEXAGON BOLT M12X1,25X55 MM |
| 8 | 17038425 | HEXAGON NUT M12 (8) |
| 9 | 16596924 | HEXAGON BOLT M6X10 MM |
| 10 | 500335678 | REAR LIGHT SWITCH |
| 11 | 16610924 | HEXAGON BOLT M12X90 MM |
| 12 | 41221269 | ELECTRON.TRANSMITT |
| 13 | 16678135 | HEXAGON BOLT M12X45 MM |
| 14 | 8871920 | GEAR BOX/I |
