S30ENT422.10P002

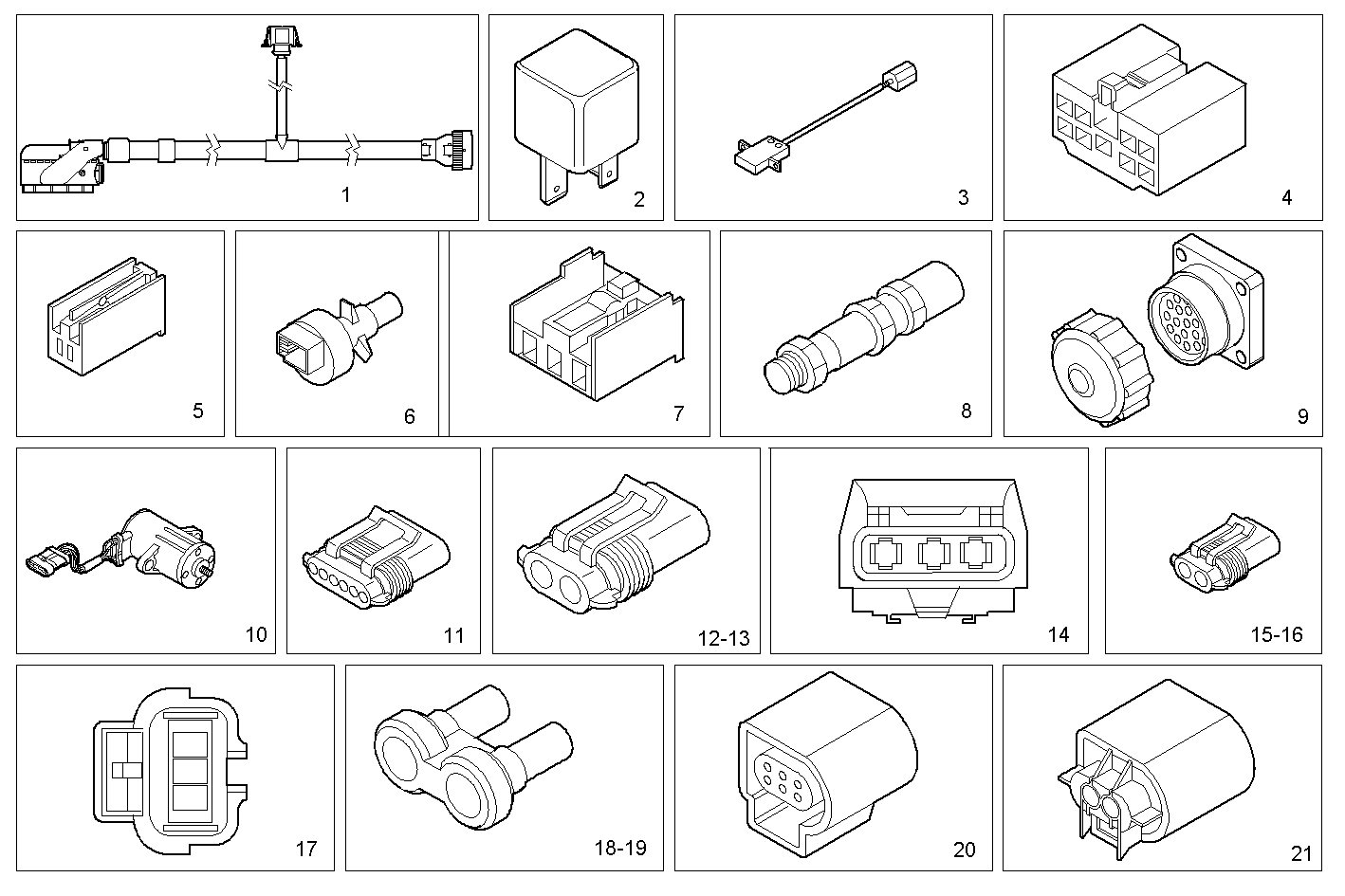

8600.223 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8045773 | ENGINE HARNESS |
| 2 | 500341925 | RELAY 50A - for EDC |
| 3 | 99464594 | SWITCH for "Blink code" |
| 4 | 8031431 | WIRE CONNECTOR assy 5 pin female |
| 5 | 8031429 | CONNECTION ASSY |
| 6 | 500365771 | SWITCH |
| 7 | 8031430 | CONNECTION ASSY |
| 8 | 500319244 | LIGHT STOP SWITCH |
| 9 | 8034787 | WIRE CONNECTOR ASSY |
| 10 | 8043732 | POTENTIOMETER |
| 11 | 8033713 | CONNECTION |
| 12 | 8033709 | CONNECTION ASSY |
| 13 | 8030573 | CONNECTION ASSY |
| 14 | 8030575 | CONNECTION ASSY |
| 15 | 8044704 | WIRE CONNECTOR ASSY |
| 16 | 8044707 | CONNECTION |
| 17 | 8045846 | CONNECTION ASSY |
| 18 | 8045169 | CONNECTION ASSY |
| 19 | 8045170 | CONNECTION ASSY |
| 20 | 8045925 | CONNECTION |
| 21 | 8030896 | CONNECTION assy for alternator |
