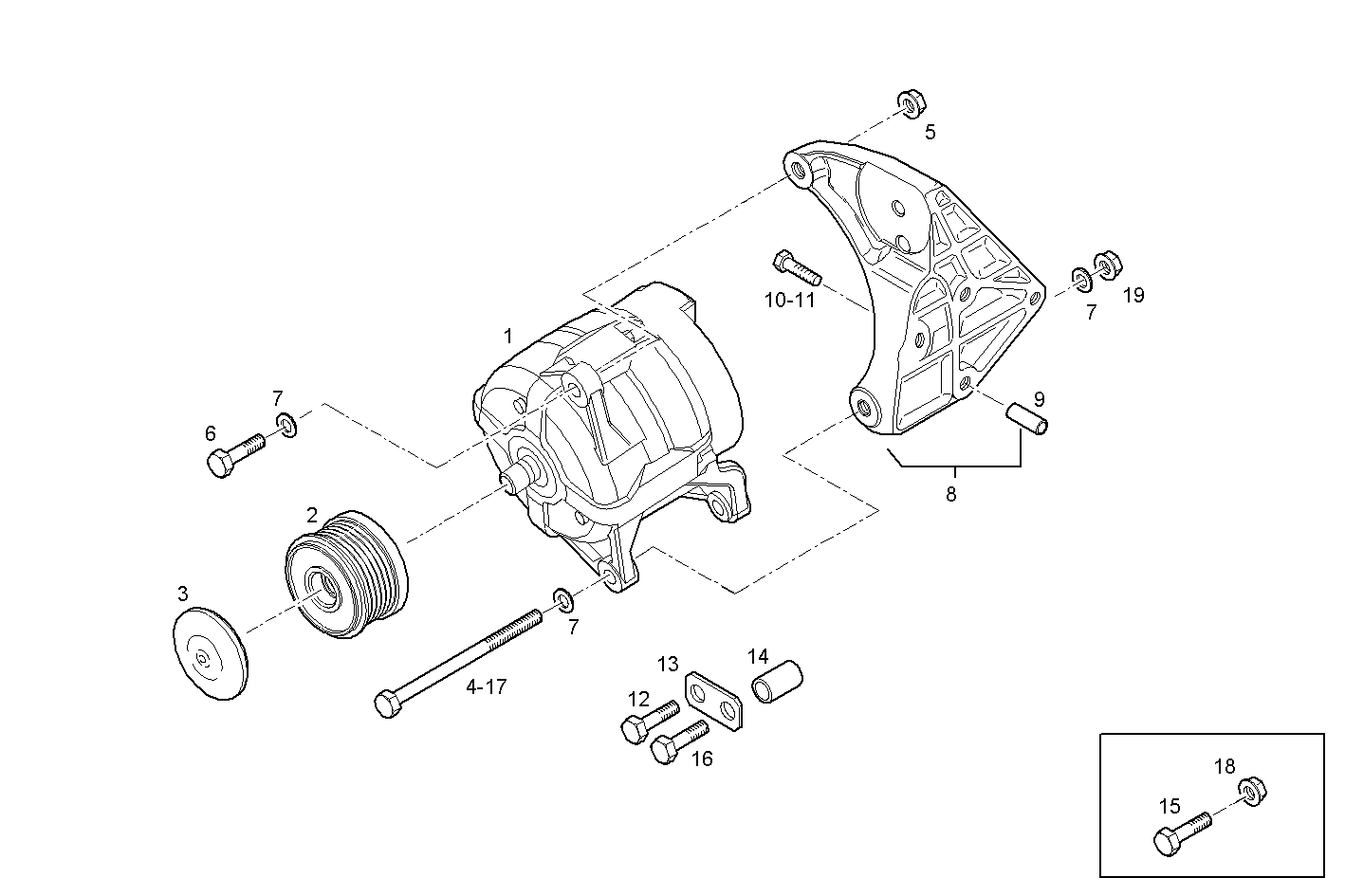

| Item |
Part number |
Description |
|
1 |
4892320 |
ALTERNATOR ASSY |
|
2 |
504088796 |
GENERATOR PULLEY |
|
3 |
504094102 |
COVER |
|
4 |
15972424 |
HEXAGON BOLT M10X1,25X130 MM |
|
5 |
14059411 |
HEXAGON NUT M10X1,25 |
|
6 |
16587325 |
HEXAGON BOLT M10X35 MM |
|
7 |
17097124 |
WASHER 10x21 |
|
8 |
504115734 |
GENERATOR SUPPORT [FROM # 259036] |
|
9 |
500371139 |
DOWEL PIN |
|
10 |
16297721 |
HEXAGON BOLT M8x77 |
|
11 |
16586825 |
HEXAGON BOLT M8X1.25X45 MM |
|
13 |
8029451 |
RETAINER |
|
14 |
4742408 |
SPACER BUSH |
|
15 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
16 |
16587724 |
HEXAGON BOLT M10X55 MM |
|
17 |
11108821 |
HEXAGON BOLT M10X130 MM |
|
18 |
17045835 |
NUT M10 |
|
19 |
17044825 |
HEXAGON NUT M10 |
