S30ENT422.30A001

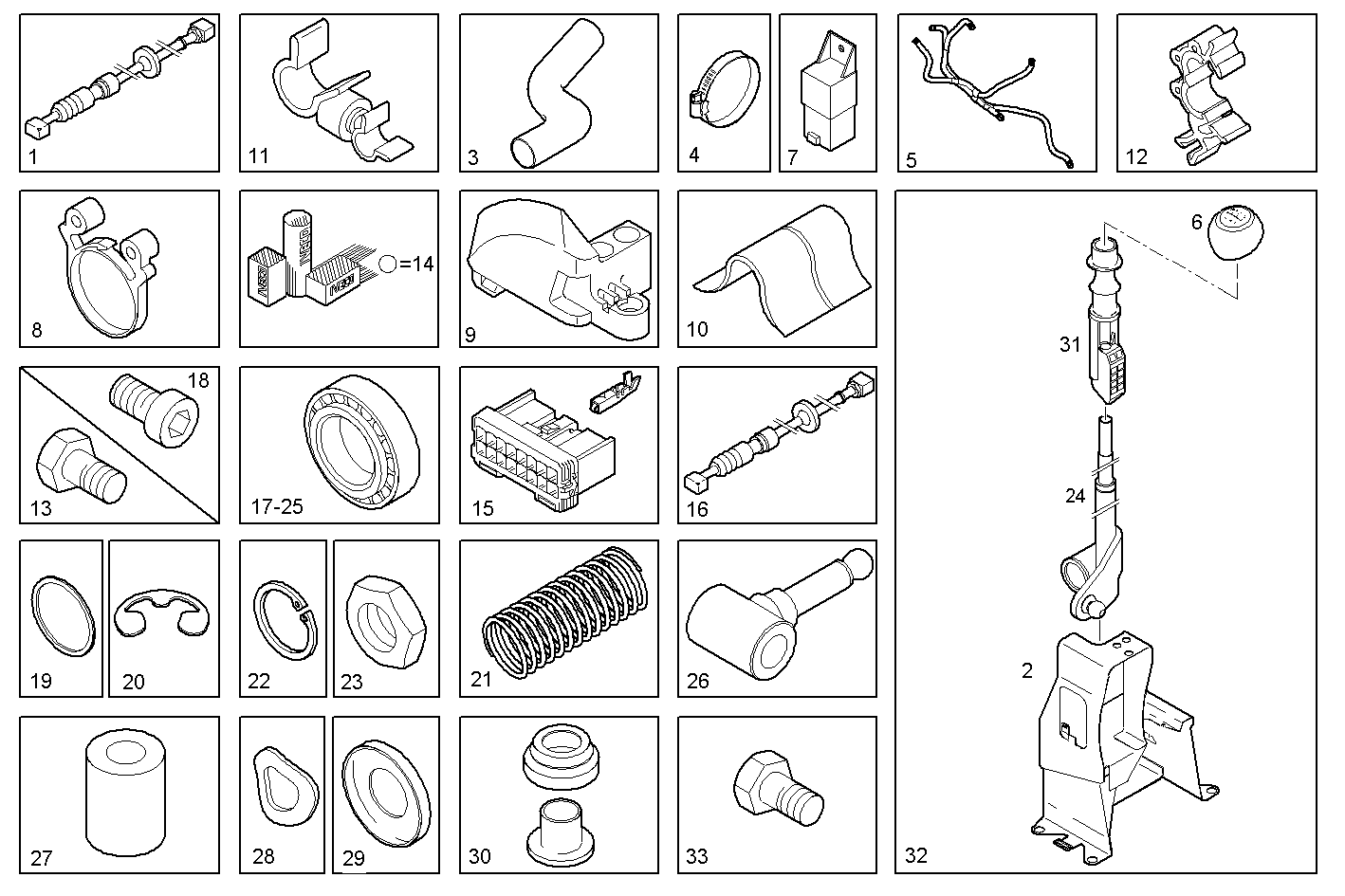

8600.329/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 500317509 | FLEXIBLE CONTROL |
| 2 | 504051513 | SUPPORT |
| 3 | 504300627 | RUBBER SLEEVE |
| 4 | 18088294 | CLIP |
| 5 | 504266136 | WATER PIPE |
| 6 | 504055407 | HANDLE BALL |
| 7 | 69500830 | ELECTR.CONTR.UNIT for Heather plug |
| 8 | 500317511 | SPRING CLAMP |
| 9 | 504050253 | SUPPORT |
| 10 | 504108950 | LINER |
| 11 | 500335308 | SPRING CLAMP |
| 12 | 504090386 | SPRING CLAMP |
| 13 | 16585870 | HEXAGON BOLT M6X20 |
| 14 | 500334937 | KIT-HYDRAULIC CLUTCH CYL. |
| 15 | 8046821 | WIRE CONNECTOR ASSY |
| 16 | 504034853 | FLEXIBLE CONTROL |
| 17 | 500317714 | ROLLER BEARING |
| 18 | 16687521 | SOCKET-HEAD SCREW |
| 19 | 17277981 | O-RING 1,78x9,25 |
| 20 | 17087676 | CIRCLIP |
| 21 | 504055068 | SPRING |
| 22 | 17852376 | SPRING LOCKWASHER |
| 23 | 17152721 | NUT M6 |
| 24 | 504051454 | SHIFT LEVER |
| 25 | 500317715 | ROLLER BEARING |
| 26 | 504040961 | PLUG-IN SLEEVE |
| 27 | 500317612 | SPACING BAR |
| 28 | 500317512 | CORRUGATED WASHER |
| 29 | 500317507 | BUSH |
| 30 | 504046933 | BUSH |
| 31 | 504050252 | RELEASE LEVER |
| 32 | 504060254 | GEARSHIFT LEVER ASSY |
| 33 | 16604534 | HEXAGON BOLT |
