S30ENT422.40A002

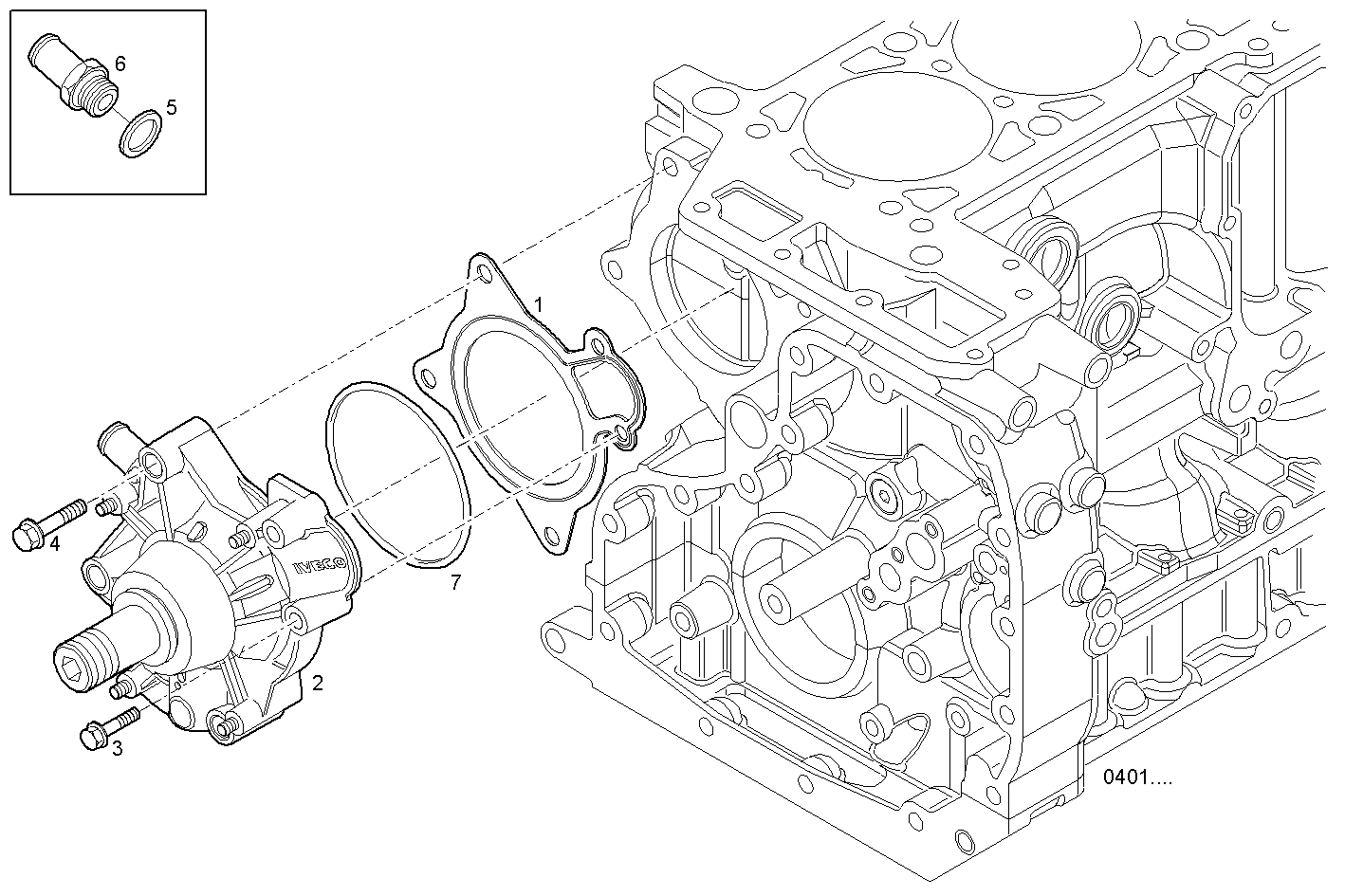

3201.014 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504080013 | FLAT ENGINE GASKET |
| 2 | 504113544 | WATER PUMP ASSY |
| 3 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 4 | 16587724 | HEXAGON BOLT M10X55 MM |
| 5 | 10263360 | SEAL GASKET 20x26x1 |
| 6 | 504037979 | SCREW CONNECTOR |
| 7 | 17285681 | O-RING Ø88,57 MM SP=2,62 MM |
